Jackery SolarSaga 500X Solar Panel | 500W High Power Output | IP68 Jackery SolarSaga 500X Solar Panel | 500W High Power Output | IP68
SKU: 21-0002-000093
- Warranty 5 Years
Jackery Solar Panel
Jackery SolarSaga 500X Solar Panel · 500W High Power Output · IP68

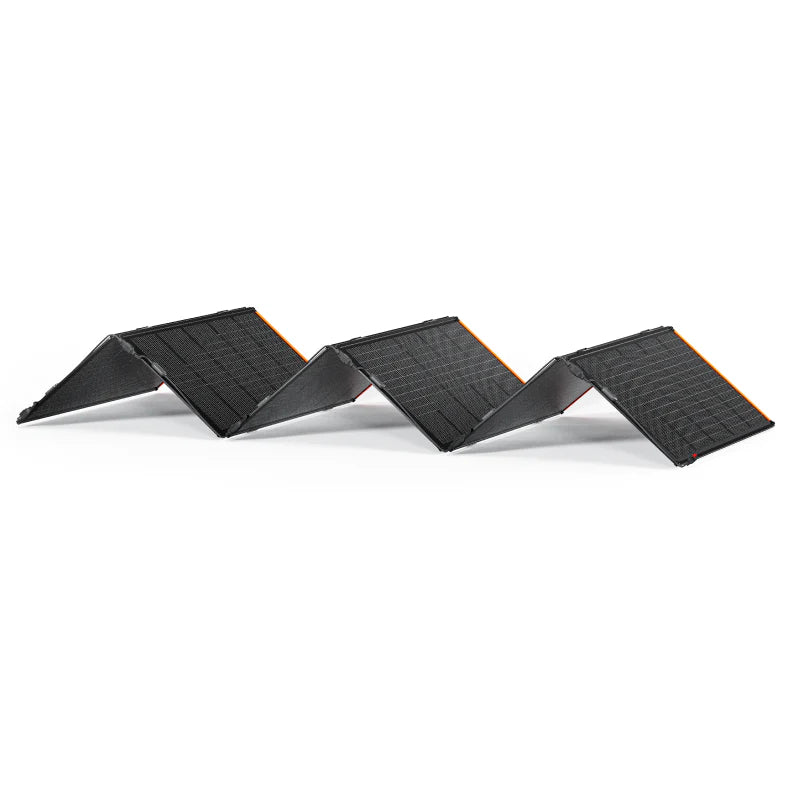

The Jackery SolarSaga 500 X is a foldable six-panel bifacial array rated 500W under standard test conditions. Its 545W figure is a separate bifacial test result with rear-side light, not guaranteed field output. It uses an Anderson connection and has an IP68 panel rating; check the station input and required cable before buying.
Why choose the SolarSaga 500 X?
This six-part foldable array serves buyers who need more solar collection area than a small portable panel while retaining a packable format. Rear-side gain depends on reflective surfaces and how the array is deployed.
- 500W ±5% front-side standard-test peak; 545W ±5% only under Jackery’s defined bifacial test conditions.
- Six-fold array with a 16.4 ft (5 m) cable; approximately 23.1 lb.
- IP68 panel rating and 5-year manufacturer warranty. Follow Jackery’s panel connection instructions; the six modules are configured in parallel, not series.
Best-fit use cases
For larger compatible Jackery stations and off-grid charging where there is room to deploy the six-panel array. Compare the station’s permitted solar voltage, current and connector with the complete array before use; output varies with sun and rear-side exposure.
What to check before buying
This is a 500W standard-test panel. The 545W figure uses front and rear illumination under Jackery’s bifacial test; it is not a promise of 545W in ordinary sunlight. Match the Anderson connection and array limits to the exact station.
Compare panel options
Our solar panel selection guide explains panel selection for different setups. The bifacial panel guide compares the relevant panel format; check this product’s electrical ratings before pairing it with other equipment.
Compare another option
Compare the Jackery SolarSaga 200W Solar Panel | IP68 Waterproof for a different mounting style or output. Check each panel’s connector, electrical ratings and station input before choosing.
| Jackery SolarSaga 500X Solar Panel / 500W High Power Output / IP68 | |
| Selected variant SKU | 21-0002-000093 |
|---|---|
| MODEL | |
| Model / SKU | 21-0002-000093 |
| Product Type | Solar Panel |
| ELECTRICAL | |
| STC Front-Side Peak Power | 500 W ±5% |
| BNPI Peak Power (front 1000 W/m² + rear 135 W/m²) | 545 W ±5% |
| Conversion Efficiency | 25% |
| BNPI Operating Voltage (Vmp) | 42.5 V ±5% |
| BNPI Operating Current (Imp) | 12.84 A ±5% |
| Open-Circuit Voltage | 49.2 V ±5% |
| Fold Design | Six-fold array |
| USB Outputs | Not included |
| Listed Solar Power | 500W |
| CONNECTIONS | |
| Main Connector | Anderson |
| PHYSICAL | |
| Cable Length | 16.4 ft (5 m) |
| Folded Dimensions | 39.2 × 20.7 × 3.8 in (996 × 526 × 97 mm) |
| Unfolded Dimensions | 98.1 × 39.2 × 11.6 in (2493 × 996 × 294 mm) |
| Weight | 23.1 lb ±1.1 lb (10.5 kg ±0.5 kg) |
| OPERATING LIMITS | |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Ingress Protection | IP68 |
| Warranty | 5 years |
| Maximum System Voltage | 90V DC |
| Maximum Reverse Current | 15A |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
