Rich Solar NOVA 6500S | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | Huge LCD Touchscreen with Ambient Lights | UL Certified Rich Solar NOVA 6500S | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | Huge LCD Touchscreen with Ambient Lights | UL Certified
SKU: RS-H6548S
- Efficiency (Line Mode) >95%
- Rated Output Power 6500VA/6500W
- Peak Efficiency 91%
Add what you need.
Start with your product. Choose the extras that suit your setup.

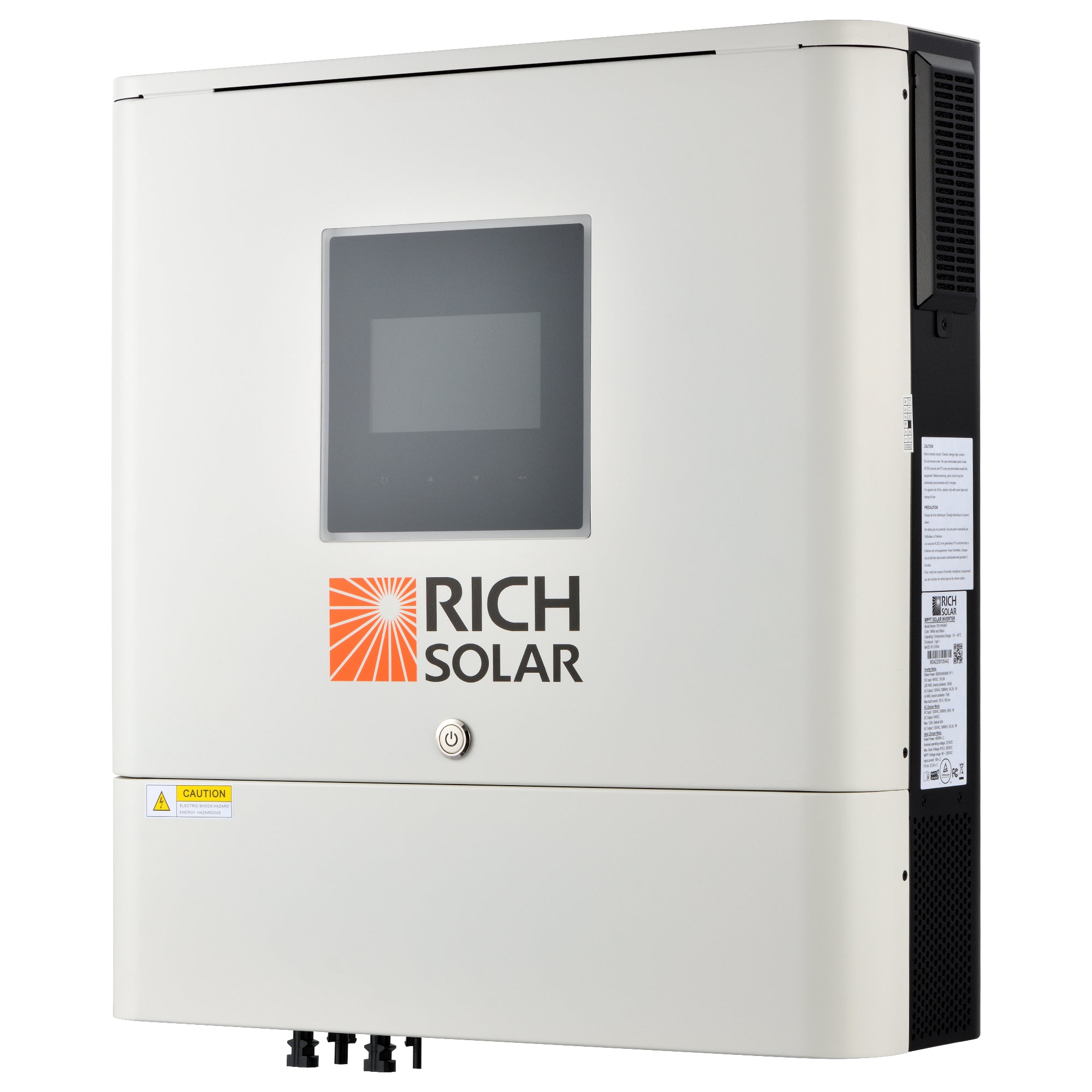

Rich Solar RS-H6548S NOVA 6500S 48V 6.5kW Off-Grid Hybrid Solar Inverter
The Rich Solar RS-H6548S NOVA 6500S is a 48V off-grid hybrid solar inverter built for serious solar, battery backup, and off-grid power systems. With pure sine wave output, built-in MPPT charging, Wi-Fi monitoring, flexible battery support, optional battery-free operation, and parallel expansion up to 6 units, it gives larger systems the power control and scalability needed for demanding applications.
Heavy Load Power
Delivers 6500W of continuous output with up to 13kW peak power for compatible high-demand appliances, tools, and off-grid loads.
MPPT Solar Charging
Built-in MPPT control helps maximize solar charging efficiency while supporting flexible solar and battery system design.
Smart Monitoring
Built-in Wi-Fi works with Android and iOS mobile monitoring through the Rich Solar app for real-time status, usage tracking, and data logging.
Battery Flexible Design
Supports battery-based systems and battery-independent operation for lighter loads when solar panel output is stable.
Product Overview
The Rich Solar RS-H6548S NOVA 6500S Hybrid Solar Inverter is designed for larger 48V off-grid solar systems, backup power installations, cabins, workshops, farms, remote buildings, and energy storage projects. It combines inverter output, MPPT solar charging, AC charging, generator or utility input, smart monitoring, and configurable power priorities in one advanced power platform.
With 6500W of continuous power and up to 13kW peak output, the NOVA 6500S is built for demanding loads while maintaining clean pure sine wave power for compatible appliances and electronics. For larger projects, up to 6 units can be operated in parallel for expanded output capacity in single-phase, split-phase, or 3-phase configurations.
The RS-H6548S also supports battery-independent operation for lighter loads when solar production is stable. When batteries are used, the inverter is compatible with multiple battery types and communication options, including AGM, Pylontech, WECO, Soltaro, LIB-Protocol, and third-party lithium batteries when properly configured.
Best Uses
- 48V off-grid solar power systems
- Home backup power and battery storage systems
- Cabins, sheds, workshops, farms, and remote buildings
- Generator-supported solar installations
- Systems using compatible lithium batteries with BMS communication
- Battery-independent solar operation for lighter loads
- Single-phase, split-phase, or 3-phase parallel inverter systems
Key Benefits
- Pure sine wave output for stable AC power
- UL certification for added confidence
- Status indication with RGB lights
- Built-in Wi-Fi for Android and iOS mobile monitoring
- Supports USB On-the-Go for data upload and download
- Data log events stored directly in the inverter
- Reserved BMS communication port for RS485, CAN-BUS, or RS232
- Replaceable fan design for easier maintenance
- Battery-independent design for flexible operation
- Compatible with utility mains or generator input
- Built-in anti-dust kit
- 6-unit parallel operation capability
Smart Control & System Monitoring
The NOVA 6500S is built for easier system control with built-in Wi-Fi, app-based monitoring, RGB status lights, USB On-the-Go support, and internal data logging. Users can monitor system performance, track power usage, and review inverter events through the Rich Solar monitoring app on compatible Android and iOS devices.
Adjustable settings allow the inverter to be configured around different power sources, battery types, and load priorities. Input voltage range, AC/PV output timers, charging current, and charging priority can be adjusted to match the needs of the installation.
Charging & Load Output Modes
The RS-H6548S supports multiple charging and load output modes, allowing the system to prioritize solar, utility, or battery power depending on the installation and user preferences.
Installation & Compatibility Note
This is a high-capacity inverter designed for advanced off-grid and backup power systems. System design should account for AC load requirements, solar array sizing, battery selection, wire sizing, overcurrent protection, grounding, ventilation, generator or utility input, and local code requirements.
Size the inverter
Our RV inverter sizing guide explains continuous watts, startup loads and battery-side demand before choosing an RV inverter.
Compare before you choose
Compare continuous AC output, battery voltage, surge behavior and PV or charger functions for the intended installation.
See the Rich Solar NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified for another RICH SOLAR inverter option.
| Specifications | |
| Selected variant SKU | RS-H6548S |
|---|---|
| Model | RS-H6548S |
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Input | |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery | |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Physical | |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Standard | |
| Compliance Safety | UL |
| Input Power | 8000W (4000W × 2) |
| Maximum PV Open Circuit Voltage | 550V DC |
| Maximum PV Input Current | 18A x 2 |
| Input Voltage Waveform | Sinusoidal (Utility or Generator) |
| Nominal Input Voltage | 120V AC |
| Maximum AC Input Voltage | 150V AC |
| Max AC Input Current | 60A |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) |
| Efficiency (Line Mode) | >95% |
| Rated Output Power | 6500VA/6500W |
| Output Voltage | 120V AC ±5% |
| Output Waveform | Pure Sine Wave |
| Peak Efficiency | 91% |
| Nominal DC Input Voltage | 48V DC |
| Bulk Charging Voltage | 58.4V DC (Flooded) / 56.4V DC (AGM / Gel) |
| Dimensions | 6.2 x 19.8 x 20.9 In |
| Maximum PV Input Power | 8000W (4000W x 2) |
| Battery type | To set connected battery type. |
| High Loss Voltage | 140Vac±7V |
| High Loss Return Voltage | 135Vac±7V |
| Max AC Input Voltage | 150Vac |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
