Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth 1 / 4
Renogy

Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth

SKU: RBT12100LFP-TM-BT-G2-US

Brand Renogy Out of Stock
$318.99 Out of Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Rated Capacity 100Ah (0.5C, 25℃)
  • Maximum Continuous Charge Current 100A
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth

Out of Stock
Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth
Quantity$318.99 each
1

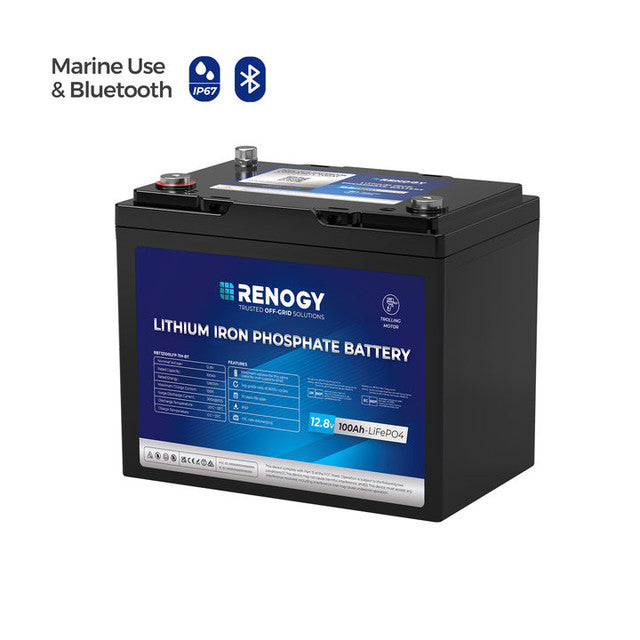

12V 100Ah Trolling Motor LiFePO4 Battery with Bluetooth

Portable lithium power developed for compatible trolling motor applications, with Bluetooth monitoring and dependable performance for time on the water.

Renogy 12V 100Ah trolling motor lithium battery

Inside the Renogy 12V 100Ah Trolling Motor Battery

Designed around lithium iron phosphate technology, this battery provides a compact energy storage solution for compatible marine and trolling motor power needs.

Renogy trolling motor lithium battery overview

Real Time Monitoring with Bluetooth 5.3

Connect through a compatible Renogy app setup to check supported battery information and monitor power status from your mobile device.

Bluetooth monitoring for trolling motor battery

Ready for Demanding Outdoor Environments

Built for marine use conditions, this lithium battery supports dependable portable power for fishing trips, boating and outdoor adventures.

Lithium trolling motor battery for outdoor marine use

Made for Compatible Trolling Motors

Designed specifically for trolling motor applications, the battery supports reliable energy delivery for compatible boating setups.

Battery designed for compatible trolling motor applications

Scalable Power for Flexible Setups

Build a compatible battery arrangement that matches your boating power needs while maintaining the flexibility of lithium energy storage.

Flexible trolling motor lithium battery system setup

Plan a lithium battery change

If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.

Compare a related option

Compare trolling-motor battery capacity, discharge limits and physical fit.

Renogy Core Mini 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery

Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth
Package Includes
1 Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth
User Manual
Package Includes
1 User Manual
Long Terminal Bolt
Package Includes
2 Long Terminal Bolt
Insulating Sleeve
Package Includes
2 Insulating Sleeve
Renogy Core 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery w/ Bluetooth
Selected variant SKU RBT12100LFP-TM-BT-G2-US
Electrical Specifications
Rated Capacity 100Ah (0.5C, 25℃)
Voltage 12V
Energy 1,280Wh
Cycle Life (0.5C/1C, 25℃) 5,000 Cycles (80% DOD)
Charging Parameters
Voltage Range 10.8V to 14.8V
Maximum Continuous Charge Current 100A
Discharging Parameters
Maximum Continuous Discharge Current 150A
Peak Discharge Current 300A @ 30s
Temperature Parameters
Operation Temperature Range Charge: 32°F to 131°F / 0°C to 55°C; Discharge: -4°F to 131°F / -20°C to 55°C
Storage Temperature Range 32°F to 113°F / 0°C to 45°C
Operation Relative Humidity 5% to 95%
Mechanical Specifications
Dimensions (L x W x H) 10.24 x 6.61 x 8.23 in / 260 x 168 x 209mm
Weight 21.83 lbs / 9.9kg
Terminal Bolt Size M8 x 1.25 x 12mm
Protection Rating IP67
Certifications
RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA Yes
Dimension (L x W x H) 10.24x6.61x8.23in/260x168×209 mm
。 Dimension tolerance ±0.2 in 〔0 扣 nm 〕
Trigger Battery Cell Voltage !! 3.75V {2s)
Recover Ba忧：ery Voltage i! 2.BV
T「igger Charge Current i! 120A (2畸
Recover Ba忧：ery Voltage i! 2.BV
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How do I know whether this 100Ah Renogy battery fits my trolling motor? Match the motor's required 12V nominal supply and maximum current, then account for breaker size, cable length, terminal hardware, and the desired hours at each speed. Thrust rating alone does not establish the battery current or runtime requirement. Is the trolling-motor battery suitable for starting a gasoline outboard engine? No. It is a deep-cycle battery for trolling motors and auxiliary DC loads, not a marine cranking battery. Engine starting requires a battery with an approved cranking rating and construction specified by the engine manufacturer. What can I check over Bluetooth while the trolling motor is running? The Renogy app can show supported values such as remaining charge, voltage, current, and BMS protection alerts. Treat the phone display as operating information; a physical breaker, disconnect, secure terminals, and correct cable sizing are still required. Can this lithium trolling battery be mounted where bilge water reaches the terminals? No. Marine-oriented protection does not make exposed high-current terminals safe to submerge. Install the battery upright and secured in a dry, ventilated location, cover the positive terminal, and protect cables from salt, abrasion, vibration, and standing water. How long will a 100Ah battery run my specific trolling motor? Runtime depends on the motor's measured current at the selected speed, wind and current, hull weight, propeller condition, wiring loss, battery temperature, and reserve margin. Divide usable amp-hours by actual average amps for a planning estimate, then retain a safe return reserve.
