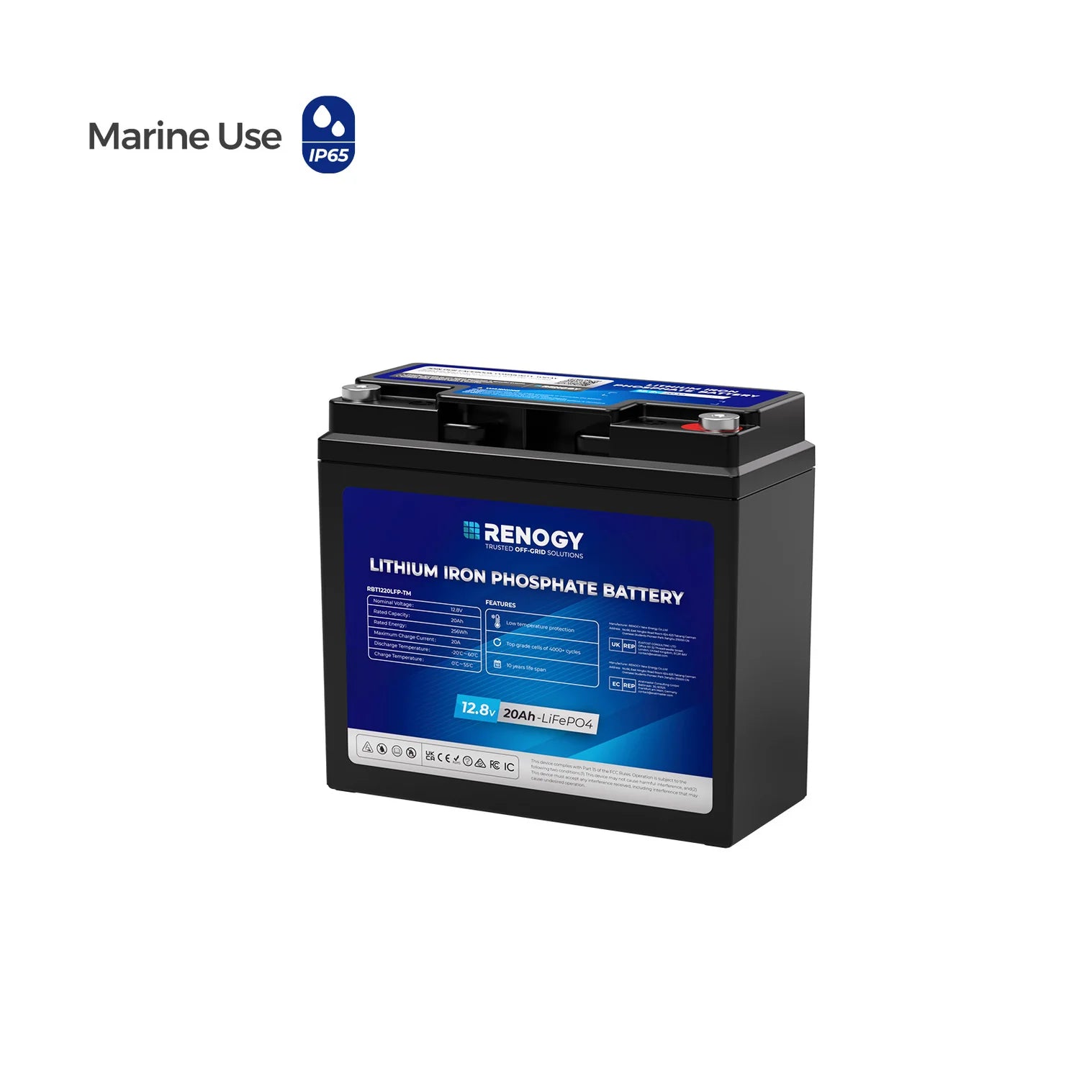

Renogy Core Mini 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery
12V 20Ah Trolling Motor LiFePO4 Battery | Core Series
Lightweight lithium power for compatible trolling motors, portable radio equipment and mobility applications, built for dependable performance in outdoor environments.
Navigate Inland and Coastal Waters with Confidence
At approximately half the weight of a comparable lead-acid battery, this 12V 20Ah LiFePO4 battery is designed to resist splashes, dust and corrosion for dependable compatible marine use.
Power Mobility Equipment for Longer Trips
Compared with traditional lead-acid battery capacity, the lithium design provides increased usable capacity per charge to help compatible mobility equipment travel farther between recharges.
Portable Lithium Power for Radio Equipment
Designed for mobile ham radio and portable communication setups, this compact battery delivers reliable energy storage with a significantly longer cycle-life comparison than lead-acid alternatives shown by Renogy.
```
| Renogy Core Mini 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery | |
| Model SKU | RBT1220LFP-TM-G1-US |
|---|---|
| Electrical Specifications | |
| Rated Capacity | 20Ah (0.5C, 25℃) |
| Voltage | 12V |
| Energy | 256Wh |
| Cycle Life (0.5C, 25℃) | 4,000 Cycles (80% DOD) |
| Charging Parameters | |
| Voltage Range | 10V to 14.8V |
| Maximum Continuous Charge Current | 20A |
| Discharging Parameters | |
| Maximum Continuous Discharge Current | 20A |
| Peak Discharge Current | 75A @ 5s |
| Temperature Parameters | |
| Operation Temperature Range | Charge: 32°F to 131°F / 0°C to 55°C; Discharge: -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Operation Relative Humidity | 10% to 95% |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 7.13 x 3.03 x 6.61 in / 181 x 77 x 168mm |
| Weight | 5.95 lbs / 2.7kg |
| Terminal Bolt Size | M6 x 1.25 x 10mm |
| Protection Rating | IP65 |
| Certifications | |
| MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5 Year |
