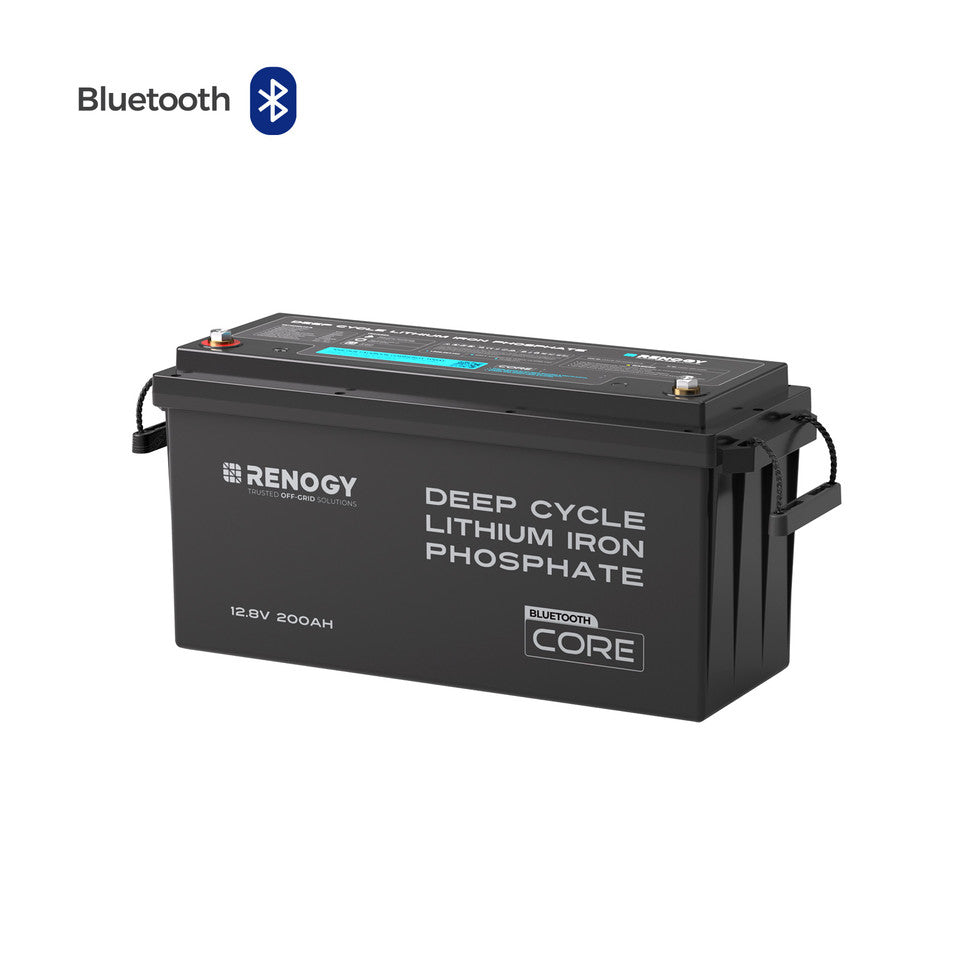

Renogy Core 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
Core 12V 200Ah Lithium Iron Phosphate Battery with Bluetooth
High capacity lithium battery storage for RV, camper, marine and off grid systems, featuring Bluetooth monitoring and flexible system expansion options.
Check Compatibility Before Installation
Confirm that your charging equipment and power system are compatible with the battery before completing installation.
Take a Closer Look at Core Lithium Power
Designed for everyday energy storage, this 200Ah Core battery combines lithium performance with smart Bluetooth access in a practical battery form factor.
Core Battery Advantages
The live Renogy description compares the Core 200Ah battery with other LiFePO4 options, highlighting its smart monitoring and mobile power focused design.
Real Time Power Information at Your Fingertips
Bluetooth connectivity lets you review supported battery information through a compatible Renogy app setup, helping you stay informed about your stored power.
Extra Capacity for More Possibilities
With 200Ah of lithium battery capacity, this Core battery is designed to support compatible RV, travel and off grid electrical needs for longer adventures.
Powerful to the Core
Engineered with lithium iron phosphate battery cells, the Core Series is built for dependable energy storage in compatible deep cycle applications.
Year Round Charging Protection
Integrated battery safeguards help support operation across changing seasonal conditions and common charging environments.
Protection for Travel and Rough Roads
Built for mobile power use, the battery housing is designed to withstand the movement and vibration encountered during RV and outdoor travel.
Connect in Series for Compatible Higher Voltage Systems
Use the battery in supported series arrangements when building a compatible higher voltage energy storage system.
Connect in Parallel for Compatible Capacity Expansion
Parallel connection options help increase available battery capacity in supported system designs.
Series Parallel Configuration Options
For compatible larger energy systems, the battery may be arranged using supported series parallel configurations shown in the live product description.
| Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery w/ Bluetooth | |
| Model SKU | RBT12200LFP-B-G1-US |
|---|---|
| Electrical Specifications | |
| Rated Capacity | 200Ah (0.5C, 25℃) |
| Voltage | 12V |
| Energy | 2,560Wh |
| Cycle Life (0.5C/1C, 25℃) | 5,000 Cycles (80% DOD, 80% EOL) |
| Voltage Range | 10V to 14.8V |
| Charging Parameters | |
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Discharging Parameters | |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 400A @ 10s |
| Temperature Parameters | |
| Operation Temperature Range | Charge: 32°F to 122°F / 0°C to 50°C; Discharge: -4°F to 131°F / -20°C to 55°C |
| Storage Temperature Range | -4°F to 149°F / -20°C to 65°C |
| Operation Relative Humidity | 10% to 95% |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 19.76 x 7.36 x 9.53 in / 502 x 187 x 242mm |
| Weight | 44.53 lbs / 20.2kg |
| Terminal Bolt Size | M8 x 1.25 x 15mm |
| Protection Rating | IP65 |
| Certifications | |
| MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5-Year Prorated |
