Renogy Core 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating - 1 Battery Renogy Core 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
SKU: RBT12300LFPSH-G2-US
Self-Heating Core Series Power

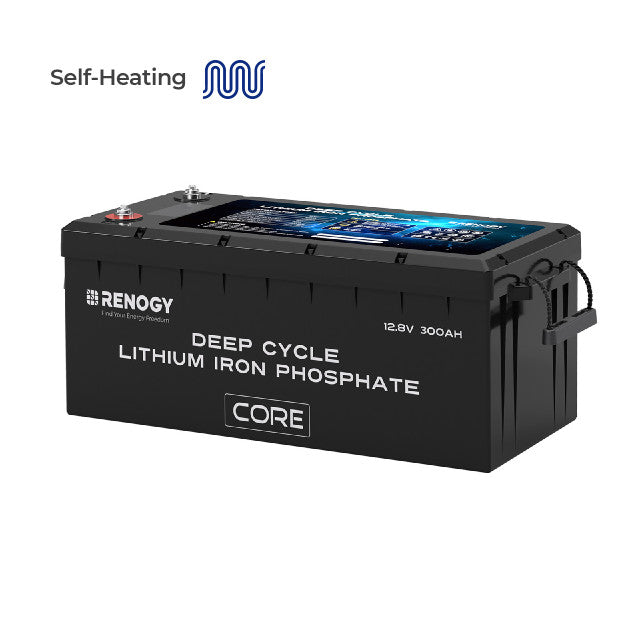

12V 300Ah Core Series LiFePO4 Battery with Self-Heating
This Renogy Core battery stores 3.84kWh at its 12.8V, 300Ah rating. Self-heating and low-temperature charge protection support suitable cold-weather installations; its 200A charge and discharge limits still need to be matched to the rest of the system.
Compatibility Note from Renogy
Check the generation and exact model label before adding this battery to an existing bank. Use only the matching battery combinations and wiring arrangement permitted by Renogy for that generation.
Compatibility Reference
Use the comparison image below as an identification aid, then confirm the exact model and generation printed on your battery label before combining units.
All-Weather Core Series Energy Storage
The 300Ah Core model combines LiFePO4 chemistry, self-heating, low-temperature cut-off and an IP65 protection rating. Confirm the battery’s charge-temperature range against your winter charging conditions.
Core Series Compared with Lead-Acid
Renogy compares power, weight and expected service-life benefits against the illustrated lead-acid configuration.
Core Series Compared with Other LiFePO4 Designs
The comparison highlights self-heating and low-temperature protection. Series or parallel expansion requires matching batteries, correct protection and the model-specific Renogy wiring instructions.
More Power in a Similar Footprint
Renogy presents the 300Ah Core battery as offering greater capacity than the same-sized 200Ah lithium comparison shown.
Powerful to the Core
Renogy rates this Core battery for 5,000 cycles at 80% depth of discharge under its stated test conditions.
Self-Heating for Cold Conditions
Built-in heating support and low-temperature protection help prepare the battery for charging in colder environments.
Protection Against Bumps
The battery construction is presented for resistance to vibration and impact in mobile installations.
Power for RV Journeys
Renogy illustrates compatible RV appliance support using multiple batteries in a configured system.
Power for Cabin Getaways
A series-connected cabin bank needs matched battery generations, a compatible charge system and the wiring limits in Renogy’s manual.
Marine Energy Storage Application
Renogy illustrates a high-capacity marine configuration for compatible electrical loads on the water.
Plan a lithium battery change
If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.
Compare a related option
Compare usable capacity, BMS limits, heating and monitoring features before choosing a Core battery.
Renogy Core 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
| Core Series - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery | |
| Selected variant SKU | RBT12300LFPSH-G2-US |
|---|---|
| Specifications | |
| Battery Type | Lithium Iron Phosphate |
| Voltage | 12V |
| Rated Capacity | 300Ah (0.5C, 25℃) |
| Charge Voltage | 14.4V |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Cycle Life (0.5C/1C, 25℃) | 5,000 Cycles (80% DOD) |
| Charge Temperature Range | -4°F to 131°F / -20°C to 55°C |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -13°F to 149°F / -25°C to 65°C |
| Operation Relative Humidity | 10% to 95% |
| Connection Method | Series; Parallel; Series & Parallel |
| Protection Rating | IP65 |
| Dimensions | 20.55 x 9.45 x 8.62 in / 522 x 240 x 219mm |
| Weight | 60.63 lbs / 27.5kg |
| Certifications | |
| MSDS, UN38.3, FCC, CE, PSE, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5-Year Prorated |
