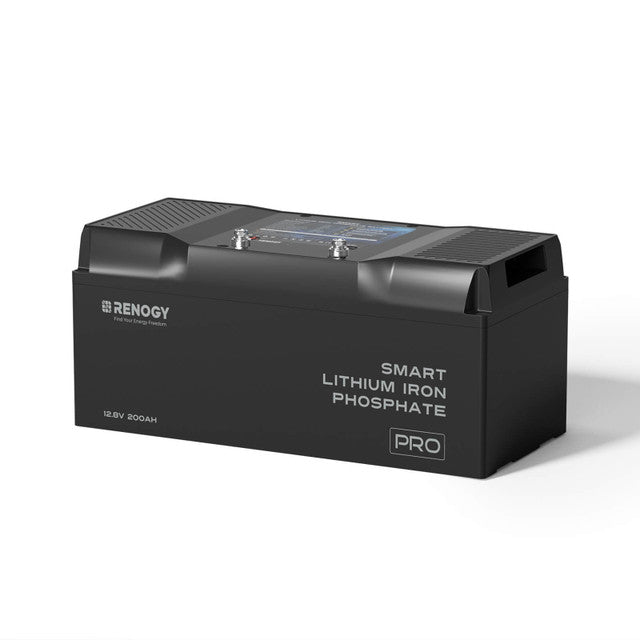

Renogy PRO 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self Heating - 1 Battery Renogy PRO 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self Heating
SKU: RBT12200LFP-BT-G1-US
Pro Series Smart Lithium Power
12V 200Ah Smart LiFePO4 Battery with Bluetooth and Self-Heating
Support demanding off-grid, overland and marine power systems with a 200Ah Pro Series LiFePO4 battery featuring Bluetooth monitoring, self-heating and layered battery protection.
Smart Monitoring
Bluetooth support helps keep battery information accessible through compatible Renogy monitoring.
Self-Heating
Designed for charging readiness during colder travel and outdoor conditions.
Pro-Level Protection
The Description highlights layered safety systems for mobile energy storage.
Choose Your Application
The Renogy Description includes interactive application choices. They are retained here as isolated native expandable panels so they remain interactive without replacing or interfering with the store's product-page tabs.
Campervan / Sheds
The 200Ah Pro configuration is presented for campervan, off-grid and workshop-style energy storage.
Catamaran / Fifth Wheel
Build higher-capacity mobile or marine storage configurations for larger off-grid energy demands.
4x4 Off-Road Trips
Take compact smart lithium storage into overland setups for compatible off-road power needs.
Discover Pro-Level Safety
Renogy presents the Pro Series battery with flame-resistant casing, Bluetooth monitoring, OTA update support, self-heating protection and IP67 protection.
Added Comfort in Your 4WD
At 12.8V and 200Ah, the battery’s nominal energy is 2,560Wh; actual appliance runtime depends on usable capacity and the connected load.
Primary Safety Protection
Renogy identifies an EV-grade battery-management protection design intended for demanding temperature and mobile-use conditions.
Active Backup Protection
The illustrated backup-protection system is designed to respond quickly when hazardous electrical conditions occur.
Cold-Weather Self-Heating
Self-heating is designed to support safer charging readiness in cold travel conditions without requiring external heating equipment.
Designed for Heat Exposure
The casing and temperature-sensor monitoring are designed for demanding mobile use; follow the stated temperature and mounting limits.
Over-the-Air Updating
Bluetooth-connected update support helps keep compatible battery firmware current through Renogy's supported app workflow.
Long-Life Cell Performance
The in-description product image identifies 5,000 cycles at 80% depth of discharge and a 270A output rating for the 200Ah Pro battery.
Certified Battery Safety
Review the certification marks and product documentation below when checking this battery against the requirements of your installation.
Off-Road System Connection Example
The verified in-description diagram illustrates the battery within a compatible solar, controller and inverter system arrangement.
Plan a lithium battery change
If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.
Compare this Renogy model
12.8V, 200Ah, 200A continuous discharge. Check BMS current, temperature and charging settings.
Compare Renogy Core 12V 200Ah battery by electrical ratings, dimensions, features and selected pack quantity before ordering.
| Pro - Renogy 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self-Heating | |
| Selected variant SKU | RBT12200LFP-BT-G1-US |
|---|---|
| Specifications | |
| Battery Type | Lithium Iron Phosphate |
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.8V |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Peak Discharge Current | 270A @ 30s |
| Cycle Life (0.5C, 25℃) | 5,000 Cycles (80% DOD, 80% EOL) |
| Charge Temperature Range | -4°F to 131°F / -20°C to 55°C |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -13°F to 149°F / -25°C to 65°C |
| Operation Relative Humidity | 10% to 95% |
| Connection Method | Parallel (Up to 8) |
| Communication Protocol | Bluetooth |
| Terminal Bolt | M8 x 1.25 x 12mm |
| Long Terminal Bolt | M8 x 1.25 x 16mm |
| Recommended Terminal Torque | 70.8 in-lb / 8 N·m |
| Housing Material | PC/ABS |
| Protection Rating | IP67 |
| Flame Retardant | UL94 V-0 |
| Dimensions | 18.4 x 8.4 x 8.2 in / 467 x 212 x 208mm |
| Weight | 50.7 lbs / 23kg |
| Accessories | |
| Terminal Bolts (2) | 2 x M8 x 1.25 x 12mm |
| Long Terminal Bolts (2) | 2 x M8 x 1.25 x 16mm |
| Certifications | |
| UL, MSDS, UN38.3, FCC, CE, PSE, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 7-Year Prorated |
Product reference specifications
Specifications for the selected option are shown above. These product reference details describe the listing and its available configurations.
| Renogy PRO 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self Heating | |
| MODEL | |
| Model / SKU | RBT12200LFP-BT-G1-US, RBT12200LFP-BT-W02W-US, RBT12200LFP-BTx2-US, RBT12200LFP-BTx4-US |
|---|---|
| Product Type | Battery |
| Available Variants | 1 Battery; 1 Battery + ONE Core; 2 Batteries; 4 Batteries |
| ELECTRICAL | |
| Battery Cell Type | Lithium Iron Phosphate |
| Rated Capacity | (0.5C, 25°C) 200Ah |
| Nominal Voltage | 12.8V |
| Voltage Range | 10V to 14.8V |
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 270A@30s |
| Listed Capacity | 200Ah |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Terminal Bolt | M8 x 1.25 x 12 mm |
| Recommended Terminal Torque | 70.8 inch·lbs / 8 N·m |
| PHYSICAL | |
| Dimension | 18.4 x 8.4 x 8.2 in / 467 x 212 x 208 mm |
| Weight | 50.7 lbs. / 23 kg |
| Terminal Bolt Size | Terminal Bolt: M8 x 1.25 x 12 mm |
| OPERATING LIMITS | |
| Cycle Life (0.5C, 25°C) | 5000 Cycles (80% DOD) |
| Protection Rating | IP67 |
| Certification | MSDS, UN38.3, FCC, CE, PSE, and UKCA |
| Charge Temperature Range | -4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -13°F to 149°F (-25°C to 65°C) |
| Operation Relative Humidity | 10% to 95% |
