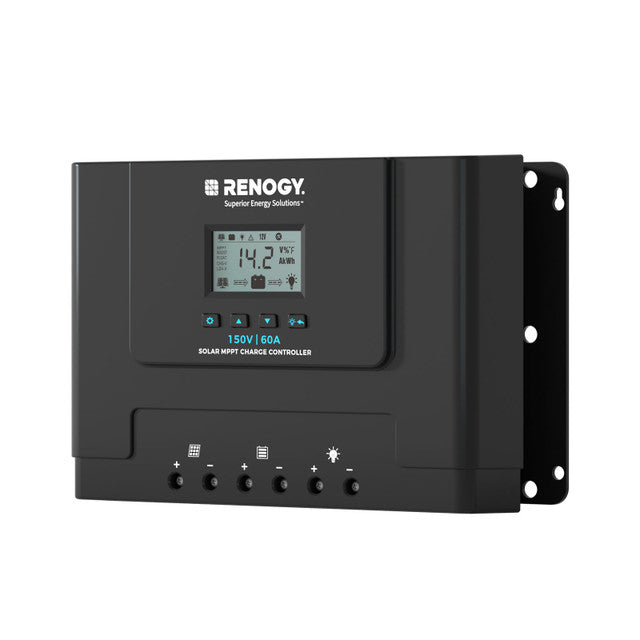

Renogy Rover Lite 12/24/36/48V 60A MPPT Solar Charge Controller
Rover Lite MPPT Charging
Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller
Manage compatible higher-voltage solar charging with a Rover Lite controller designed for efficient energy collection, reduced self-consumption and stable operation.
High-Voltage Solar Control
The Rover Lite Description highlights 150V PV input support, low-temperature protection and high-temperature operation for compatible battery systems.
Superior Heat Dissipation
Heat-resistant materials and an alloy heat-sink design help transfer operating heat away from the controller.
Maximize Efficiency with Exceptional Value
Renogy states 99% MPPT tracking efficiency and 97% conversion efficiency in the product Description.
Lower Self-Consumption
The controller is presented as using less stored energy during operation than the illustrated comparison design.
Store Up to Two Years of Data
With the supported BT-2 module, view compatible historical data and system information through Renogy monitoring.
Simple Controls and Clear Information
On-device indicators show relevant solar, battery, load and charging information at a glance.
Stable Performance in Changing Temperatures
The source Description presents dependable operation through demanding temperature conditions with lithium low-temperature protection support.
| Renogy Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller | |
| Model SKU | RCC60RVRE-G1-US |
|---|---|
| General Specifications | |
| Grounding | Common Negative |
| Communication | RS485 |
| Operating Temperature | -31°F to 113°F (-35°C to 65°C) |
| Storage Temperature | -40°F to 176°F (-40°C to 80°C) |
| Humidity | 0% to 95% RH |
| Cooling | Heat Sink |
| Enclosure Rating | IP32 |
| Dimensions | 12.01 × 8.07 × 3.90 in (305 × 205 × 99 mm) |
| Weight | 7.71 lb (3.5 kg) |
| Certifications | FCC Part 15 Class B, CE, RoHS |
| Charging Specifications | |
| System Voltage | 12V / 24V / 36V / 48V DC (Auto Recognition, Non-Lithium) |
| Battery Input Voltage Range | 9V to 64V DC |
| Rated Charge Current | 60A |
| Maximum Solar Input Voltage (Voc) | 150V DC |
| Maximum Solar Input Power (12V Battery) | 900W |
| Maximum Solar Input Power (24V Battery) | 1800W |
| Maximum Solar Input Power (36V Battery) | 2000W |
| Maximum Solar Input Power (48V Battery) | 3200W |
| Power Consumption (12V Battery) | <15mA |
| Power Consumption (24V Battery) | <11mA |
| Power Consumption (36V Battery) | <8mA |
| Power Consumption (48V Battery) | <7mA |
| MPPT Tracking Efficiency | >99% |
| Conversion Efficiency | >97% |
| Temperature Compensation (Non-Lithium) | -3mV/°C/2V |
| Temperature Compensation (Lithium) | 0mV/°C/2V (No Compensation) |
| Charging Profiles | |
| Lead Acid Charging Algorithm | 3-Stage (Bulk, Boost, Float) + Equalize |
| Lithium Charging Algorithm | 2-Stage (Bulk, Boost) |
| Battery Presets | AGM, Gel, Flooded, Lithium Iron Phosphate, User Custom |
| Warranty | |
| Warranty | 2-Year Material and Workmanship Warranty |
