RUiXU Battery

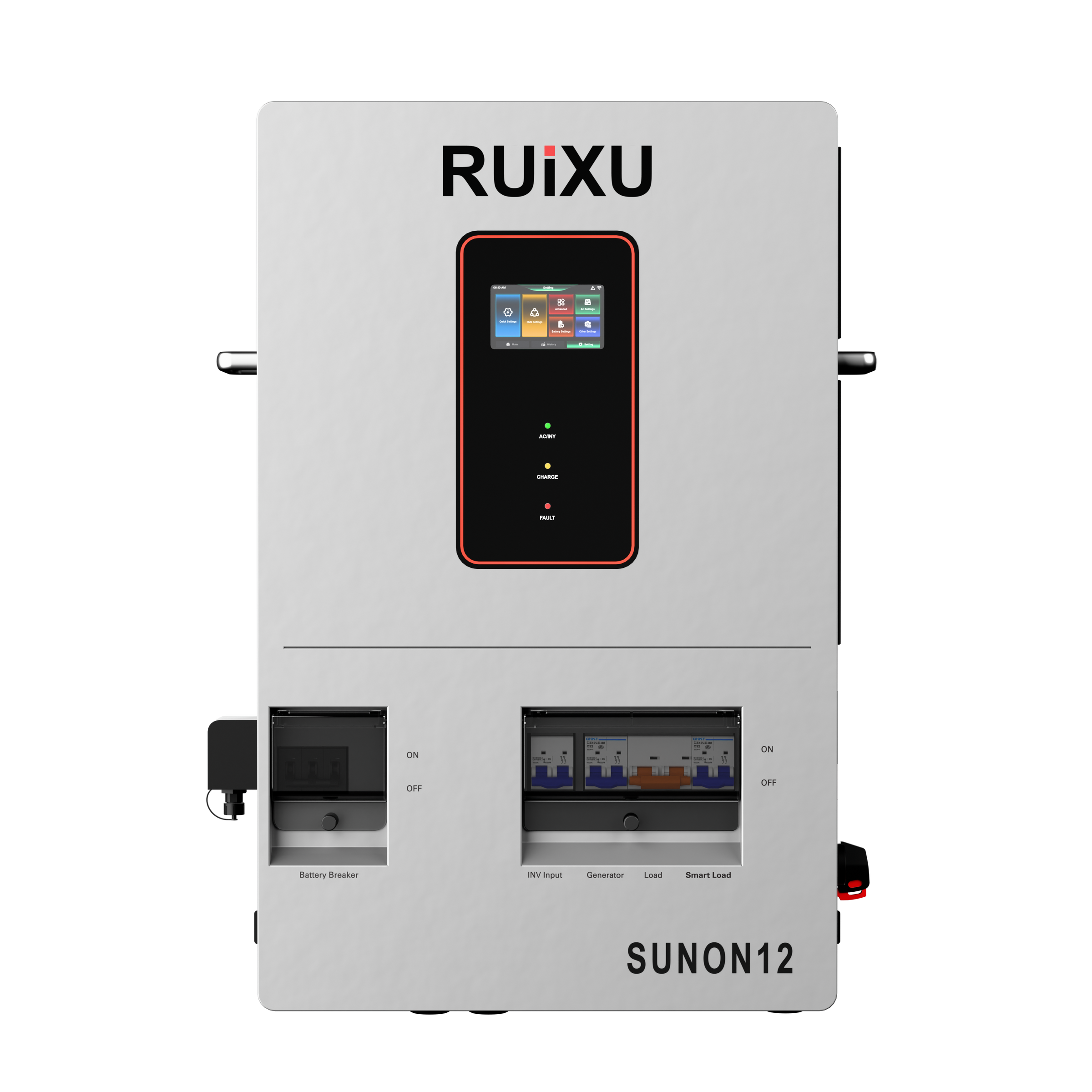

RUiXU SUNON12 Single/Split-Phase All-In-One Off-Grid Inverter - 12kW 120/240Vac RUiXU SUNON12 Single/Split-Phase All-In-One Off-Grid Inverter - 12kW 120/240Vac
SKU: SUNON12
$1,859.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRUiXU Battery warranty
Key features
- Weight 84.88lb(38.5kg)±3%
- Max Charge Current Default 60A; Setting range: 0–250A.
- Max AC Charge Current Default 120A; Setting range: 0–160A.
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
RUiXU SUNON12 Single/Split-Phase All-In-One Off-Grid Inverter - 12kW 120/240Vac
The RUiXU SUNON12 is a 12kW all-in-one off-grid inverter for 48V battery systems with 120/240V output and hybrid solar charging support.
Key Features
- 12kW single/split-phase all-in-one inverter
- 120/240Vac output for larger backup systems
- Dual MPPT solar input design
- Parallel-capable up to six units
- WiFi and app integration
Specifications
| Brand | RUiXU |
| Model | SUNON12 |
| Product Type | Single/Split-Phase All-In-One Off-Grid Inverter |
| Output | 12kW 120/240Vac |
| Battery Compatibility | 48V battery systems |
| Certification | UL1741 |
| Output Voltage | 120/240Vac |
| Charging Current | Up to 250A / supports 150A charging mode |
| Parallel Support | Up to 6 units / 72kW total |
| MPPT | Dual MPPT |
SUNON12 · Buyer decision facts
RUiXU SUNON12 | 12kW 48V Off-Grid Inverter
The SUNON12 supplies 12,000W rated AC output for an off-grid 48V battery system, with 120/240V split-phase capability. It is a different inverter class from the grid-interactive RX-12K hybrid.
Its two MPPTs list up to 12kW PV each, with a 500V open-circuit ceiling and 32A per input. Size strings from cold-corrected Voc and check the 40–60V battery range, BMS current, and generator or transfer wiring.
For a smaller off-grid system, compare the SUNON7.2; for hybrid use, see the RX-12K.
SUNON12: what to check before installation
SUNON12 has 12,000W rated AC output for an off-grid 48V-class battery system. Its two MPPT inputs each list up to 12kW PV power and 32A input current, with a 500V maximum PV open-circuit voltage. Its IP20 enclosure is for indoor installation. Do not treat the 24kW combined PV input figure as AC output.
What RUiXU lists in the standard package
- SUNON12 inverter
- 200 cm CAT6 battery communication cable
- Operation manual
Manufacturer documents
Manufacturer specification sheet (PDF) · Manufacturer user manual (PDF)
Common questions
Can it export to the grid? SUNON12 is RUiXU’s off-grid model. For a grid-interactive installation, review the RX-12K hybrid inverter and local interconnection requirements.
Can I connect any two 12kW arrays? No. Each MPPT also has a 32A input limit and 500V maximum open-circuit voltage; string design must follow the manual and cold-weather correction.
Package Includes
1 SUNON12 12kW Inverter
Package Includes
1 CAT6 Battery Communication Cable (200cm)
Package Includes
1 Operation Manual
Package Includes
1 Wi-Fi Dongle
| RUiXU SUNON12 Single/Split-Phase All-In-One Off-Grid Inverter - 12kW 120/240Vac | |
| Selected variant SKU | SUNON12 |
|---|---|
| MODEL | |
| Model | SUNON12 |
| Product Type | Single/split-phase all-in-one off-grid inverter |
| ELECTRICAL | |
| Rated Output Power | 12,000 W |
| Rated Output Voltage | 120/240 V AC, single-phase or split-phase |
| Motor Load Capacity | 6 hp |
| Rated Frequency | 50/60 Hz |
| Output Waveform | Pure sine wave |
| Bypass Overload Current | 125 A |
| Smart-Load Overload Current | 63 A |
| Transfer Time | 10 ms typical |
| Battery Types | Lithium-ion, lead-acid, or user-defined |
| Rated Battery Voltage | 48 V |
| Battery Voltage Range | 40-60 V DC |
| Maximum Solar Charging Current | 250 A |
| Maximum Grid / Generator Charging Current | 160 A |
| Maximum Mixed Charging Current | 250 A |
| Number of MPPTs | 2 |
| Maximum PV Input Power | 12,000 W + 12,000 W |
| Maximum PV Input Current | 32 A + 32 A |
| Maximum PV Open-Circuit Voltage | 500 V DC |
| PV MPPT Voltage Range | 90-450 V DC |
| Grid Input Voltage | 120 V L1/N and L2/N or 240 V L1/L2 |
| Grid Input Phase Voltage Range | 85-140 V AC ±2% |
| Grid Input Frequency | 50/60 Hz |
| Generator Input Voltage | 120 V L1/N and L2/N or 240 V L1/L2 |
| Generator Input Phase Voltage Range | 85-140 V AC ±2% |
| Generator Overload Current | 63 A |
| MPPT Tracking Efficiency | 99.9% |
| Maximum Efficiency | 91% |
| Parallel Capacity | 1-6 units |
| Integrated Circuit Breakers | Inverter input, generator, load, smart load, battery, and PV |
| Battery Compatibility | 48V battery systems |
| PV / MPPT | Dual MPPT |
| Charging Current | Up to 250A; supports 150A charging mode |
| System Application | Off-grid power |
| Design | All-in-one solar charge inverter |
| CONNECTIONS | |
| Communication | RS485, CAN, USB, and dry contact |
| Parallel Support | Up to 6 units / 72kW total |
| PHYSICAL | |
| Dimensions | 27.95 × 19.09 × 6.10 in (710 × 485 × 155 mm) |
| Weight | 84.88 lb (38.5 kg) |
| OPERATING LIMITS | |
| Certification | FCC Part 15 Class B and UL 1741 |
| Protection Rating | IP20; indoor use only |
| Operating Temperature | -10°C to 55°C; derates above 45°C |
| Warranty | 5 years |
| PACKAGE | |
| Included Components | 1 × SUNON12 12kW Inverter, 1 × CAT6 Battery Communication Cable (200cm), 1 × Operation Manual, 1 × Wi-Fi Dongle |
| Bypass Overload Current Load | 125A,smart Load 60A |
| Adjustable output voltage | 100 VAC, 105 VAC, 110 VAC, 115 VAC, 120 VAC, or 127 VAC. |
| Operating Temperature and Humidity | 14°F to 131°F (-10°C to 55°C), 5% to 95% RH |
| Maximum Installation Altitude | Up to 6,562 ft (2,000 m) |
| Open-circuit voltage (Voc) | 41.02 VDC |
| Maximum power voltage (Vmp) | 33.72 VDC |
| Maximum power current (Imp) | 13.05 A |
| Max Charge Current | Default 60A; Setting range: 0–250A. |
| Max AC Charge Current | Default 120A; Setting range: 0–160A. |
| Gen Charge Current | Default 60A; Setting range: 0–160A. |
| Slot 1–3 Start Charging Time | Range: 00:00–23:59. |
| Slot 1–3 End Charging Time | Range: 00:00–23:59. |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What type of system is the RUiXU SUNON12 designed for?
It is a single/split-phase all-in-one off-grid inverter for 48V battery systems, with 12kW, 120/240V AC output. It requires a complete code-compliant battery, solar, grounding, disconnect, and overcurrent-protection design.
How much AC output does the SUNON12 provide?
The listed output is 12kW, 120/240V AC. Confirm continuous, surge, phase, neutral, load-balance, and environmental limits in the current manual before sizing loads.
What solar charging hardware is built into the SUNON12?
The product data lists Dual MPPT. Array string voltage, cold-weather open-circuit voltage, current, grounding, rapid shutdown, and conductor sizing must match the exact MPPT limits.
Can the SUNON12 communicate with any 48V battery?
No. Verify closed-loop protocol compatibility, firmware, communication cable, BMS settings, charge/discharge limits, and supported battery quantity for the exact battery model.
Is the SUNON12 a grid-interactive inverter?
The SUNON model is presented as an off-grid inverter. Do not assume utility-export approval from an inverter certification alone; verify the exact listing and permitted operating mode for the installation.
Should this inverter be professionally installed?
Yes. High-voltage PV, battery fault current, split-phase AC wiring, neutral/ground bonding, disconnects, and code compliance require qualified system design and installation.
How long should I allow for slot 1–3 start charging on the RUiXU Battery SUNON12?
The manufacturer lists Range: 00:00–23:59. for slot 1–3 start charging time. This timing applies to the stated charging method and conditions.
