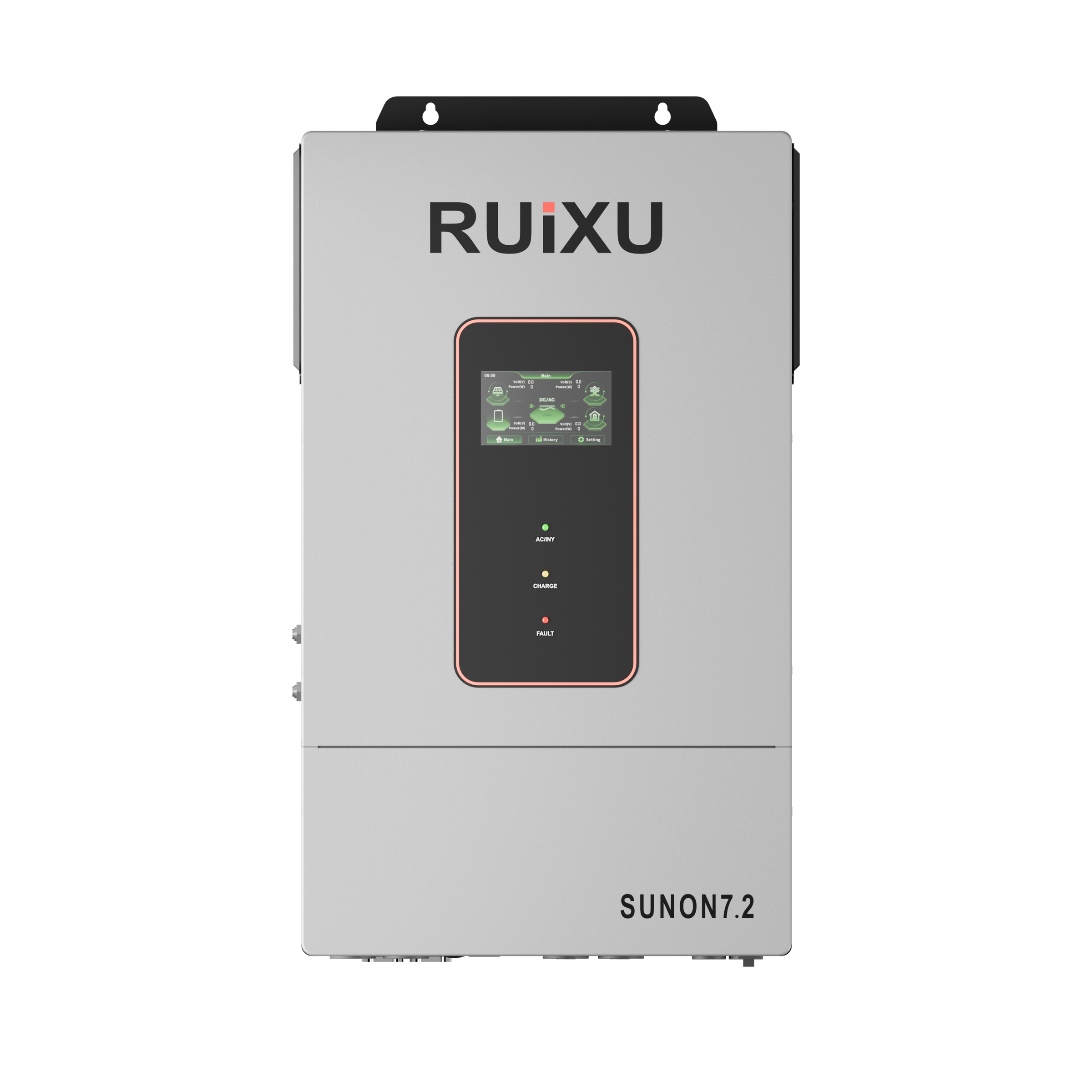

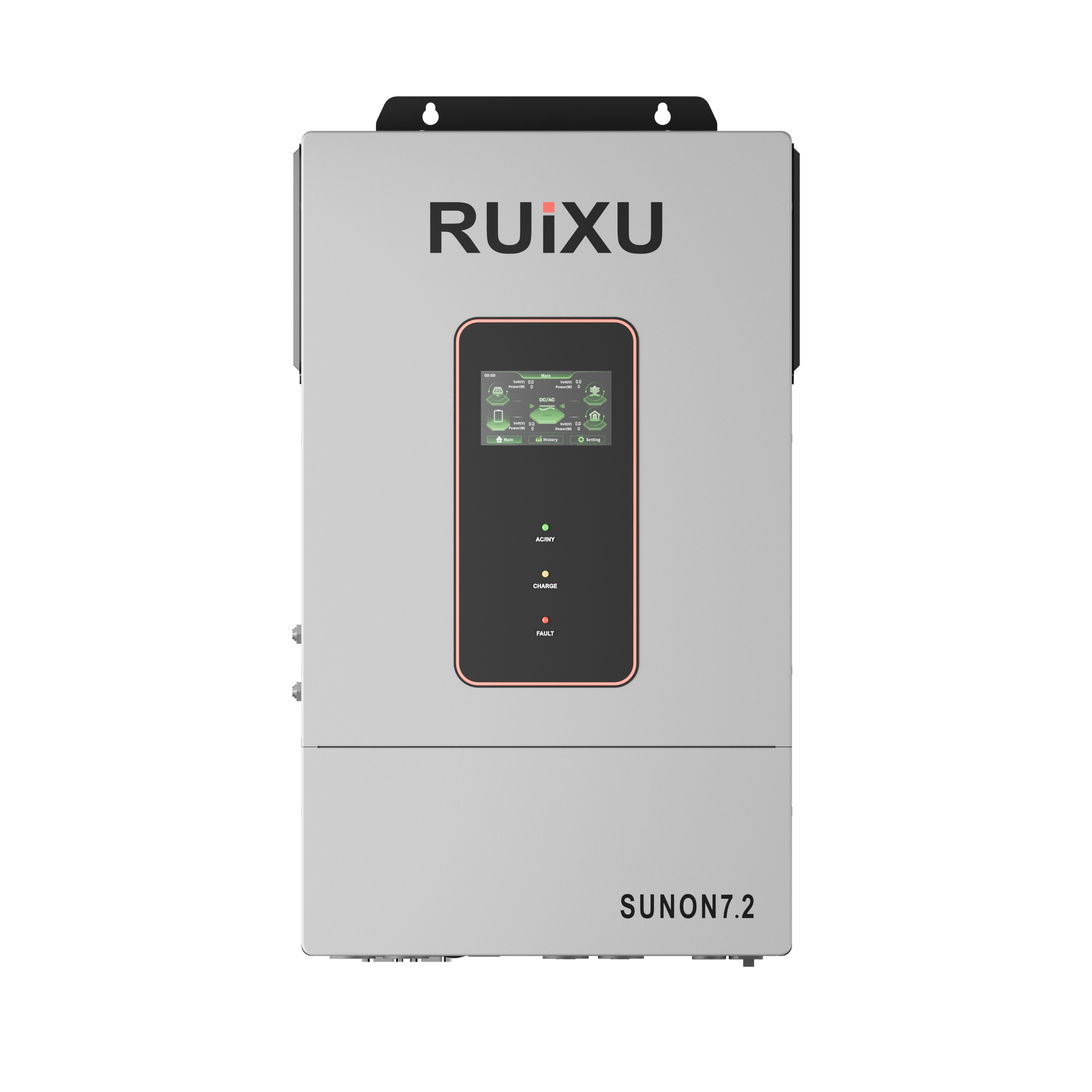

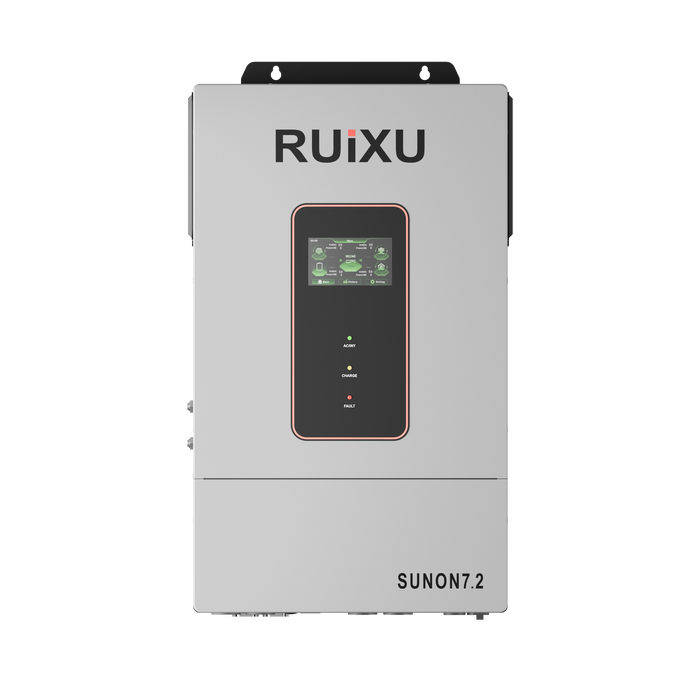

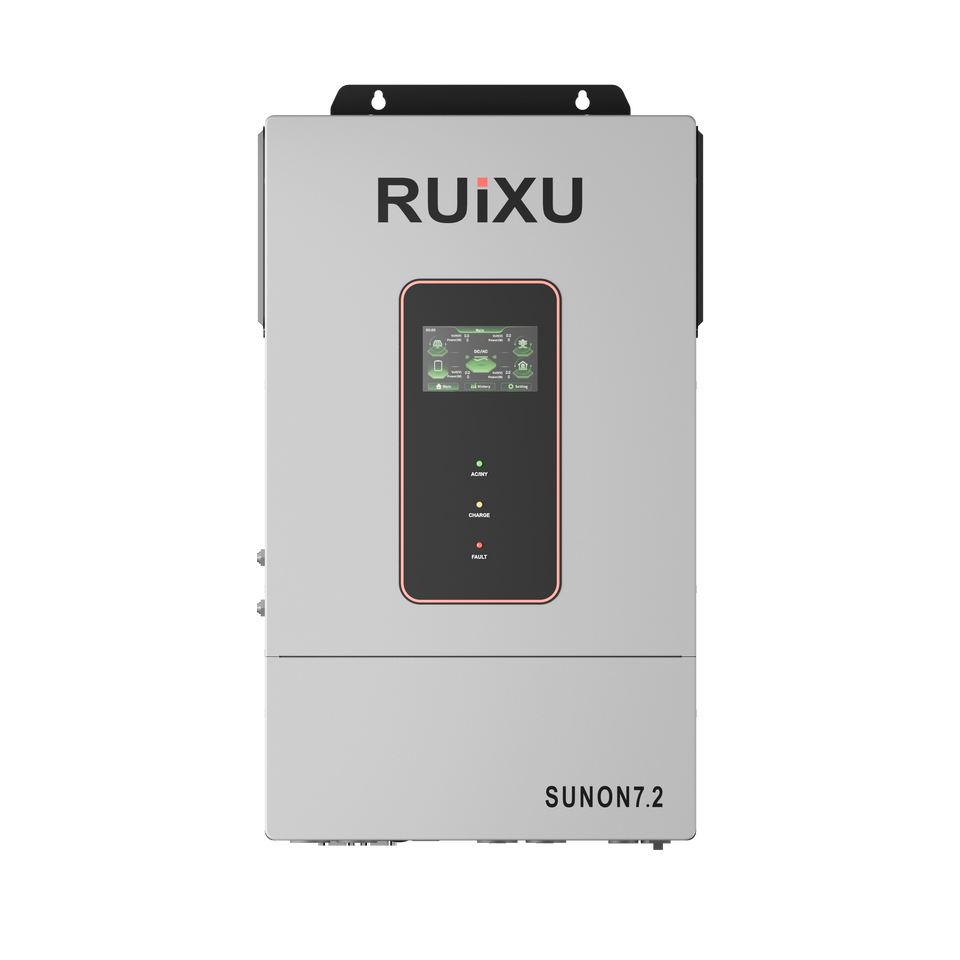

RUiXU SUNON7.2 Single/Split-Phase Off-Grid Inverter - 7.2kW
The RUiXU SUNON7.2 provides 7.2kW off-grid inverter output for 48V energy storage systems with single/split-phase flexibility.
Key Features
- 7.2kW off-grid inverter for 48V batteries
- Single/split-phase output support
- Dual MPPT technology
- Parallel-capable up to six units
Specifications
| Brand | RUiXU |
| Model | SUNON7.2 |
| Product Type | Single/Split-Phase Off-Grid Inverter |
| Output | 7.2kW |
| Battery Compatibility | 48V battery systems |
| Certification | UL1741 |
| Charging Current | Up to 150A |
| Parallel Support | Up to 6 units / 43.2kW total |
| Output Voltage | 120V / 240V |
Package Includes
1 SUNON7.2 7.2kW Inverter
Package Includes
1 CAT6 Battery Communication Cable (200cm)
Package Includes
1 Operation Manual
Package Includes
1 Wi-Fi Dongle
| RUiXU SUNON7.2 Single/Split-Phase Off-Grid Inverter - 7.2kW | |
| Model SKU | SUNON7.2 |
|---|---|
| MODEL | |
| Model | SUNON7.2 |
| Product Type | Single/split-phase off-grid inverter |
| ELECTRICAL | |
| Rated Output Power | 7,200 W |
| Rated Output Voltage | 120/240 V AC, single-phase or split-phase |
| Motor Load Capacity | 4 hp |
| Rated Frequency | 50/60 Hz |
| Output Waveform | Pure sine wave |
| Transfer Time | 10 ms typical |
| Battery Types | Lithium-ion, lead-acid, or user-defined |
| Rated Battery Voltage | 48 V |
| Battery Voltage Range | 40-60 V DC |
| Maximum Solar Charging Current | 150 A |
| Maximum Grid / Generator Charging Current | 120 A |
| Maximum Mixed Charging Current | 150 A |
| Number of MPPTs | 2 |
| Maximum PV Input Power | 4,500 W + 4,500 W |
| Maximum PV Input Current | 16 A + 16 A |
| Maximum PV Open-Circuit Voltage | 500 V DC |
| PV MPPT Voltage Range | 90-450 V DC |
| Grid / Generator Input Voltage Range | 85-140 V AC |
| Grid / Generator Input Frequency | 50/60 Hz |
| Bypass Overload Current | 50 A |
| MPPT Tracking Efficiency | 99% |
| Maximum Efficiency | 92% |
| Parallel Capacity | 1-6 units; more than two can form three-phase output |
| Battery Compatibility | 48V battery systems |
| PV / MPPT | Dual MPPT |
| Charging Current | Up to 150A |
| System Application | Off-grid power |
| CONNECTIONS | |
| Communication | RS485, CAN, USB, and dry contact |
| Parallel Support | Up to 6 units / 43.2kW total |
| PHYSICAL | |
| Dimensions | 22.83 × 16.1 × 5 in (580 × 409 × 127 mm) |
| Weight | 42.77 lb (19.4 kg) |
| OPERATING LIMITS | |
| Certification | FCC Part 15 Class B and UL 1741 |
| Protection Rating | IP20; indoor use only |
| Operating Temperature | -10°C to 55°C; derates above 45°C |
| Warranty | 3 years |
| PACKAGE | |
| Included Components | 1 × SUNON7.2 7.2kW Inverter, 1 × CAT6 Battery Communication Cable (200cm), 1 × Operation Manual, 1 × Wi-Fi Dongle |
