Your RV already has lights, a water pump, and a battery that keeps things running when you unplug. Then you start shopping for solar, and suddenly everyone seems to have an opinion about switching to 24 volts.
Do you actually need to change the whole system? Or would you be spending money to solve a problem you don’t have?
That’s where I’d start with you. Choosing between a 12V and 24V solar system is about what you want to run, how much equipment you already own, and how you’ll recharge. The bigger number isn’t automatically the better purchase.
Let’s walk through the decision as if we were planning your RV or cabin together, including the batteries, charging equipment, and cables that need to work as a system.
Should you choose a 12V or 24V solar system?
A 12V system is often the practical choice for an existing RV with 12V appliances and moderate power needs. A 24V system becomes worth considering for a new build or larger inverter loads because it delivers the same power with roughly half the battery-side current.
However, 24V doesn’t automatically mean twice the runtime. It also adds planning if you need to supply appliances that only accept 12V.
- Keeping an existing RV mostly as it is? Start by seeing whether a properly sized 12V upgrade meets your needs.
- Building a cabin or van electrical system from scratch? Compare 12V and 24V before buying the inverter and chargers.
- Planning substantial electric cooking, air conditioning, or several large loads? Include 48V in the design discussion instead of assuming 24V must be the final step.
Those are starting points, not rules that every RV or cabin must follow. A small cabin can be perfectly suited to 12V, and a carefully designed RV can use 24V.
First, what does “12V solar system” actually mean?
In this guide, 12V or 24V describes the nominal voltage of the battery bank and the equipment connected to it. Nominal means the system’s voltage class, not an exact reading you’ll see every minute.
A lithium iron phosphate battery sold as 12V commonly has a nominal voltage of 12.8V. Its 24V counterpart commonly has a nominal voltage of 25.6V. Charging voltage is higher, and operating voltage changes as the battery charges and discharges.
The solar panels are a separate part of the picture. Their operating voltage can be higher than the battery voltage, with a suitable charge controller managing the connection.
And the outlets inside your RV? Those can still supply ordinary 120V AC through the appropriate inverter, whether the battery side is 12V or 24V.
So you have three things to keep separate: panel input, battery voltage, and appliance output. Buying a panel labeled “24V” doesn’t automatically turn your RV into a 24V system.
Why 24V starts making sense when the loads get bigger
Picture using an inverter to power an appliance drawing 2,000 watts. The appliance needs that power regardless of the battery voltage. What changes is how much current the battery cables carry.
The basic calculation is:
Battery current ≈ appliance watts ÷ battery voltage ÷ inverter efficiency
Using 90% inverter efficiency as an illustration, a 2,000W load draws about 185A at 12V or 93A at 24V. Both calculations describe the same appliance load.
Same 2,000W AC load · different battery current
Double the voltage.
Roughly half the current.
12V system: approximately 185A
24V system: approximately 93A
That difference matters to the battery connections, cable sizing, and voltage drop. Higher current makes a poor connection or an unnecessarily long cable run more troublesome.
For the same cable resistance, halving current reduces cable heating losses to one-quarter. That’s a useful electrical advantage, but it does not mean the entire 24V system uses 75% less energy.
Actual current also changes with battery voltage and inverter efficiency. These examples are comparisons, not instructions for selecting a fuse or cable gauge. Equipment manuals and the installation conditions determine those choices.
I wouldn’t tell you that a 2,000W inverter automatically requires 24V. Suitable 12V systems can support one. I would tell you that the current is substantial enough to compare the complete designs before buying.
Does a 24V battery last longer than a 12V battery?
This is where shopping by amp-hours alone can send you in the wrong direction.
Watt-hours = nominal volts × amp-hours. Watt-hours tell you how much nominal energy the battery stores. You need both numbers to compare batteries at different voltages.
For a real example from our catalog, compare the RICH SOLAR ALPHA 2 12V 200Ah with the RICH SOLAR ALPHA 4 24V 100Ah.

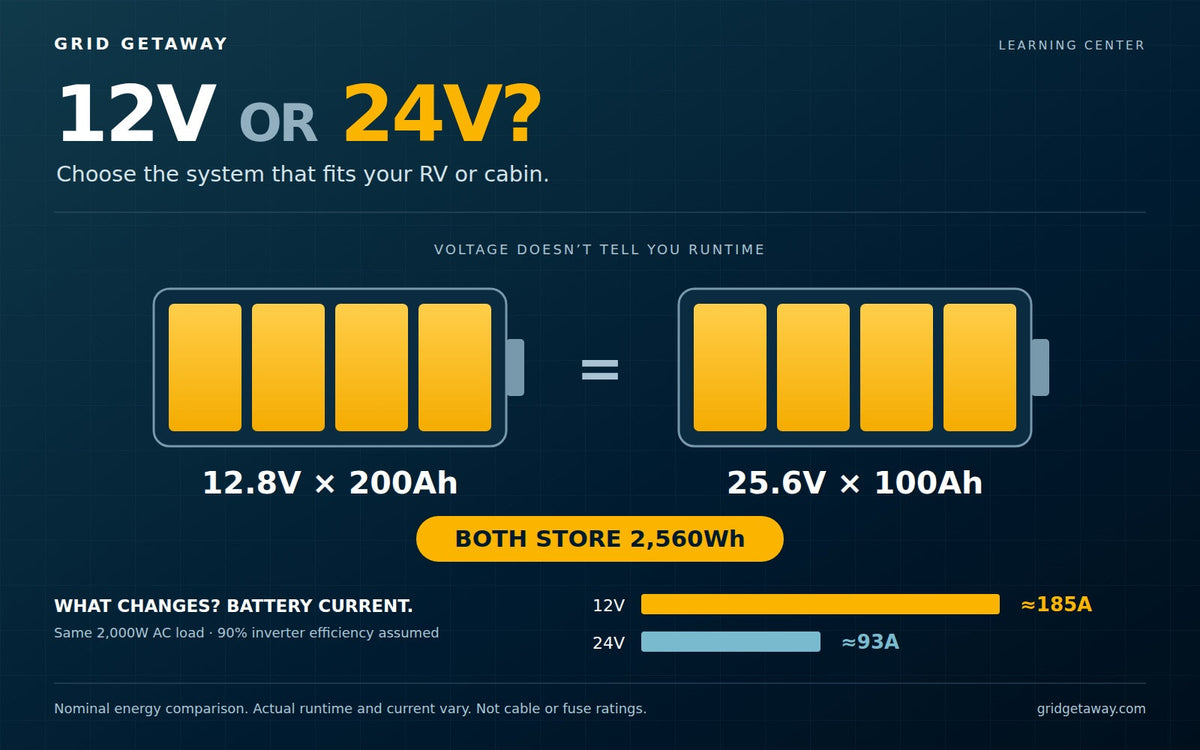

Compare watt-hours, not amp-hours alone
Different voltage.
The same stored energy.
RICH SOLAR ALPHA 2
12.8V × 200Ah
2,560Wh
RICH SOLAR ALPHA 4
25.6V × 100Ah
2,560Wh
RICH SOLAR lists 2,560Wh for both batteries in its ALPHA 2 specifications and ALPHA 4 specifications. The 200Ah model doesn’t store twice as much energy here, and the 24V model doesn’t automatically run your appliances twice as long.
Usable runtime still depends on your reserve, conversion losses, temperature, and the load. If you need more nights between recharges, start with the energy budget in our RV battery sizing guide.
Stored energy and maximum power are different limits
A battery can hold plenty of energy and still be unable to deliver the current your inverter needs.
For example, RICH SOLAR lists a 100A maximum continuous discharge current for the ALPHA 2. That single battery is not a suitable source for a sustained 2,000W AC load. Buying a 2,000W inverter doesn’t remove the battery’s limit.
Check continuous discharge, surge capability, operating voltage, and the manufacturer’s approved bank configurations separately. The two batteries above illustrate equal stored energy; they are not a preapproved shopping list for every inverter.
If your RV already runs on 12V, start there
Suppose your weekends involve a fridge, lights, a water pump, device charging, and occasional use of a small AC appliance. You want the battery to last longer, and you’d like solar to help refill it.
Before discussing a voltage conversion, I’d want to know what is actually disappointing you. Does the battery run out overnight? Does an inverter shut down when you use a particular appliance? Or does the battery simply never recharge enough between stops?
Those are different problems.
- Running out overnight: You may need more usable battery energy or less overnight consumption.
- Shutting down under a heavy load: The inverter, battery current limit, cable voltage drop, or connections need checking.
- Starting every evening partly charged: Your charging sources may be the bottleneck.
Changing from 12V to 24V doesn’t automatically fix any of those. A larger energy store with inadequate charging still spends the week getting emptier.
Keeping 12V may let you retain compatible equipment and avoid redesigning the existing DC distribution system. That can leave more of your budget for the improvements you’ll actually notice.
If the upgrade includes switching battery chemistry, check the charging equipment too. Our guide to replacing an RV lead-acid battery with lithium covers that separate compatibility question.
If you’re building a cabin system, compare 24V before buying
A fresh build gives you more freedom because you aren’t trying to preserve an existing collection of 12V equipment.
Imagine a cabin where you want refrigeration, lights, a laptop, and occasional kitchen appliances. Start with two lists: everything that might run together, and everything that consumes energy over a whole day.
The first list helps size the inverter and battery discharge capability. The second helps size battery storage and charging.
For example, a hypothetical 1,500W appliance used for ten minutes consumes 250Wh before inverter losses. A much smaller 50W load running for ten hours consumes 500Wh. The first is harder to supply at that moment; the second uses more energy across the day.
If your simultaneous loads regularly approach 2,000W, the lower battery current of a 24V design becomes attractive. You can select a matching inverter, charger, and battery bank from the start.
But I’d also ask about future plans. If “occasional kitchen appliances” will soon become electric cooking, water heating, and air conditioning, compare a suitable 48V architecture before investing in a system you’ll immediately outgrow.
For hardwired cabin circuits, have a qualified installer design the AC distribution, protection, and grounding. Choosing the battery voltage is only one part of that installation.
What happens to your 12V appliances on a 24V system?
Your lights and water pump don’t become 24V appliances because you changed batteries. Check each device’s input label: some accept both voltages, while others are strictly 12V.
For 12V-only loads, a properly selected 24V-to-12V DC converter provides a suitable lower-voltage supply. Another possible design keeps a separate 12V battery subsystem with its own compatible charging arrangement.
Supplying different appliances
A 24V battery.
Two different power paths.
AC APPLIANCES
24V-input inverter
↓
120V AC output
Match inverter input, output, and load ratings.
12V-ONLY APPLIANCES
24V-to-12V converter
↓
Regulated 12V DC output
Check continuous current and starting surges.
A converter needs enough continuous output and surge capability for the loads it serves. Its input range must cover the battery’s operating and charging voltages, not just the number printed on the battery case.
Also, the current reduction applies on the higher-voltage side. A 120W load still needs approximately 10A at a regulated 12V output. Its downstream wiring doesn’t suddenly carry half the current because the main battery is 24V.
Don’t take 12V from the midpoint of a series-connected bank to supply appliances. That uneven loading can unbalance the batteries; Victron’s battery-bank wiring guidance explains the issue.
And a fuse won’t solve a voltage mismatch. A fuse protects against specified overcurrent conditions; it does not turn 24V into 12V.
Check all three ways you plan to recharge
When someone prices a voltage conversion, the battery and inverter usually get the attention. The chargers are where the missed costs often appear.
1. Solar charging
Your solar charge controller must support the battery voltage and the battery’s required charging settings. Some support both 12V and 24V, but you still need to configure and connect them according to their instructions.
A useful example is the Victron SmartSolar MPPT 100/50. Its manufacturer datasheet lists 50A charging output, with nominal solar power of 700W for a 12V battery system or 1,400W for a 24V system.
That shows why controller output current matters: the same amperage at a higher battery voltage can transfer more power.
The controller’s 100V maximum solar open-circuit voltage does not double when you change the battery to 24V. Its 60A maximum PV short-circuit current is a separate limit too. Array design must account for cold-weather voltage and all applicable limits.
Use our solar charge-controller sizing guide for that part of the selection.
2. Plug-in charging at a campsite or cabin
Your existing 12V converter/charger cannot be assumed to charge a 24V bank. You need a charger or inverter/charger explicitly designed for the battery voltage and chemistry.
Also check what the inverter actually does. A standalone inverter converts battery power to AC; it doesn’t necessarily charge batteries when shore power becomes available. Automatic transfer capability is another feature to verify.
3. Charging while you drive
A vehicle with a 12V electrical system needs an appropriate charging solution to charge a 24V house bank. You cannot assume a normal 12V-to-12V charger will do it.
The Victron Orion XS 1400 is an example of a configurable option. Its published specifications list a 9–35V input range, adjustable 10–35V output, and input and output current settings up to 50A.
There’s an important limit behind that flexibility: at an illustrative 12V input and 50A input current, only 600W enters the charger before losses. You cannot expect 1,400W of charging from that input simply because “1400” appears in the name.
Available alternator output, vehicle requirements, cable routing, and charger configuration still need checking. Our RV DC-to-DC charging guide walks through those decisions.
Do you need different solar panels for 24V?
You need a compatible array and controller combination. That isn’t the same as needing every panel to have “24V” in its name.
Look at the actual panel specifications: operating voltage, open-circuit voltage, operating current, and short-circuit current. Then evaluate the proposed series or parallel arrangement against the controller’s requirements.
A conventional buck-type MPPT controller needs sufficient solar voltage above the battery’s charging voltage. One nominal 12V panel may be too low for a 24V bank even if its wattage looks appealing.
Two suitable panels in series raise voltage. Parallel connections raise current. Neither arrangement is automatically correct for every controller, and cold weather can push a series string’s open-circuit voltage above its rating.
Our series-versus-parallel solar wiring guide explains those choices. Keep panel-string voltage separate from battery-bank voltage when you compare layouts.
That distinction can also save an unnecessary purchase. Existing panels may remain usable after a battery-voltage change, provided their layout and the controller are compatible.
The cables and connection parts to include in your budget
I’d rather help you plan the complete connection path now than have your project stop because one short battery cable is missing.
For a custom system, account for each applicable section:
- Panels to controller: A positive and negative solar cable path, compatible mating connectors, weatherproof entry fittings, and the protection or disconnects required by the array design. Parallel branches may need combining hardware.
- Controller to battery or busbars: Properly sized positive and negative conductors, suitable terminations, and battery-side overcurrent protection.
- Battery bank to inverter: Both high-current conductors, the specified fuse and disconnect arrangement, terminal covers, and suitable lugs. Include any short cable between the fuse holder and battery connection.
- Multiple batteries: Interconnects and distribution hardware appropriate to the manufacturer-approved arrangement. Current sharing matters in parallel banks.
- 24V-to-12V conversion: Input and output wiring, protection, and a suitable 12V distribution point. Size each side for its own current.
- Vehicle charging: The charging feed and approved return path, required protection, and any ignition or control wiring specified for the charger.
- AC supply and grounding: The conductors, grounding connections, and transfer equipment required by the inverter and installation design.
There is no single “24V cable size” that covers that list. Length, current, routing, temperature, insulation, terminal capacity, and allowable voltage drop all matter. Our solar cable sizing guide helps distinguish the different runs.
Confirm the DC voltage and interruption ratings of protective devices as well. A battery’s internal management system does not replace the external protection required for its wiring. Victron’s DC wiring reference covers these selection principles.
Buying a cable with the right connector is only one check. Its conductor size, length, insulation, and current rating must suit the actual circuit.
How I’d make the final choice with you
Before we picked a battery, I’d put five things on one page:
- Your largest simultaneous load. Include starting surges and the battery current required to supply the inverter.
- Your daily energy use. Estimate watt-hours and decide how long you need to go between reliable recharges.
- Your existing equipment. Identify which appliances, chargers, and electrical components can stay.
- Your charging plan. Include solar, shore power, and vehicle charging where applicable.
- The complete installed cost. Count converters, cables, protection, distribution hardware, and installation work.
If your current RV’s main problem is limited battery capacity, a well-planned 12V upgrade may give you exactly what you wanted with fewer changes.
If you’re starting fresh and expect frequent heavier inverter use, 24V deserves a serious comparison. If the load list is becoming a small all-electric home, widen the discussion to 48V.
Choose the voltage after understanding the system you need. You don’t need to redesign your camping habits around a battery you bought first.
Common questions about 12V and 24V solar systems
Can I connect two 12V lithium batteries to make 24V?
Only if the exact battery model permits series connection and you follow its matching and connection requirements. Some lithium batteries permit parallel expansion but not series use. Approval for one is not approval for the other. A purpose-built 24V battery is another option.
Does 24V charge twice as fast?
Not automatically. Compare charging watts and the energy you need to replace. Delivering the same watts to equal-energy battery banks gives similar ideal charging times before losses and charging behavior. A higher-voltage system can support more charging power with the same current, but the source and equipment must actually supply it.
Can I use my 12V inverter with a 24V battery?
Only if its documented DC input range explicitly supports that battery across its operating and charging range. An ordinary 12V-only inverter is not suitable. Choose the correct inverter input voltage; a fuse or different cable cannot make an incompatible inverter work.
Is a 24V system always cheaper?
No. Reduced current may help with some wiring and equipment choices, but a retrofit can require replacing working chargers and adding a 12V supply. Compare complete systems at equivalent usable energy and load capability.
Does this apply to a portable power station?
A portable power station already combines its internal battery and conversion electronics. Choose it by its usable outputs, capacity, charging limits, and supported accessories. Don’t rewire its internal battery or series-connect its outputs to imitate a custom 24V bank.
Build around the power you actually need
The right system should make your trip or cabin stay easier. It should run the equipment you care about, recharge in the time you have, and leave you with connections you understand.
For an existing RV, that may mean staying with 12V and improving storage or charging. For a fresh build with larger loads, it may mean choosing 24V from the beginning.
If you want help comparing the two, bring us your appliance list, battery and charger model numbers, and approximate cable distances. That gives us a useful starting point for checking the complete setup, including the less exciting parts that make everything work together.
