The refrigerator is easy to picture: unplug it from the wall, plug it into your power station, and keep the food cold. But what about the ceiling lights? The furnace? The outlets you already use around the house?
That’s usually where a straightforward backup-power plan starts to feel complicated. You want your home to stay comfortable, and suddenly you’re comparing transfer switches, electrical panels, and plugs that don’t look alike.

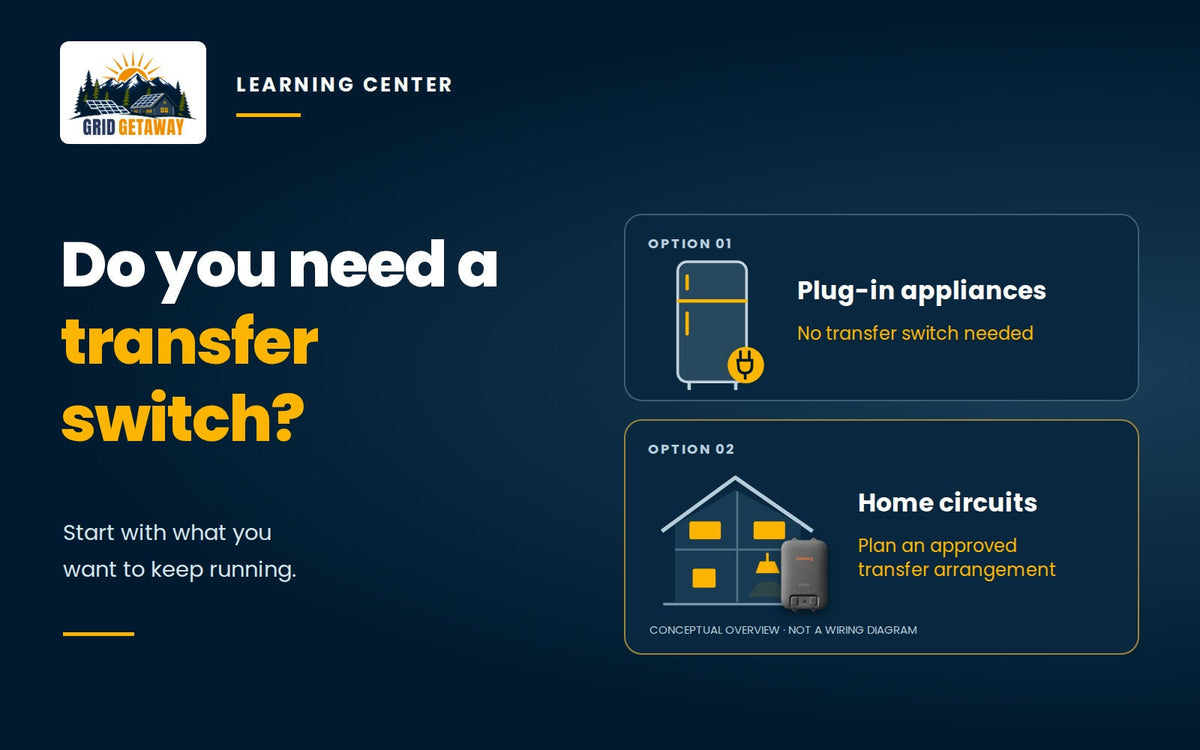

I’d start with one decision: do you want to power individual appliances, or use your home’s existing circuits? Once we answer that, choosing the right connection becomes much easier.
Do you need a transfer switch for a solar generator?
You do not need a transfer switch to power compatible appliances directly from a solar generator’s outlets. If you want to supply your home’s existing wiring, you need an approved arrangement that safely separates backup power from the utility supply. A professionally installed transfer switch is one option; a compatible panel interlock may be another where permitted.
The battery size alone doesn’t decide this. A large power station can still power appliances directly. A smaller one may serve selected household circuits if the equipment, loads, and installation are compatible.
For this guide, we’re talking about typical U.S. residential backup systems. Your electrician should confirm the requirements for your particular home and equipment.
Start with what you want to keep working
Imagine the power goes out tonight. Walk through the house and name the things you’d miss first. I’d write those down before looking at any transfer-switch options.
Then separate that list by how each item connects to electricity.
Appliances you can plug directly into the power station
A refrigerator, a lamp, phone chargers, and a router may fit a simple plug-in plan. You connect each compatible appliance to the station, within its outlet and total output limits. Your household wiring stays out of that connection.
This can be a sensible starting point if you rent, move frequently, or only need a few essentials during occasional outages. You can also take the same station on a trip without dismantling a home installation.
Think through the physical setup, though. Can you reach the refrigerator’s plug? Where will the station sit with its required ventilation space? Will a cord cross a doorway? Use extension cords only where the appliance manufacturer permits them, with ratings and lengths suitable for the load.
And remember that powering your router keeps your home network powered; internet service still depends on your provider’s equipment working.
Things you want to operate through household circuits
Ceiling lights and permanently wired equipment change the conversation. You can’t usually move those onto a power station by reaching behind them and swapping a plug.
If keeping the gas furnace running during an outage is your priority, for example, its electrical supply deserves attention alongside its power requirements. The same applies to a hardwired pump or other installed equipment.
This is where I’d bring an electrician into the plan. You’re choosing which circuits should receive backup power and how to connect them safely. You may still use the power station’s own outlets for other suitable devices, provided the total load and manufacturer’s instructions allow it.
backup power to work?
What a transfer switch actually does
A transfer switch selects the electricity source for the circuits connected to it. During normal operation, those circuits receive utility power. During an outage, an appropriate transfer arrangement lets them receive backup power while keeping that supply isolated from the utility.
That isolation is the reason this equipment matters. Plugging a power station’s output into an ordinary household wall or dryer outlet can energize wiring in an unsafe way. The Consumer Product Safety Commission warns against feeding house wiring through a wall outlet because it can endanger utility workers and others. See its generator electrical-safety guidance.
Never use a male-to-male cord to feed your home. Simply promising to turn the main breaker off is not a substitute for properly designed transfer equipment.
There’s also a helpful distinction to keep in mind: the switch does not store energy or make the battery more powerful. It changes how electricity reaches selected circuits. Your station still has to supply the required voltage, start the loads, and carry them for as long as you need.
Manual or automatic: who will be home to switch it?
This is the question I’d ask before comparing features: does someone need to be there when the power fails?
A manual transfer switch needs a person
With a manual arrangement, someone follows the installed system’s operating procedure to transfer the selected circuits to backup power. There will be an interruption while that happens.
That may suit your household perfectly. If outages are occasional and you’re comfortable managing a short list of essentials, manual control can be straightforward. Ask the installer to label everything clearly and show each person who might operate it what to do.
But I wouldn’t count on a manual switch to restore a pump while you’re away for the weekend. A battery sitting nearby doesn’t change who has to perform the transfer.
Jackery’s manual transfer-switch kit instructions illustrate this distinction: the user operates the switches when changing the supply. Installation itself is assigned to a qualified electrician.
An automatic system needs a compatible combination
An automatic arrangement can transfer supported circuits when utility power fails, provided the station, transfer equipment, configuration, and battery condition support that operation.
I’d consider it more closely when being away from home is part of the problem you’re trying to solve. A sump-pump backup plan, for instance, needs to account for the next storm even when nobody is standing beside the battery.
Ask about transfer interruptions, low-battery behavior, and what happens after utility power returns. “Automatic” doesn’t promise that every device will experience uninterrupted power.
Also, a power station’s UPS feature for appliances connected to its own outlets does not turn a separate manual transfer switch into an automatic one. Those are different parts of the backup setup.
Could an interlock work instead of a transfer switch?
Possibly. An appropriate interlock physically prevents the utility main breaker and the generator supply breaker from being on together. Schneider Electric explains that operation in its generator interlock guidance.
The important word is appropriate. An interlock must suit the specific electrical panel, and the complete installation must suit the backup source and applicable requirements. It is not a universal accessory that makes any portable battery compatible with any house.
I’d ask the electrician to compare the permitted options for your equipment, including how you would choose and manage loads during an outage. Some households prefer a dedicated set of backup circuits; others may have a suitable interlock arrangement. The best choice depends on the actual installation and how comfortably you can operate it.
Check these four things before buying the hardware
Two products can both say “home backup” and still be unsuitable together. Here’s the order I’d use to narrow your options.
1. The voltage your appliances need
Many everyday U.S. appliances use 120 volts. Some larger equipment uses 240 volts, so check the equipment label or documentation instead of guessing from its size.
A 120V-only backup arrangement cannot run a 240V appliance. That matters especially when planning around a well pump, central cooling equipment, or electric water heater.
A cable adapter does not create the missing voltage. If a station supports 240V only through an approved combination of units and accessories, price and evaluate that entire combination.
2. Continuous output and motor startup
Continuous output tells you how much power the station can supply while loads are running. Motors and compressors may also need additional power briefly when they start.
List the loads that could run together, including equipment that starts automatically. A refrigerator and a pump won’t necessarily take turns because that would be convenient for your battery.
If that list is still a guess, our home-backup sizing guide walks through turning your priorities into a power and energy budget.
3. The actual connection and its limits
The station’s total wattage is not necessarily available through every individual outlet. Check the specified output port, approved cable, inlet, and transfer equipment as a complete connection.
Likewise, a high current rating on a switch is a limit for that component, not extra output added to the power station. The system must stay within every applicable limit, including limits on individual branches and, where relevant, each side of a split-phase supply.
4. The circuits you want included
A circuit is a section of household wiring protected by a breaker. It may supply several outlets or lights, not just the appliance you had in mind.
If you back up the kitchen circuit, ask what else can be plugged into it. A kettle or toaster someone switches on later can change your carefully planned load.
Circuit counts also need context. A supported 240V circuit generally uses two breaker positions. A “12-circuit” description should not be read as permission to power twelve large appliances simultaneously.
Work out the night before you plan the whole house
I’d rather help you keep a realistic set of essentials running until morning than give you an impressive circuit list that empties the battery too quickly.
Watts describe power at a particular moment. Watt-hours describe energy over time. Your connection plan needs the first number, and your overnight plan needs the second.
For a simple example, suppose your selected loads average 300W over eight hours. They would use 300W × 8 hours = 2,400Wh at the appliances. The battery must also cover conversion losses, the system’s own consumption, and any reserve you want to retain.
That is an invented planning example, not a typical household measurement or a runtime promise. Your refrigerator cycles, your furnace responds to the temperature, and your pump depends on demand. Measure where practical and have the installer assess hardwired loads.
Start with an “essentials only” plan and a second list of things you can use briefly if energy allows. That gives your household useful choices without making every circuit a promise.
make it until morning?
Two Jackery setups that show the difference
Let’s make this less abstract with two options we carry. These illustrate different approaches; your electrician still needs to confirm the exact equipment and installation for your home.
HomePower 3600 Plus with a manual transfer switch
The Jackery HomePower 3600 Plus and manual transfer-switch bundle is worth considering when your plan centers on selected 120V essentials and someone will be available to operate the switch.
One HomePower 3600 Plus has 3,584Wh of nominal battery capacity and 3,600W rated AC output. Its individual AC outlets and operating modes have their own limits, detailed in the HomePower 3600 Plus manual.
I’d match this bundle to a written circuit list and confirm the supplied switch, cable, and inlet before ordering. Its station-level UPS feature should not be mistaken for automatic transfer of those household circuits.
Explorer 5000 Plus with the Smart Transfer Switch
The Jackery Explorer 5000 Plus and Smart Transfer Switch bundle offers a different starting point for an integrated backup plan.
One Explorer 5000 Plus has 5,040Wh of nominal capacity and up to 7,200W total AC output, with supported 120V/240V connections. Those are single-station specifications from the Explorer 5000 Plus manual.
Transfer equipment is a separate part of an installed backup system. Match the exact switch, power station, and household circuits.
The compatible Smart Transfer Switch supports automatic backup operation and selected 120V or 240V circuits. Its manual describes up to twelve 120V circuits or six 240V circuits, with the actual mix and loads designed for the installation. It specifies indoor installation by qualified electrical personnel. See the Smart Transfer Switch manual.
More available circuits give you more planning options. They do not remove output or energy limits. I’d choose between these approaches based on voltage, essential loads, runtime, and whether backup needs to work while you’re away.
What I’d ask an electrician before requesting a quote
You don’t need to arrive knowing electrical terminology. Bring your power-station model, the equipment manuals, and your list of priorities. These questions will make the conversation useful:
- Which circuits can this exact system support? Include running loads, motor starts, voltage, and anything else sharing those circuits.
- Which transfer arrangement suits my panel and power station? Ask for the actual equipment models in the proposal.
- Where will the station and connection equipment go? Consider access, cable routing, required clearances, temperature, and protection from moisture.
- Will the electrical protection work correctly? Have the electrician check grounding, neutral arrangements, shared-neutral circuits, and ground-fault protection for the complete system.
- How will this interact with equipment already installed? Mention rooftop solar, another battery system, or an existing generator connection.
- What does the quote include? Confirm hardware, approved cables, labor, any required permits or inspections, labeling, and an operating demonstration.
Those grounding and neutral questions belong with the installer. You shouldn’t need to solve nuisance trips with improvised adapters or changes to protective connections.
Ask for a written description of what happens during an outage and when utility power returns. With automatic equipment, also ask how to monitor battery readiness and what the system does if the battery runs low.
I’d compare completed installations rather than switch prices alone. The distance between equipment, the condition of your panel, and the circuits involved can change the work required. A generic installation price from another home may tell you very little about yours.
Keep solar charging in the plan, too
A transfer switch handles the connection to your household circuits. Solar panels provide a way to recharge the battery through its supported solar inputs. Those are separate jobs.
Once your essential loads are chosen, think about replacing the energy they use during a longer outage. Our guide to how many solar panels you need can help with that part of the plan.
If you already have rooftop solar, don’t assume it will automatically recharge a portable station or keep working through the new backup connection. Tell the installer exactly what is already installed so they can assess the approved arrangement.
For the first night, I’d plan around energy already stored in the battery. That gives you a useful starting point even if the outage arrives after sunset.
Practice once while the lights are still on
After installation, ask the electrician to demonstrate the approved outage and restoration procedure. Use that opportunity to check whether the actual loads start and operate as planned.
Keep a short household instruction sheet beside the equipment. Include which circuits belong in the essential group, what to leave off, and where to check battery status.
For manual systems, make sure another responsible adult can follow the process. For automatic systems, understand the required readiness settings and how to recognize a fault. Check the manufacturer’s instructions for ongoing testing and storage.
This is also a good time to discover that an outlet powers more than its label suggests, or that a planned cable route blocks access. Those are much easier problems to solve before the next storm.
Questions you might still have
Can I use a solar generator without connecting it to my electrical panel?
Yes. Directly powering compatible plug-in appliances is a valid home-backup approach. You still need enough output and battery capacity, but using the household panel is optional.
Will a transfer switch let a small station power the whole house?
No. It provides a controlled connection to selected wiring. Your station’s voltage, continuous output, startup capability, available outlets, and stored energy still limit what you can run.
Can I reuse the transfer switch installed for my gas generator?
Possibly, but have an electrician verify it with the exact power-station model. A plug that fits does not confirm suitable voltage, neutral and grounding arrangements, protection, or manufacturer support.
Can I charge the station from a circuit it is backing up?
Do not create a loop where the station tries to charge itself from its own output. Have the installer identify permitted charging sources and follow the system’s approved operating arrangement.
Do solar panels have to be connected for a transfer switch to work?
No. A compatible battery system can supply its supported backup circuits from stored energy without solar panels attached. Panels become relevant when you want to recharge from sunlight.
Choose the connection that fits your household
If you want to keep a few accessible appliances running, a direct plug-in setup may cover your needs. If you want existing lights, outlets, or hardwired equipment included, plan the transfer arrangement with an electrician before buying the system.
My starting point would stay the same: decide what matters tonight, how long it needs to run, and who will be home to operate it. Those answers make the equipment choice far more useful than choosing the biggest switch or battery you can find.
