You picked the campsite for the trees. There’s room for the chairs, the RV stays more comfortable, and you can finally sit outside without baking in the afternoon sun.
Then you check the solar input. It’s much lower than you expected.
Before you decide the panels are too small or the battery is the problem, I’d take a walk around the setup with you. A branch, an awning edge, or the rooftop air conditioner may be casting a shadow that matters more than it looks.
Solar panels can produce electricity in shade when enough light reaches them, but output falls and charging may slow or stop. Partial shade can cause a larger power loss than the shaded area suggests. The result depends on the panel’s internal design, the shadow, the wiring, and the charging equipment.
That doesn’t mean you have to give up a shaded campsite. It means we need to separate where you want to relax from where your panels can collect useful sunlight.
First, what kind of shade are we talking about?
“My panels are shaded” can describe several very different situations. I’d look at the light before recommending a different panel.
An overcast sky
Clouds can reduce the sunlight reaching the whole panel. Diffuse light still arrives from the sky, so output does not automatically become zero. How much you collect depends on the conditions and your equipment.
This is different from a hard shadow across one part of a panel. We cover weather-related planning in our guide to solar generators on cloudy days.
A branch, roof vent, or awning shadow
Here, some cells get direct sunlight while others receive much less. That uneven illumination is partial shading. Because cells are electrically connected, the effect can extend beyond the visible dark patch.
Deep shade under a tree or roof
The panel may still receive scattered or reflected light, but that is a weak foundation for a daily charging plan. A panel producing some electricity and a panel replacing tonight’s battery use are two different things.
For a heavily wooded site, I would plan around the available sunny openings and another approved charging source if needed. Buying more rated watts does not make a closed tree canopy disappear.
Less sunlight across the panel.
Plan for variable daily energy.Uneven light across connected cells.
A small shadow can have a larger effect.Little direct sunlight reaches the panel.

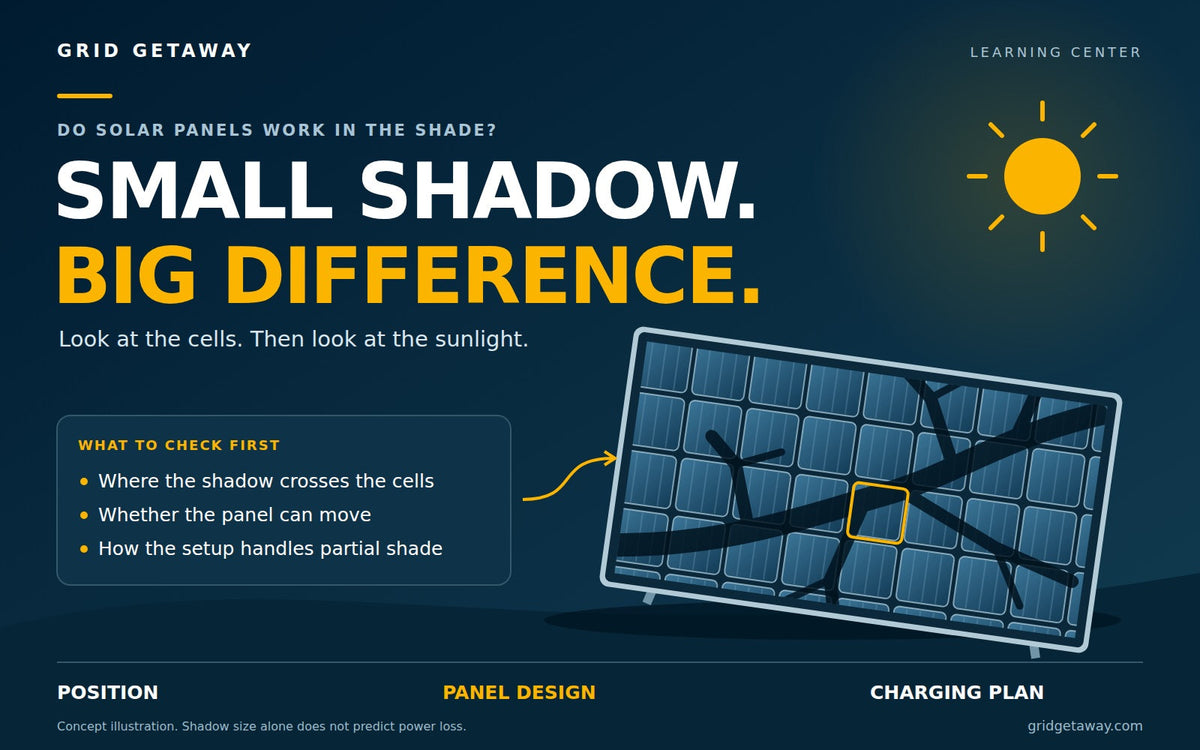

Find a better location or another charging option.Why can a small shadow make such a big difference?
A panel’s cells work together through electrical connections. When their light levels differ, they may no longer operate together efficiently. The shape and position of a shadow can therefore matter as much as its area.
A narrow shadow crossing several cell groups can behave differently from a compact patch covering a similar area. Internal cell layout and bypass-diode arrangement also change the response. The System Advisor Model’s shading documentation explains why panel construction matters when modeling these losses.
This is why I would not tell you that covering 10% of a panel always removes exactly 10%, 30%, or 50% of its output. Without knowing the panel and conditions, that precision would be misleading.
At your campsite, the useful question is simpler: can we remove the shadow and compare the charging input under otherwise similar conditions?
Check more than trees. Antennas, roof racks, open vent lids, neighboring panels, and even your own body can put a shadow across the cells. The obvious large obstruction is not always the one causing the reading you are seeing.
What bypass diodes actually do
Many solar panels include bypass diodes that provide an alternate current path around an affected group of cells. This can let other sections contribute when shading interferes with one section.
The bypassed section no longer contributes its normal voltage. The diode does not replace the sunlight or guarantee full output. Its purpose and behavior also differ from a blocking diode used to prevent reverse current.
Victron’s explanation of shading and panel voltage shows why bypassing affected groups can reduce operating voltage. That matters if the remaining voltage is too low for the charge controller to operate.
You do not need to open the panel’s junction box to investigate this. Start with placement, the display, and the manufacturer’s documentation.
Receiving sunlight
Affected by shade
Receiving sunlight
Let’s check your setup before buying anything
If you already own the panels, I’d start with a practical comparison. It can help you distinguish a placement problem from a reason to investigate the equipment.
1. Make sure the battery is actually asking for a charge
A nearly full battery, a charge limit, temperature protection, or another operating condition can reduce accepted solar power. A low input reading at that moment does not measure everything the panel could produce.
Check the charge level, settings, and warning messages. Use a normal charging session with battery capacity available, and keep connected loads similar while comparing locations.
2. Look across the entire panel surface
For portable panels, walk around the setup and look from more than one angle. A support, carrying handle, or nearby object may be casting a narrow line you missed.
For roof-mounted panels, use a safe viewing position or a photo. Do not climb onto an unsuitable roof just to check a shadow. Also inspect for leaves or debris using the cleaning and access instructions for your installation.
3. Move a portable panel into a clear patch of sunlight
Keep the panel facing the sun, protect its connectors, and maintain a stable support. Follow the manual if moving it requires disconnecting anything; do not pull apart PV connectors under load.
Give the charging display time to update and settle. Compare readings while sunlight is reasonably steady. If clouds are moving quickly, a single before-and-after number may reflect the weather as well as your move.
Jackery’s panel-positioning guidance likewise recommends avoiding obstructions and adjusting placement as the sun moves.
4. Record what changed
A photo, the time, input watts, and battery charge level are enough to make a useful note. If moving into clear sunlight repeatedly improves input, you have a practical reason to change the layout.
If it stays low in clear sunlight, move to our solar-charging troubleshooting guide. Cable connections, input compatibility, temperature limits, and settings deserve their own checks.
Keep the RV comfortable and give the panels a better view
This is where portable solar can earn its place. Your RV can stay under the trees while a compatible portable panel sits in a sunny clearing within a suitable cable distance.
Before setting it down, imagine the next few hours. Will the shadow of the RV reach it? Will an awning cover the spot after lunch? Is it somewhere people will walk, drive, or place chairs?
I would choose a location with a useful window of sunlight and a manageable route back to the equipment. A perfect patch of sun on the other side of a busy walkway is not a good setup.
Keep the power station within its permitted operating conditions, with ventilation and weather protection appropriate to the model. The panel needs sunlight; the battery does not need to sit beside it in direct sun. Do not cover a power station with a blanket or close it in a hot, unventilated box to shade it.
If you are choosing between permanent and movable panels, our portable versus roof-mounted RV solar guide walks through the ownership tradeoffs.
Plan for moving shadows, not just the noon photo
A roof that looks clear at lunchtime may have a very different pattern in the morning or late afternoon. An air conditioner, satellite dish, or roof rack can cast a longer shadow when the sun is lower.
Before committing to a fixed layout, note where those shadows fall at several useful charging times. Consider the season and the direction you tend to park. Leave required access and mounting clearances as well.
For a portable setup, checking the position during normal campsite tasks is often enough to notice a problem. You do not need to spend the whole day chasing a perfect number. Find a workable location, then adjust when a shadow reaches the cells.
A photo log is useful if you are deciding whether another panel will help. It shows whether you have unused sunny space or whether every proposed panel would sit behind the same obstruction.
Does a tree or roof fixture block the first useful sunlight?
Are the cells clear, with a safe cable route and stable support?
Will the RV, awning, or neighboring trees shade the panels?
Will parallel wiring solve the shading problem?
It can help in some arrangements, but I would not change your wiring based on that sentence alone.
Panels in series share a current path. Uneven illumination can change the operating point of the string, and bypass behavior can reduce its available voltage. It is too simple to say that one shadow always shuts down every panel.
Parallel branches share a voltage while contributing current. An unshaded branch may continue contributing when another is shaded, but both still interact with the receiving equipment’s operating point and limits. Parallel does not make a shaded panel behave as though it is in full sun.
The equipment may also limit your choices. A proposed series string must stay below the permitted cold-weather open-circuit voltage. Parallel arrangements need their combined current, conductor sizing, connectors, and protection checked.
Before changing anything, compare the whole arrangement with our series versus parallel solar wiring guide. If the station’s manual specifies a particular connection method, start there.
What about separate MPPT inputs?
Separately tracked inputs can let differently illuminated groups operate independently. However, two physical sockets do not necessarily mean two independent trackers. Check the manufacturer’s description of the inputs and the limits for each.
For a fixed RV battery system, an installer may consider separately controlled arrays when sections of the roof face different conditions. That is a system-design decision, including battery charging coordination and protection, rather than a universal extra box to buy.
Which panels would I actually consider?
I would choose around the problem you can identify. Being able to move the panel, managing unavoidable partial shade, and collecting rear-side light are different features.
Renogy ShadowFlux 120W and 200W: examine unavoidable partial shade
Our catalog includes the Renogy ShadowFlux 120W and 200W ShadowFlux. Renogy describes this family as using cell-level shade management.
I would consider them where a fixed installation encounters recurring partial shadows and relocation is limited. Compare the available mounting space and electrical ratings, then look at the manufacturer’s test conditions. We have not independently measured these panels’ performance at your campsite.
One compatibility detail matters: Renogy lists the 200W version at 36.5V open circuit. The “12V” in a product name does not mean its solar output is limited to 12V. Verify the selected model against your controller or station’s input limits using the manufacturer specifications.
Shade-management features are a reason to investigate a product, not a promise of full charging under dense trees.
Jackery SolarSaga 200W: prioritize moving into sunlight
The Jackery SolarSaga 200W is a portable option to compare for compatible Jackery setups. Its relevance here is practical: you can reposition a portable panel as the usable patch of sunlight moves.
Check the exact panel generation, station model, included cable, and required adapters. Do not assume a connector arrangement from a different SolarSaga model applies. Jackery’s official SolarSaga 200W page provides the model’s setup information.
I would weigh the deployed footprint and the effort of moving it against how often you camp under trees. Portability only helps if you have somewhere useful to put the panel.
BougeRV 200W bifacial: distinguish rear-side collection from shade management
The BougeRV N-Type 200W bifacial panel is another option in our catalog, with different voltage variants. Match the actual SKU and electrical specifications rather than selecting by wattage alone.
Bifacial construction can collect light from the rear as well as the front. That is not the same feature as cell-level shade management, and it does not remove the need for useful illumination.
I would evaluate the space behind the panel and the light reaching that surface. Our bifacial solar-panel guide explains why mounting conditions matter. A rear surface blocked by the installation cannot be treated like an exposed rear surface in a favorable test.
None of these products is a universal winner for shade. The best comparison starts with your actual location, mounting constraints, and compatible charging equipment.
Include the cables that make the better location possible
Moving the panels ten or twenty feet may be straightforward. Getting the right connection to that location still takes a little planning.
- Portable panel to power station: use the approved input cable or adapter for that exact combination. If extending it, check the manufacturer’s supported arrangement and the assembly’s ratings.
- Panels to a separate controller: plan both positive and negative paths, compatible solar connectors, the controller-end terminations, and the required protection.
- More than one panel: count the interconnections or branch components required by the approved configuration. Adding a splitter is not a substitute for checking the combined current.
- A longer run: check voltage drop as well as safe current capacity. Protect the route from sharp edges, pinching, traffic, and connector strain.
For a suitable PV connection, the RICH SOLAR 10 AWG extension pair is one assembly to evaluate. It provides both leads, but the selected length and connector compatibility still need to fit your circuit.
A matching plug shape alone does not prove that connectors are approved to mate. Confirm the actual connector family and the equipment instructions before ordering.
Our solar-cable sizing guide explains the round-trip distance, wire gauge, and losses. That guide is particularly useful when the sunny spot is farther away than the supplied lead can reach.
Measure the improvement in watt-hours
The charging screen shows watts: power at that moment. What determines how much energy you collected over the afternoon is watt-hours.
Here is a deliberately simple example, not a panel test. Suppose one location averages 60W for four hours. That contributes 240Wh at the measurement point. A clearer location averaging 140W for the same four hours contributes 560Wh.
The difference is 320Wh. Those numbers do not predict your system, but they show why a placement improvement can matter without changing the battery or buying another panel.
320Wh more collected at the same measurement point
If the controller or station records daily solar energy, compare that history across useful charging periods. Note the weather and what you changed. A single high reading that lasts thirty seconds is less useful for trip planning than a dependable charging window.
Also remember that energy arriving while appliances are running may help serve those loads rather than all going into stored battery charge. Judge the whole day, including what you used and what remains for the evening.
Common questions about solar panels in shade
Will solar panels work under trees?
They may produce some power from gaps in the canopy and diffuse light. Reliable charging depends on how much useful light reaches them and for how long. For a wooded campsite, I’d look for a sunny location within a suitable cable distance before increasing panel wattage.
Does one shaded panel stop the entire array?
Not automatically. The outcome depends on the internal panel design, series or parallel arrangement, bypass behavior, and controller operation. It can reduce array output significantly, but there is no single shutdown rule that applies to every setup.
Are there solar panels that work in complete shade?
Panels need light to generate electricity. Shade-tolerant designs can reduce certain mismatch losses when illumination is uneven, but they cannot produce their rated sunlight output in darkness. Treat strong “works in shade” claims as a reason to examine the test setup and actual remaining output.
Should I rotate a panel to change how the shadow crosses it?
Changing orientation can change which cells or groups are shaded, but there is no universal portrait-or-landscape answer. For a portable panel, first try removing the shadow entirely. Any mounting change must still follow the manufacturer’s support, orientation, and installation instructions.
Does a higher-efficiency panel solve shading?
No. Conversion efficiency under stated conditions does not by itself tell you how a panel responds to a branch shadow. Compare the shade-management design, relevant test evidence, electrical compatibility, and your options for improving placement.
Should I buy more panels if my current ones are shaded?
First identify where the additional panels would go. More compatible panels in useful sunlight may improve your energy budget. More panels behind the same obstruction may be a disappointing purchase. Check the charging equipment’s limits before expanding.
Start with the shadow you can remove
If we were looking at your campsite together, I would not start by pointing to the most expensive panel. I’d look at the shadow, the sunny space nearby, and the cable route between that space and your equipment.
Sometimes the useful change is moving a portable panel. Sometimes it is planning around a roof obstruction, checking the charging configuration, or choosing a panel designed to handle particular partial-shade conditions.
Send us the panel and charging-equipment model numbers, a photo of the shadow, your mounting arrangement, and the distance to the nearest practical sunny spot. Those details give us much more to work with than “the solar seems weak.”
You can keep the campsite you enjoy. The goal is to give the panels a fair chance to collect the energy you need while you’re there.
