Rich Solar • MPPT Charge Controller

Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller

The Rich Solar RS-MPPT60 is a high-capacity 60A MPPT solar charge controller built for RVs, vans, trailers, boats, cabins, sheds, and off-grid battery systems. With automatic 12V, 24V, 36V, and 48V system detection, support for Sealed, Gel, Flooded, and Lithium batteries, high-efficiency MPPT charging, LCD system monitoring, and built-in electronic protections, it gives larger solar charging systems a smarter way to manage energy from panels to batteries.

RS-MPPT60 controller 60A rated battery current 12V / 24V / 36V / 48V auto-detect Up to 99% MPPT tracking 98% peak conversion efficiency Lithium compatible

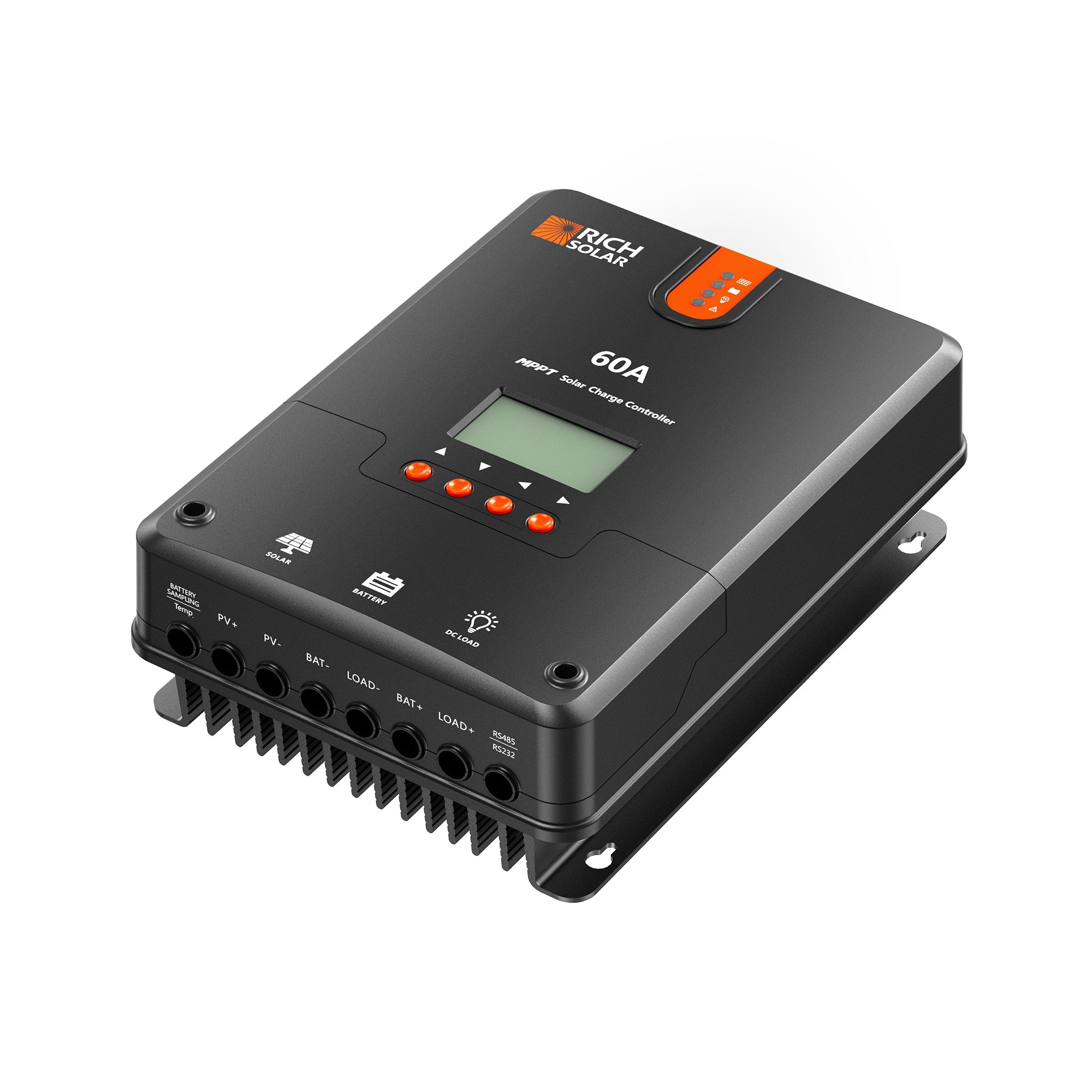

Rich Solar RS-MPPT60 60 Amp MPPT solar charge controller for RV, van, cabin, marine, and off-grid solar battery systems
60A High-capacity solar charging for larger battery-based RV, cabin, marine, and off-grid systems.
12V–48V Automatically detects 12V, 24V, 36V, and 48V DC battery system voltages.
150V Supports higher-voltage solar input designs when wired within controller limits.
MPPT Tracks solar input efficiently to improve charging performance compared with basic controllers.

Product Overview

The RS-MPPT60 is designed for customers who need a stronger charge controller for larger solar arrays and battery banks. It regulates solar power from the panels to the battery, helping manage charging safely and efficiently across common off-grid system voltages.

This controller is a strong fit for RV solar upgrades, camper vans, travel trailers, boats, cabins, sheds, remote buildings, and DIY off-grid power systems where reliable MPPT charging, battery compatibility, and built-in protection are important.

Rich Solar 60A MPPT solar charge controller front display with LCD screen and LED indicators

Built for Larger Solar Charging Systems

The RS-MPPT60 is made for battery-based solar systems that need more charging capacity than smaller 20A, 30A, or 40A controllers. Its automatic voltage detection and wide battery compatibility make it useful for customers building or upgrading systems across multiple battery voltages and chemistries.

RV & Travel Trailer Solar A strong controller option for larger roof-mounted solar arrays and battery banks used for boondocking or extended travel.
Cabins & Off-Grid Buildings Useful for remote buildings, sheds, tiny cabins, and off-grid systems that need dependable solar charging.
Marine & Boat Power Works for compatible marine battery systems where solar charging, battery protection, and system visibility matter.
48V Battery Systems Supports 48V DC battery systems, making it useful for higher-voltage solar storage designs when properly configured.

Key Features That Matter

This description keeps the focus on what customers need to know before buying: supported system voltages, battery compatibility, MPPT efficiency, display visibility, protection features, heat dissipation, and Bluetooth-module communication support.

Rich Solar RS-MPPT60 charge controller with LCD screen and control buttons
Automatic 12V/24V/36V/48V Detection

The controller automatically detects common DC system voltages, making it flexible for different battery bank designs. This is especially useful for customers comparing 12V, 24V, 36V, and 48V solar charging setups.

Rich Solar 60 Amp MPPT controller front view with LCD and LED indicators
High-Efficiency MPPT Charging

Innovative MPPT technology helps track solar input efficiently, with tracking efficiency up to 99% and peak conversion efficiency of 98%. That helps the system harvest more usable charging power from connected solar panels.

Rich Solar RS-MPPT60 controller terminals and connection ports
Battery Compatibility & Load Control

The RS-MPPT60 is compatible with Sealed, Gel, Flooded, and Lithium deep-cycle batteries. It also supports diverse load control and can charge over-discharged lithium batteries when used within the correct system setup.

Rich Solar 60A MPPT charge controller die-cast aluminum heat dissipation backplate
Heat Dissipation & System Protection

A die-cast aluminum design helps dissipate heat during operation. Built-in electronic protection helps guard against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

System Monitoring Made Easier

The LCD screen and multiple LED indicators display system operation information, customizable parameters, and error codes. That makes it easier to understand what the solar charging system is doing without relying on guesswork.

The built-in RS232 port can communicate with a BT-1 Bluetooth module, giving compatible systems an upgrade path for mobile monitoring when paired with the right accessory.

Rich Solar RS-MPPT60 angled view showing controller body, screen, and heat sink design

Best Uses

  • RV solar charging systems
  • Camper vans and travel trailers
  • Boat and marine solar battery systems
  • Cabins, sheds, and remote buildings
  • Off-grid solar battery banks
  • 12V, 24V, 36V, and 48V DC system builds
  • Lithium, Sealed, Gel, and Flooded battery charging
  • DIY solar upgrades needing a larger 60A MPPT controller

Key Benefits

  • 60A MPPT solar charge controller
  • Automatically detects 12V, 24V, 36V, and 48V DC systems
  • Compatible with Sealed, Gel, Flooded, and Lithium batteries
  • MPPT tracking efficiency up to 99%
  • Peak charge conversion efficiency of 98%
  • LCD screen with multiple LED indicators
  • Displays operation information, parameters, and error codes
  • Electronic protection against reverse polarity and reverse current
  • Protection against overcharge, over-discharge, overload, and short circuits
  • Diverse load control capability
  • Can charge over-discharged lithium batteries
  • Die-cast aluminum design for heat dissipation
  • RS232 port for BT-1 Bluetooth module communication
Compatibility note: Before ordering, confirm your battery voltage, battery chemistry, solar array voltage, solar array wattage, controller current rating, PV input limits, wire sizing, fuse or breaker requirements, mounting location, ventilation, and whether the controller settings match your battery manufacturer’s charging requirements.

Size the charging system

Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.

Compare before you choose

Compare charge current, cold-corrected PV voltage and array-current limits against the battery system.

See the Rich Solar BRAVO 60 | 60A MPPT Solar Charge Controller | Premier 60A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid for another RICH SOLAR charge controller option.

Rich Solar 60 Amp MPPT Solar Charge Controller
Package Includes
1x Rich Solar 60 Amp MPPT Solar Charge Controller
Includes the selected item based on the current package option.
Specifications
Selected variant SKU RS-MPPT60
Rated Battery Current 60A
Rated Load Current 20A
Max Solar Input Voltage 150V(77℉), 145V(-13℉)
Max Solar Input Power 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop ≤0.26V
Discharge Circuit Voltage Drop ≤0.15V
Operating Temperature -31°F to 113°F
Max Terminal Size <11mm
Overall Dimensions 11.2 x 8.1 x 3.7 in
Net Weight 7.94 lb
150V Max Solar Input Voltage Supports flexible solar panel configurations.
Supports Multiple Battery Types Compatible with Sealed, Gel, Flooded, and Lithium batteries.
Bluetooth Ready Supports the optional BT-1 Bluetooth module via the RS232
Lithium Battery Recovery Capable of charging over-discharged lithium batteries.
Designed for Long-Term Reliability Durable construction for demanding off-grid applications.
Nominal System Voltage 12V/24V/36V/48V Auto
Rated Charge Current 60A
Max PV Input Voltage 150V
Nominal PV Power 800W @12V / 1,600W @24V / 2,400W @36V / 3,200W @48V
MPPT Voltage Range 2–120V
Rated Charging Current 60A
Batter Voltage 9 - 70 VDC
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How should I qualify a panel string for the 60 Amp MPPT Solar Charge Controller? The official limits list published PV voltage limit or range 150V(77℉), 145V(-13℉). Check the final series-parallel array against voltage, current, and power simultaneously, including open-circuit voltage in the lowest expected temperature. A panel layout can fit the wattage recommendation and still exceed the controller's voltage or current limit. Where does the MPPT charging approach of the 60 Amp MPPT Solar Charge Controller fit best? This is an MPPT controller, so it can track the array's operating point and convert available PV voltage into battery-charging power within its published limits. That does not make every high-voltage string compatible: the array must remain inside the controller's input and tracking ranges. Will the 60 Amp MPPT Solar Charge Controller work with my lithium or lead-acid battery bank? The published system-voltage information is Automatically detects 12V/24V. RICH SOLAR lists: Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.. Confirm the selected profile, charge voltages, temperature behavior, BMS limits, and equalization rules against the exact battery manufacturer. A chemistry name by itself is not enough to approve the settings. How should I interpret the 60 Amp MPPT Solar Charge Controller's charging-current rating? 60A is the published charging or controller-current figure, not a guaranteed all-day output. Actual battery current depends on usable panel power, sunlight, array voltage, battery voltage, charging stage, battery acceptance, temperature, wiring loss, and any loads consuming solar energy while charging. How is Bluetooth access provided for the 60 Amp MPPT Solar Charge Controller? Bluetooth is not listed as built in. The official page identifies communication through the optional BT-1 Bluetooth module, so include that accessory if phone monitoring is required. A communications port alone does not put the controller online.
