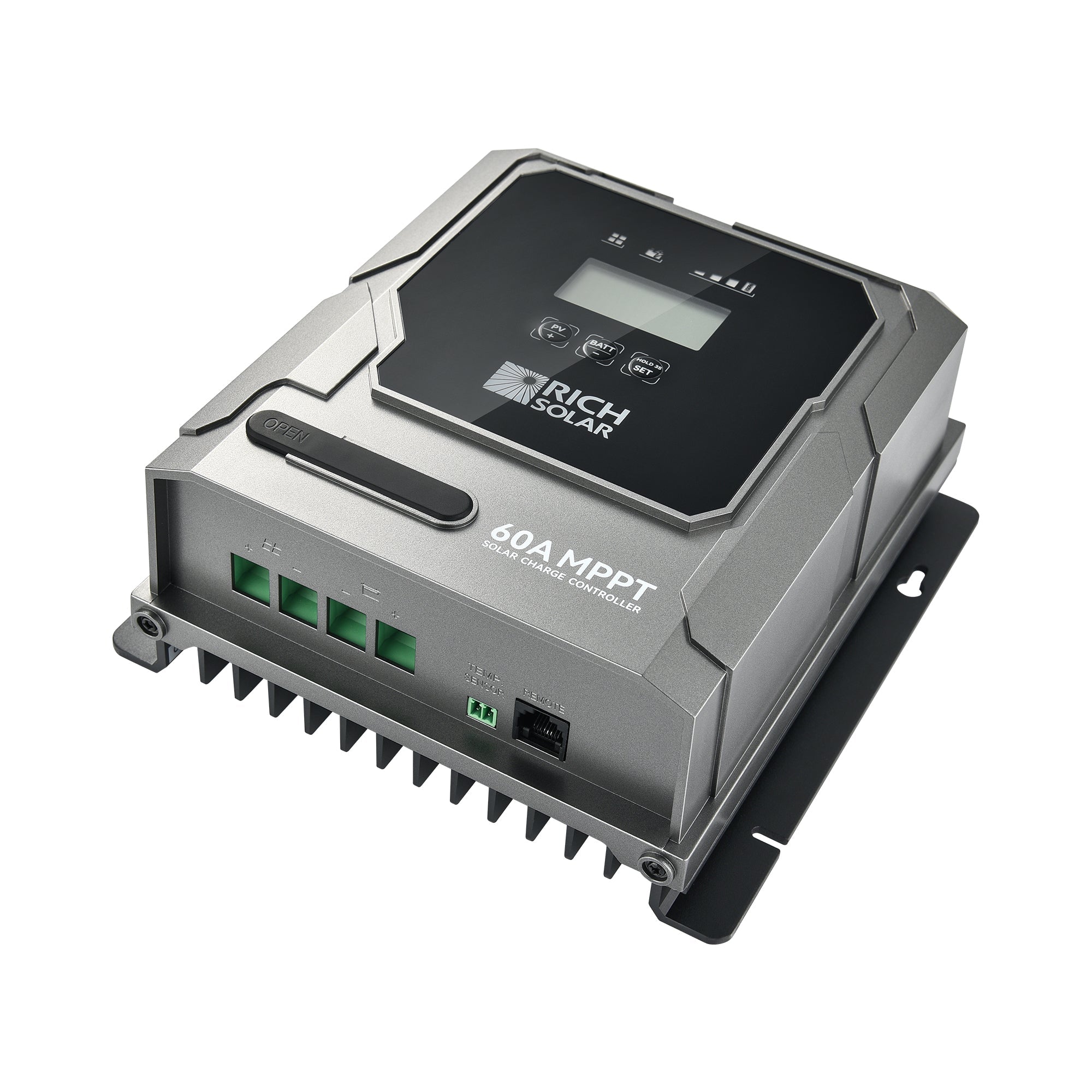

BRAVO 60 — 60A MPPT Solar Charge Controller
The BRAVO 60 is Rich Solar's flagship MPPT charge controller, rated for 60 amps with true MPPT tracking efficiency above 99.5% and charge conversion efficiency as high as 98%. Built with in-house designed electronics, a conformal-coated internal board, and a meaningful set of advanced features — common negative connection support, onboard charging data storage, and optional external battery temperature sensing and digital remote display — it's engineered for larger, more demanding 12V or 24V off-grid systems.

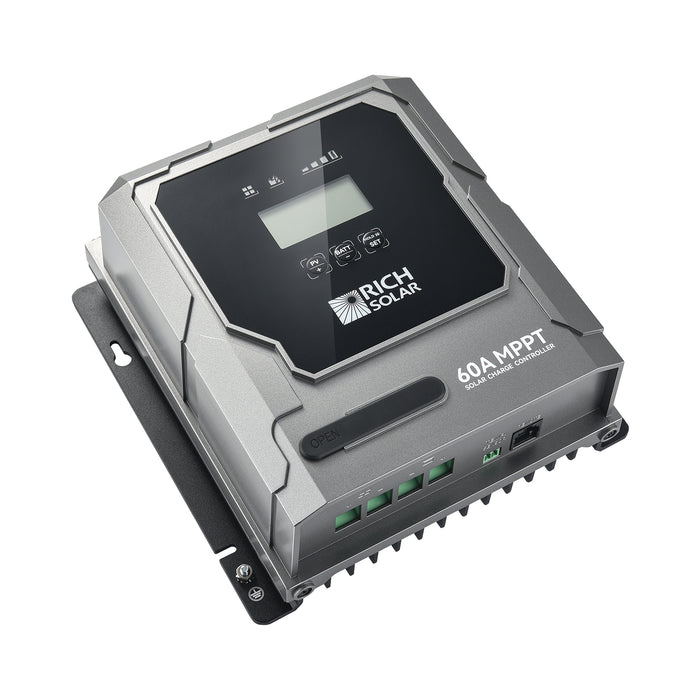

True MPPT, 99.5%+ Tracking Efficiency
Genuine MPPT charging tracks the array's maximum power point with tracking efficiency above 99.5% and charge conversion efficiency as high as 98%, supporting a recommended PV input of 900W at 12V or 1800W at 24V across a 100V maximum open circuit voltage.
Common Negative Connection Support
Supports a common negative wiring configuration, a topology requirement for certain inverter and system setups — a feature not commonly found across every MPPT controller in this class.
Onboard Charging Data Storage
Stores charging data directly on the controller, giving you a historical record of system performance without needing a separate logging device or constant app connectivity.
Product Overview
The BRAVO 60 is Rich Solar's highest-capacity MPPT charge controller, in-house designed and manufactured rather than a rebadged third-party unit. At 60A maximum PV charging current and a 100V max PV open circuit voltage, it's built for substantially larger arrays than Rich Solar's BRAVO PRO 30 and 40 — supporting a recommended input of 900W at 12V or 1800W at 24V. True MPPT tracking (rated above 99.5% efficiency) combined with charge conversion efficiency as high as 98% means more of your array's available power actually reaches the battery bank, particularly valuable with higher-voltage panel strings or in variable light conditions throughout the day.
The controller automatically self-adapts to 12V or 24V systems and supports common negative connection wiring, a topology consideration relevant to certain inverter and system integration setups. Reverse discharge protection and overvoltage protection are described as targeted for accuracy, and the internal board carries conformal coating for added protection against moisture and contamination inside the housing. Onboard charging data storage records system performance history directly on the controller, without requiring continuous app connectivity to capture that data.
Battery type selection covers a wide range of chemistries, split into lead-acid presets (GEL, AGM, WET, Crystal, Calcium) and lithium presets (LiFePO4, LTO, LCO) — among the broadest battery compatibility lists in Rich Solar's charge controller lineup. An external Battery Temperature Sensor and an external Digital Remote Display are both available as optional accessories for additional monitoring flexibility. The housing's IP rating is split by component: IP43 for the internal PCBA and IP22 for the connection area, meaning the board itself has somewhat more protection than the exposed terminal connections — plan your mounting location and wiring accordingly rather than treating this as a fully sealed outdoor unit. At 7.9 × 7.7 × 3.3 in and 4.18 lb, it's both larger and heavier than the BRAVO PRO 30/40, reflecting its higher current capacity.
Maximizing Harvest From a Larger Array
- True MPPT, >99.5% Tracking Efficiency: The controller's algorithm closely follows the array's maximum power point as light conditions change throughout the day.
- Up to 98% Conversion Efficiency: Minimal power loss converting solar input to battery-charging output.
- 100V Max PV Open Circuit Voltage: Accommodates higher-voltage panel string configurations for larger array wiring designs.
- 60A Max PV Charging Current: Rich Solar's highest-current charge controller, supporting a recommended 900W (12V) or 1800W (24V) PV input.
- 12V/24V DC System Self-Adaptation: Automatically adapts to your system voltage without manual configuration.
Features Built for Demanding System Designs

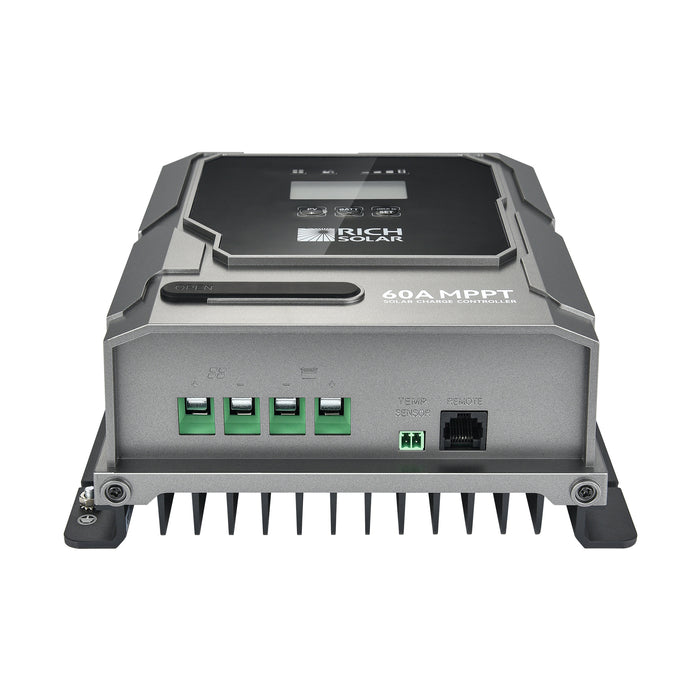

- Common Negative Connection: Supports this specific wiring topology, relevant for certain inverter and multi-component system integrations.
- Charging Data Storage: Records charging history directly on the controller for later review.
- Reverse Discharge Protection: Targeted for accuracy, preventing reverse current flow from the battery back through the array at night.
- Overvoltage Protection: Guards against excessive voltage conditions on either the panel or battery side.
- Conformal Coating on Internal Board: Adds a layer of protection against moisture and contamination for the internal electronics.
Broad Battery Support, Optional Monitoring Add-Ons
- Lead-Acid Presets: GEL, AGM, WET, Crystal, and Calcium battery type selections.
- Lithium Presets: LiFePO4, LTO (Lithium Titanium Oxide), and LCO battery type selections.

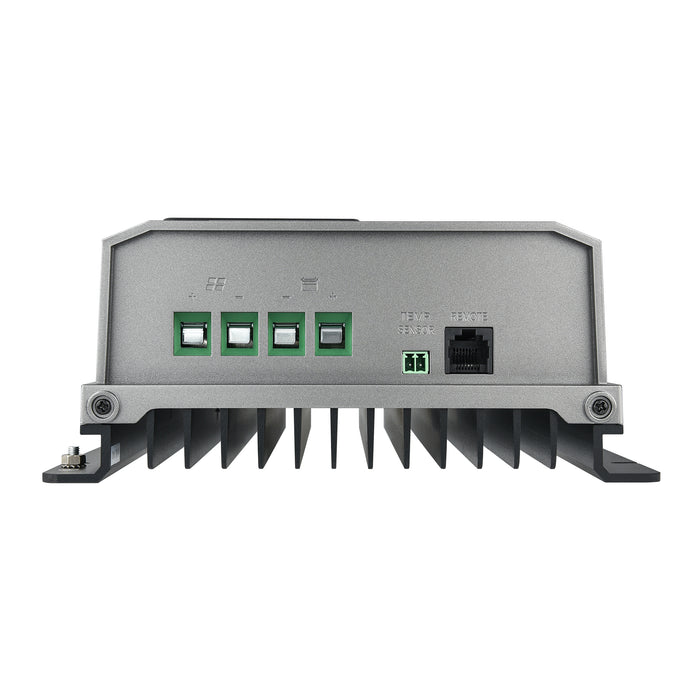

- Optional External Battery Temperature Sensor: A separately available accessory for direct battery temperature readings to improve charging accuracy.
- Optional External Digital Remote Display: A separately available accessory for additional monitoring flexibility away from the controller itself.
- In-House Designed and Manufactured: Built and engineered directly by Rich Solar rather than a relabeled third-party platform.
Full Specifications
| SKU | RS-MPPT60P |
| System Nominal Voltage | 12V/24V Auto |
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 60A |
| Max Recommended PV Input Power | 900W (12V) / 1800W (24V) |
| Charge Conversion Efficiency | Up to 98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Presets | Crystal, GEL, AGM, WET, Calcium, LCO, LFP, LTO |
| Housing Color | Black / Grey |
| IP Grade | IP43 (Internal PCBA) / IP22 (Connection Area) |
| Net Weight | 1.90 kg (4.18 lb) |
| Dimensions | 201 × 195 × 85 mm (7.9 × 7.7 × 3.3 in) |
Best Uses
- Large 12V or 24V off-grid systems needing high-current MPPT charging
- Installations requiring common negative wiring configurations
- Systems wanting onboard charging data history without an app
- Mixed or less common battery chemistries (LTO, LCO, Crystal)
- Builders wanting a higher-capacity step up from the BRAVO PRO line
Key Benefits
- 60A MPPT with >99.5% tracking and up to 98% conversion efficiency
- 100V max PV open circuit voltage for larger panel strings
- Common negative connection and onboard charging data storage
- Conformal-coated internal board for added moisture protection
- Broad battery chemistry support across 8 preset types
- Optional external BTS and digital remote display accessories
| Specifications | |
| Model SKU | RS-MPPT60P |
|---|---|
| System Nominal Voltage | 12/24V Auto |
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 60A |
| Max. Recommended PV Input Power | 900 Watt (12V) / 1800 Watt (24V) |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.90kg / 4.18lb |
| Dimensions (L×W×H) | 201×195×85mm (7.9×7.7×3.3in) |
