Rich Solar BRAVO 50 | 50 Amp MPPT Solar Charge Controller | Premier 50A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
Frequently Bought Together

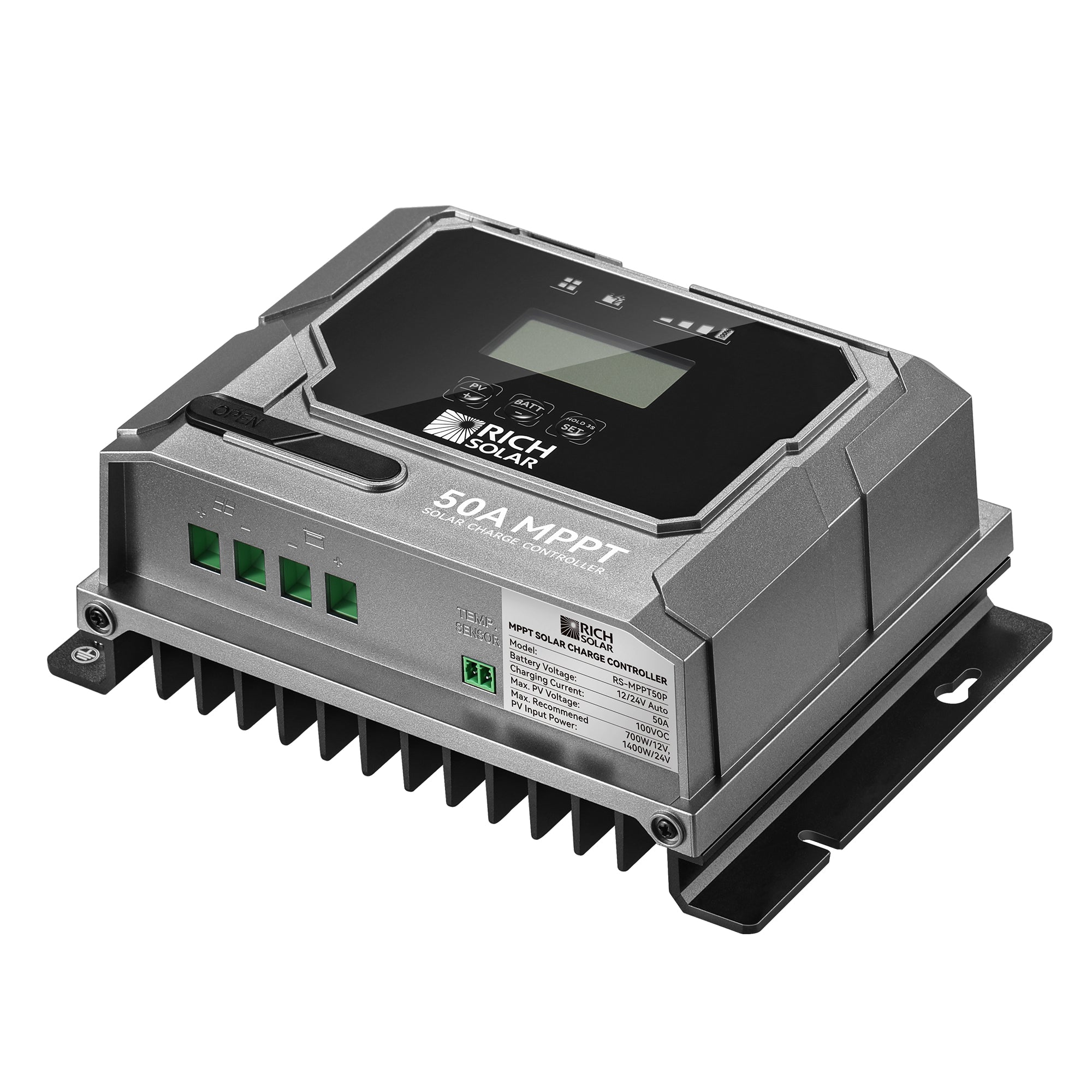

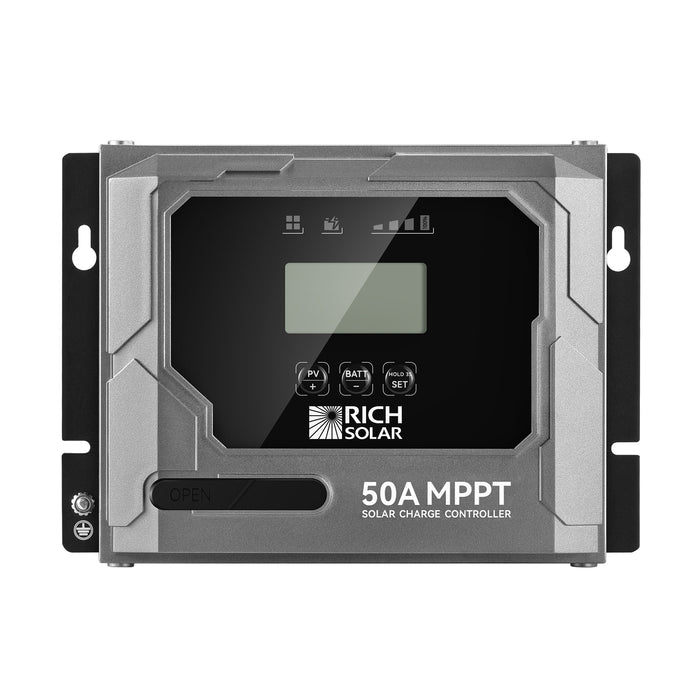

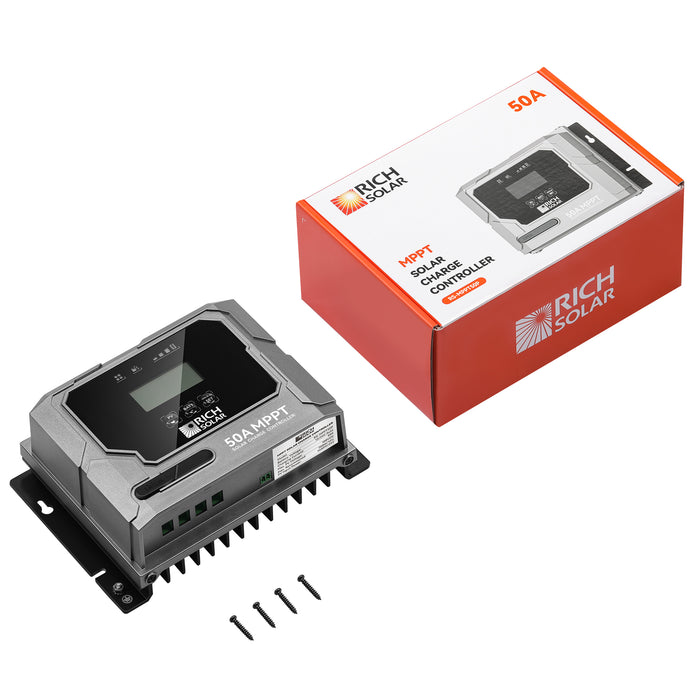

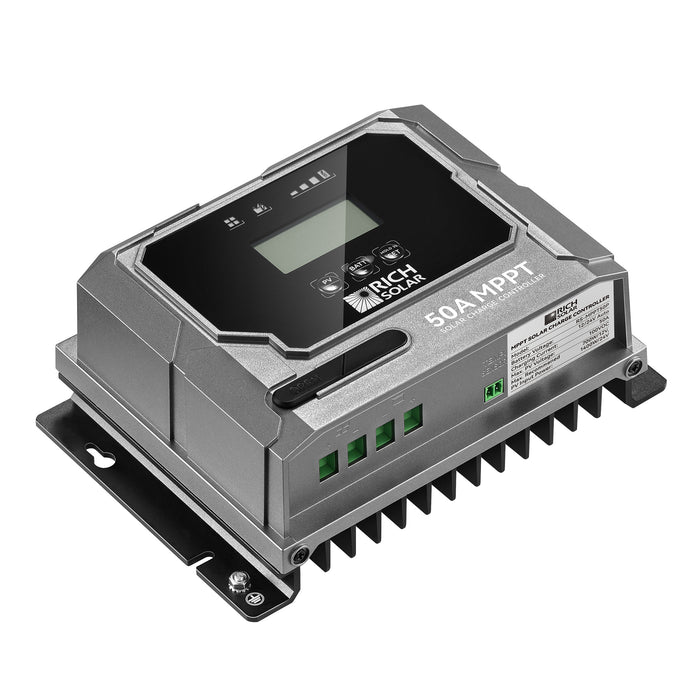

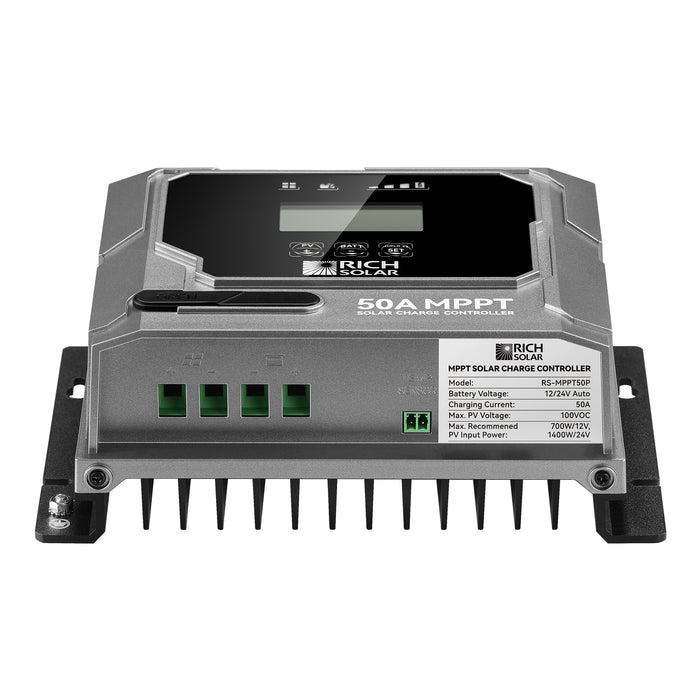

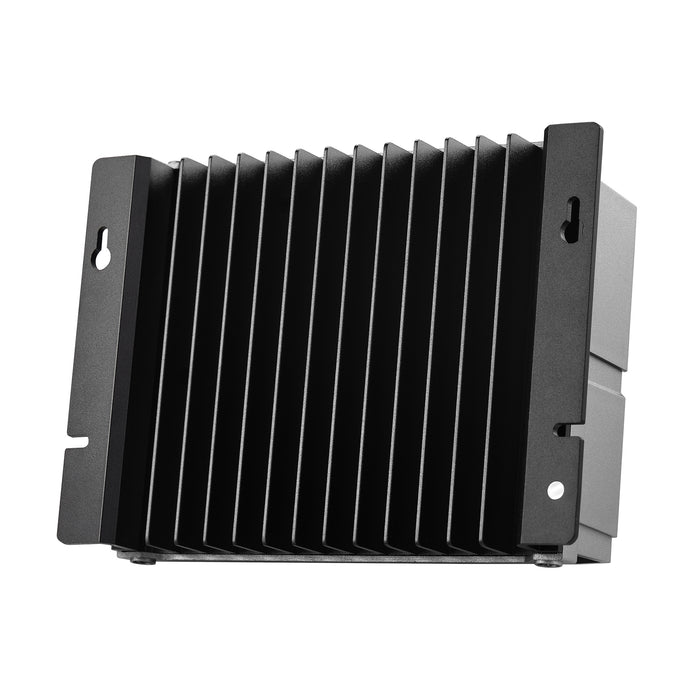

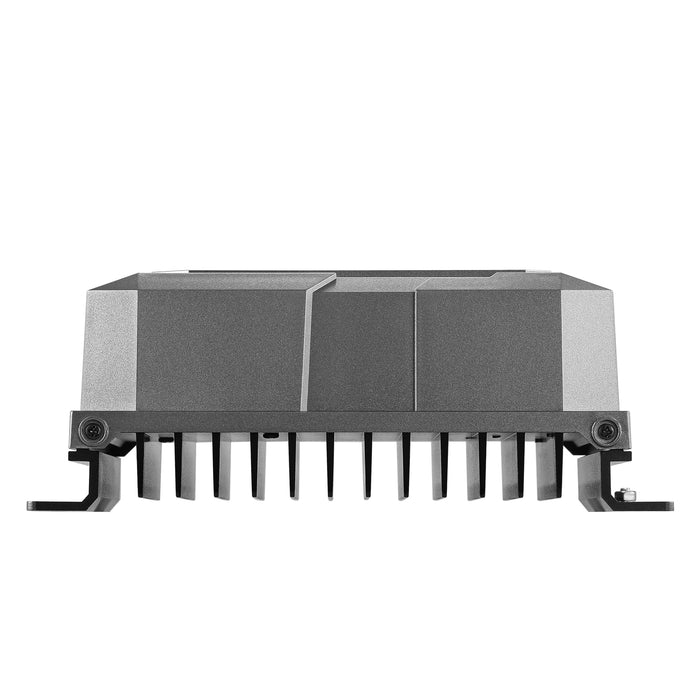

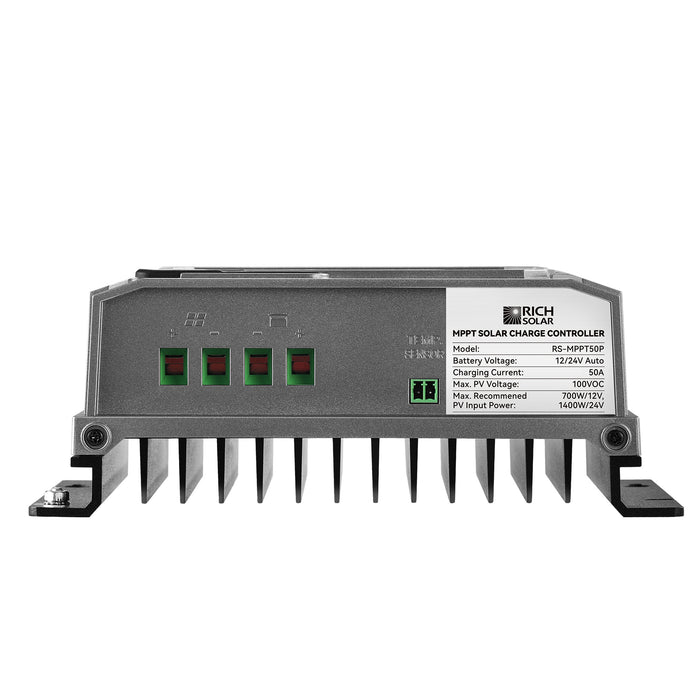

BRAVO 50 — 50A MPPT Solar Charge Controller
The BRAVO 50 is a 50-amp MPPT charge controller with true MPPT tracking efficiency above 99.5% and charge conversion efficiency as high as 98%. Designed and manufactured in-house, it automatically self-adapts to 12V or 24V systems and supports common negative connection wiring, onboard charging data storage, and a conformal-coated internal board — a feature-rich controller built for off-grid systems that need genuine charging efficiency and a flexible, accurate protection set.
True MPPT, 99.5%+ Tracking Efficiency
Genuine MPPT charging tracks the array's maximum power point with tracking efficiency above 99.5% and charge conversion efficiency as high as 98%, supporting a recommended PV input of 700W at 12V or 1400W at 24V across a 100V maximum open circuit voltage.
Common Negative Connection Support
Supports a common negative wiring configuration, a topology requirement for certain inverter and system setups — giving you flexibility in how the controller integrates into a larger electrical design.
Onboard Charging Data Storage
Stores charging data directly on the controller, giving you a historical record of system performance without needing a separate logging device.
Product Overview
The BRAVO 50 is a 50A MPPT (Maximum Power Point Tracking) solar charge controller engineered and manufactured by Rich Solar to deliver genuine, accurate charging performance for off-grid 12V or 24V systems. True MPPT tracking — rated above 99.5% efficiency — combined with charge conversion efficiency as high as 98% means more of your array's available power actually reaches the battery bank, particularly valuable with higher-voltage panel strings or in variable light conditions throughout the day. The controller accepts up to 100V DC maximum PV open circuit voltage and supports a recommended PV input power of 700W at 12V or 1400W at 24V.
The controller automatically self-adapts to 12V or 24V systems without requiring manual configuration, and supports common negative connection wiring — a topology consideration relevant to certain inverter and system integration setups. Reverse discharge protection and overvoltage protection are described as targeted for accuracy, providing reliable safeguards on both the panel and battery sides of the circuit. The internal board carries conformal coating, an added layer of protection against moisture and contamination for the electronics housed inside. Onboard charging data storage records system performance history directly on the controller, giving you a usable record of how your array and battery have performed over time.
Battery type selection is genuinely broad, covering lead-acid presets (GEL, AGM, WET, Crystal, Calcium) and lithium presets (LiFePO4, LTO, LCO) — a wide enough range to suit most battery chemistries used in off-grid, RV, marine, and cabin installations. The housing's IP rating is split by component: IP43 for the internal PCBA and IP22 for the connection area, meaning the internal electronics carry meaningfully more protection than the exposed terminal connections — worth factoring into your mounting location and wiring approach. At 7.7 × 5.5 × 2.9 in and 3.09 lb, the BRAVO 50 is a compact, manageable unit to mount in most installation spaces.
Maximizing Harvest From Your Array
- True MPPT, >99.5% Tracking Efficiency: The controller's algorithm closely follows the array's maximum power point as light conditions change throughout the day.
- Up to 98% Conversion Efficiency: Minimal power loss converting solar input to battery-charging output.
- 100V Max PV Open Circuit Voltage: Accommodates higher-voltage panel string configurations for flexible array wiring designs.
- 50A Max PV Charging Current: Supports a recommended 700W (12V) or 1400W (24V) PV input.
- 12V/24V DC System Self-Adaptation: Automatically adapts to your system voltage without manual configuration.
Features Built for Demanding System Designs
- Common Negative Connection: Supports this specific wiring topology, relevant for certain inverter and multi-component system integrations.
- Charging Data Storage: Records charging history directly on the controller for later review.
- Reverse Discharge Protection: Targeted for accuracy, preventing reverse current flow from the battery back through the array at night.
- Overvoltage Protection: Guards against excessive voltage conditions on either the panel or battery side.
- Conformal Coating on Internal Board: Adds a layer of protection against moisture and contamination for the internal electronics.
Broad Battery Support, Compact Footprint
- Lead-Acid Presets: GEL, AGM, WET, Crystal, and Calcium battery type selections.
- Lithium Presets: LiFePO4, LTO (Lithium Titanate Oxide), and LCO battery type selections.
- In-House Designed and Manufactured: Built and engineered directly by Rich Solar.
- 7.7 × 5.5 × 2.9 in, 3.09 lb: A compact, manageable footprint for most mounting locations.
Full Specifications
| SKU | RS-MPPT50P |
| System Nominal Voltage | 12V/24V Auto |
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 50A |
| Max Recommended PV Input Power | 700W (12V) / 1400W (24V) |
| Charge Conversion Efficiency | Up to 98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Presets | Crystal, GEL, AGM, WET, Calcium, LCO, LFP, LTO |
| Housing Color | Black / Grey |
| IP Grade | IP43 (Internal PCBA) / IP22 (Connection Area) |
| Net Weight | 1.40 kg (3.09 lb) |
| Dimensions | 195 × 140 × 74 mm (7.7 × 5.5 × 2.9 in) |
Best Uses
- Off-grid 12V or 24V systems needing genuine MPPT charging efficiency
- Installations requiring common negative wiring configurations
- Systems wanting onboard charging data history
- Mixed or less common battery chemistries (LTO, LCO, Crystal)
- RV, van, cabin, and marine installations with a sheltered mounting spot
Key Benefits
- 50A MPPT with >99.5% tracking and up to 98% conversion efficiency
- 100V max PV open circuit voltage for flexible panel strings
- Common negative connection and onboard charging data storage
- Conformal-coated internal board for added moisture protection
- Broad battery chemistry support across 8 preset types
- Compact 7.7 × 5.5 × 2.9 in, 3.09 lb footprint
| Specifications | |
| Model SKU | RS-MPPT50P |
|---|---|
| System Nominal Voltage | 12/24V Auto |
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 50A |
| Max. Recommended PV Input Power | 700 Watt (12V) / 1400 Watt (24V) |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.40kg / 3.09lb |
| Dimensions (L*W*H) | 195*140*74 mm / 7.7*5.5*2.9 in |
