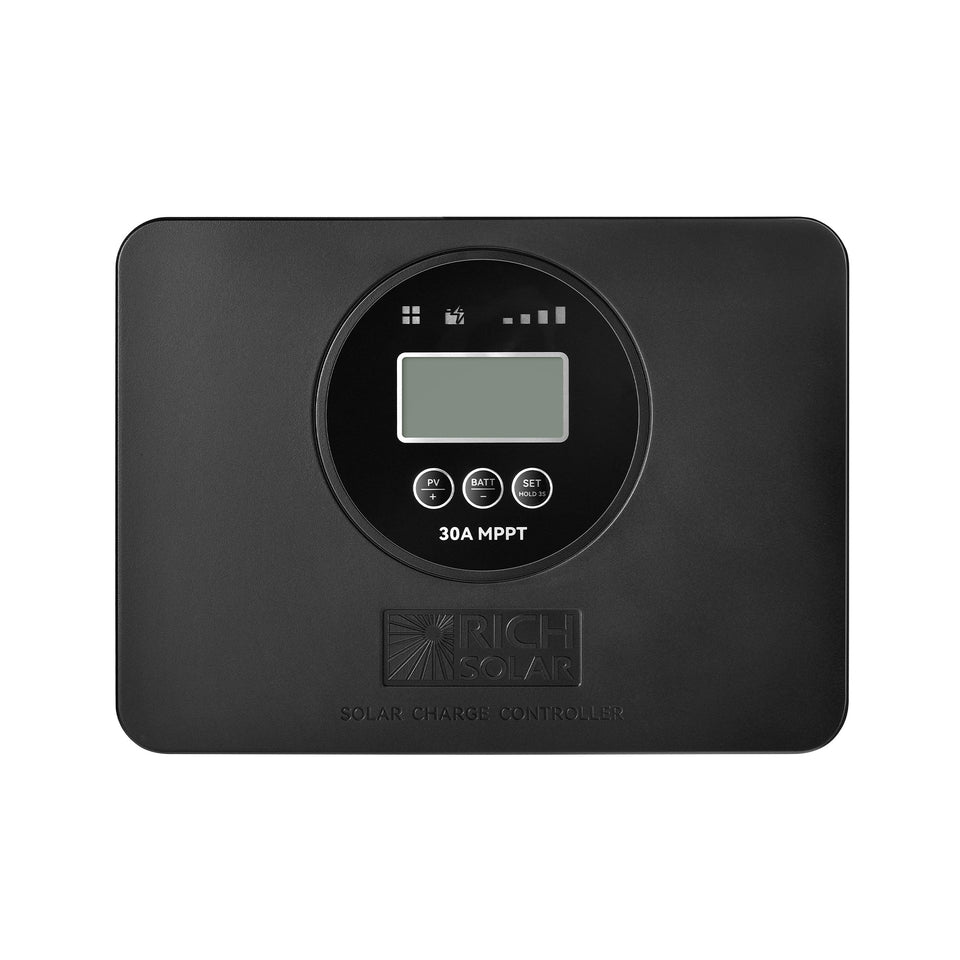

Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth 1 / 9
RICH SOLAR

Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth

SKU: RS-MPPT30FB

Brand RICH SOLAR Out of Stock
$199.99 Out of Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRICH SOLAR warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · RICH SOLAR warranty

No sales tax collected at checkout where applicable.

Key features
  • Maximum Charging Current 30A
  • MPPT Efficiency 99.5%
  • Conversion Efficiency 98%
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner
Build your setup

Add what you need.

Start with your product. Choose the extras that suit your setup.

2 optional add-ons
Your product
Rich Solar BRAVO PRO 30
$199.99Quantity 1
Optional extras
RICH SOLAR

Rich Solar MEGA 250

250 Watt Solar Panel

$299.99
RICH SOLAR

Rich Solar NOVA PURE 2K

2000 Watt (2kW) 12 Volt Industrial Pure Sine Wave Inverter

$319.99
Not sure what your setup needs? We can help you choose the right components.
Ask our team

Quantity

Your selection

Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth

Out of Stock
Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth
Quantity$199.99 each
1
Rich Solar • 30A MPPT • Auto 12V/24V • Bluetooth

BRAVO PRO 30 — Premium 30A 12V/24V MPPT Solar Controller

The BRAVO PRO 30 is a 30-amp MPPT charge controller with automatic 12V/24V detection, a wide 8-100V solar input range, and 99.5% MPPT tracking efficiency for maximizing harvest from your array. Bluetooth and app support give you remote monitoring and parameter adjustment from a smartphone, while broad battery compatibility — GEL, AGM, WET, LiFePO4, LTO, LCO, and customizable profiles — makes it a flexible, premium upgrade pick for mid-to-large 12V or 24V off-grid systems.

30A MPPT, Auto 12V/24V 8–100V Solar Input Range 99.5% MPPT Tracking Efficiency Bluetooth + App Control LCD Display ETL / CE / FCC / RoHS Certified

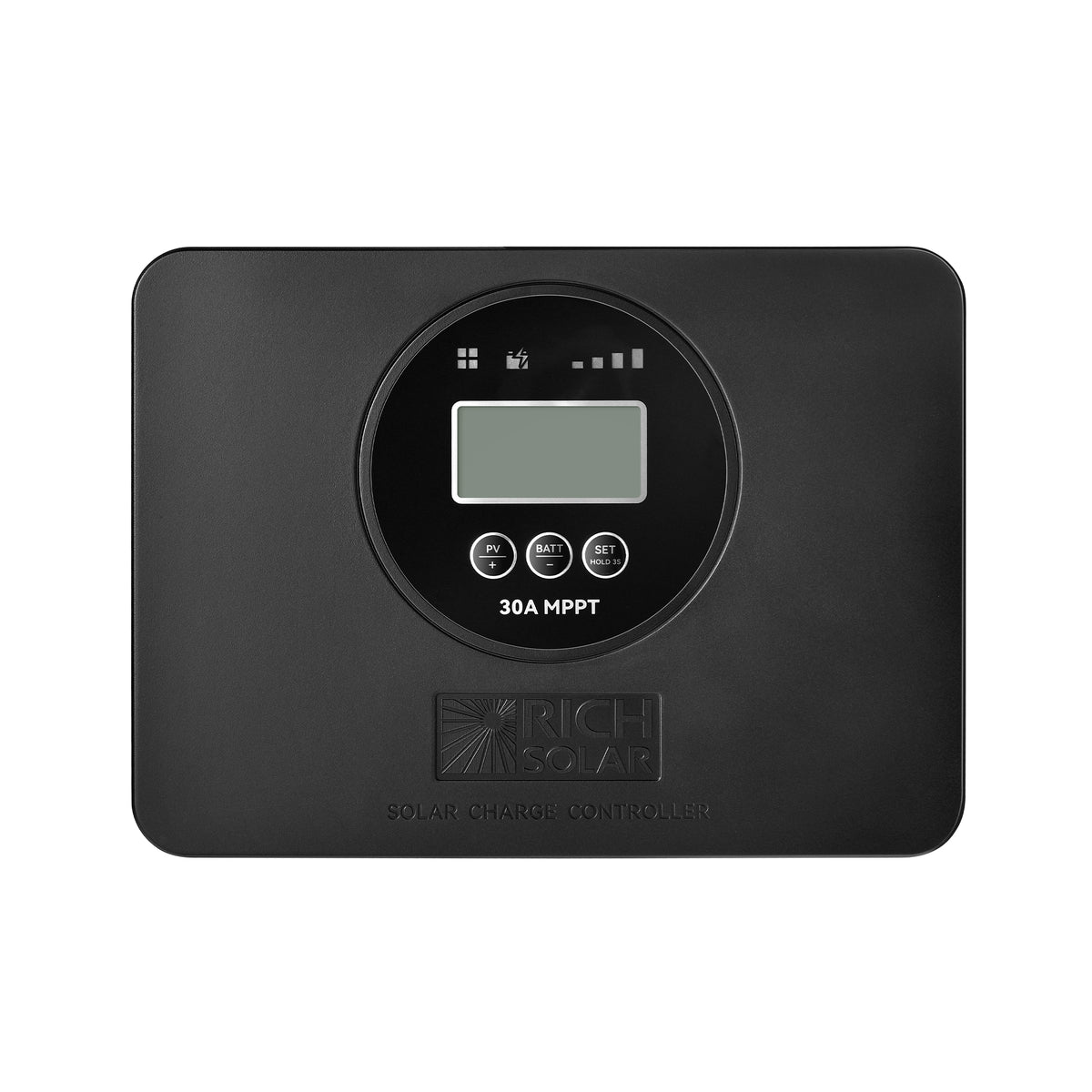

Rich Solar BRAVO PRO 30 amp MPPT solar charge controller with Bluetooth
GEL
AGM
WET
LiFePO4
LTO
LCO
Calcium
Customizable
⚡

99.5% MPPT Tracking, 98% Conversion Efficiency

Advanced MPPT algorithms continuously track the panel array's maximum power point, capturing significantly more usable energy than a PWM controller would from the same array — particularly valuable in variable light conditions throughout the day.

📱

Bluetooth + App Monitoring and Control

Pair with a smartphone app for remote system monitoring and parameter adjustment, complementing the onboard LCD display for at-a-glance status without needing to be physically at the controller.

✓

Auto 12V/24V Detection, Broad Battery Support

Automatically detects whether your system is 12V or 24V, simplifying installation, and supports a wide range of battery chemistries including GEL, AGM, WET, LiFePO4, LTO, LCO, and fully customizable battery profiles.

Product Overview

The BRAVO PRO 30 is a 30-amp MPPT solar charge controller built for off-grid systems where charging efficiency, wider input flexibility, and smart connectivity matter more than a basic PWM controller can offer. MPPT (Maximum Power Point Tracking) charging continuously adjusts to extract the most available power from the connected array, rated here at 99.5% tracking efficiency and 98% overall conversion efficiency — a meaningful harvest improvement over PWM charging, especially with higher-voltage panel strings or in variable light conditions.

The controller accepts a wide 8-100V solar input range with an MPPT voltage tracking range of 15-72VDC, and automatically detects whether the connected battery bank is 12V or 24V, with a recommended solar input power of 500W at 12V or 1000W at 24V. This wide input range and automatic voltage detection make installation straightforward across a range of system configurations without manual setup.

Battery compatibility is broad: GEL, AGM, WET, LiFePO4 (LFP), LTO, LCO, Calcium, and fully customizable battery profiles are all supported. An onboard LCD display shows real-time system status, while Bluetooth connectivity pairs with a smartphone app for remote monitoring and parameter adjustment from anywhere within range. Optional accessories include an external Battery Temperature Sensor and an external digital remote display for those wanting additional monitoring flexibility beyond the controller's built-in screen. At 8.3 × 6.1 × 2.2 in and 1.8 lb, the controller shares the same compact footprint as its 40A sibling in the BRAVO PRO line.

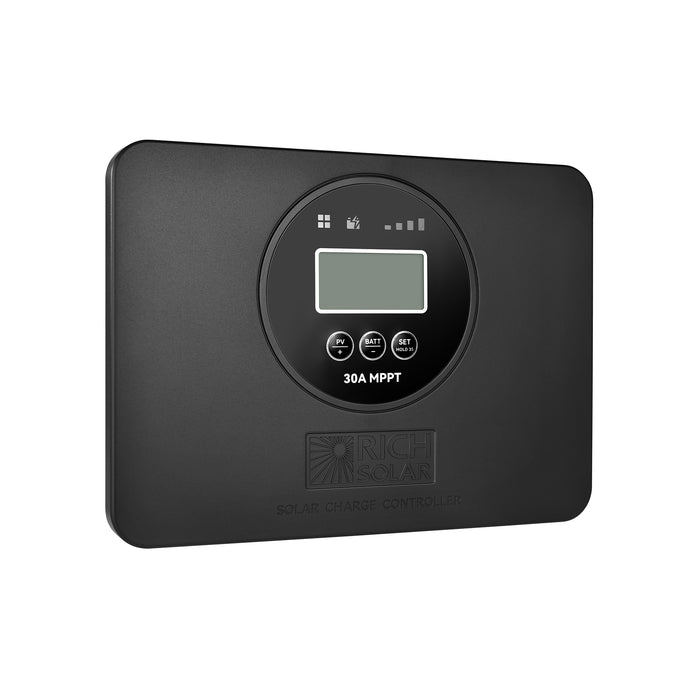

Rich Solar BRAVO PRO 30 MPPT tracking efficiency wide voltage range

Maximizing Harvest From Your Array

  • 99.5% MPPT Tracking Efficiency: The controller's algorithm closely follows the panel array's maximum power point as conditions change throughout the day.
  • 98% Conversion Efficiency: Minimal power loss converting solar input to battery-charging output.
  • 8-100V Solar Input Range: Wide enough to accommodate higher-voltage panel string configurations than a typical PWM controller could handle.
  • 15-72VDC MPPT Voltage Tracking Range: Covers a broad span of array voltages within the overall input range.
  • 30A Maximum Charging Current: Supports a substantial array, with a recommended 500W (12V) or 1000W (24V) panel input.
Rich Solar BRAVO PRO 30 LCD display Bluetooth app monitoring

Monitor and Adjust From Your Phone or the Panel

  • Onboard LCD Display: Real-time system status visible directly on the controller without needing a paired device.
  • Bluetooth + App Support: Remote monitoring and parameter adjustment from a smartphone, useful when the controller is mounted somewhere inconvenient to check regularly.
  • Auto 12V/24V Detection: Simplifies installation by automatically identifying your system voltage rather than requiring manual configuration.
  • Optional External Digital Remote Display: A separately available accessory for additional monitoring flexibility beyond the onboard LCD and app.
  • Optional External Battery Temperature Sensor: A separately available accessory for direct battery temperature readings to improve charging accuracy.

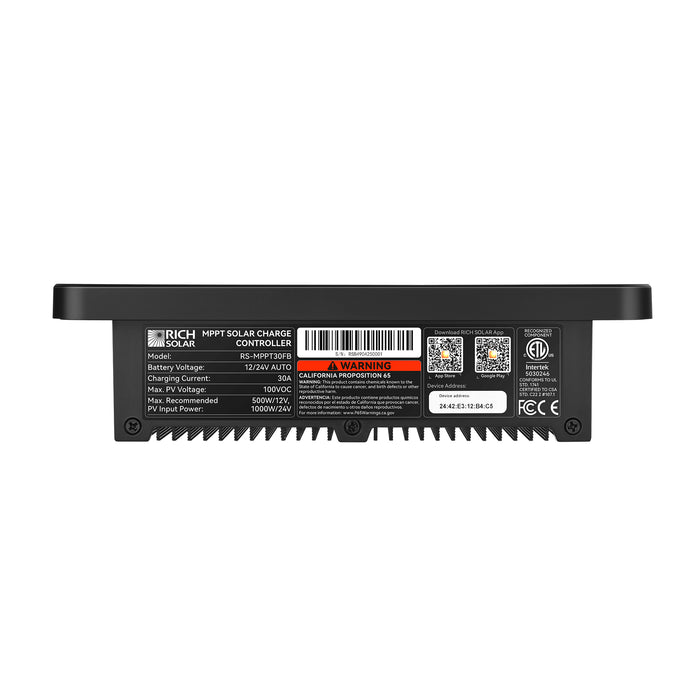

Rich Solar BRAVO PRO 30 battery compatibility protection certification

Wide Battery Support, Multi-Layer Protection

  • GEL / AGM / WET / LiFePO4 / LTO / LCO / Calcium / Customizable: Broad battery chemistry support, including lithium titanate and lithium cobalt oxide options alongside standard lead-acid and LiFePO4 chemistries.
  • Multi-Level Safety Protection: Covers overvoltage, reverse polarity, short circuit, and overheating conditions.
  • ETL, CE, FCC, RoHS Certified: Independently certified across multiple safety and compliance standards.
  • -13°F to 122°F Operating Range: Reliable performance across a wide range of installation climates.

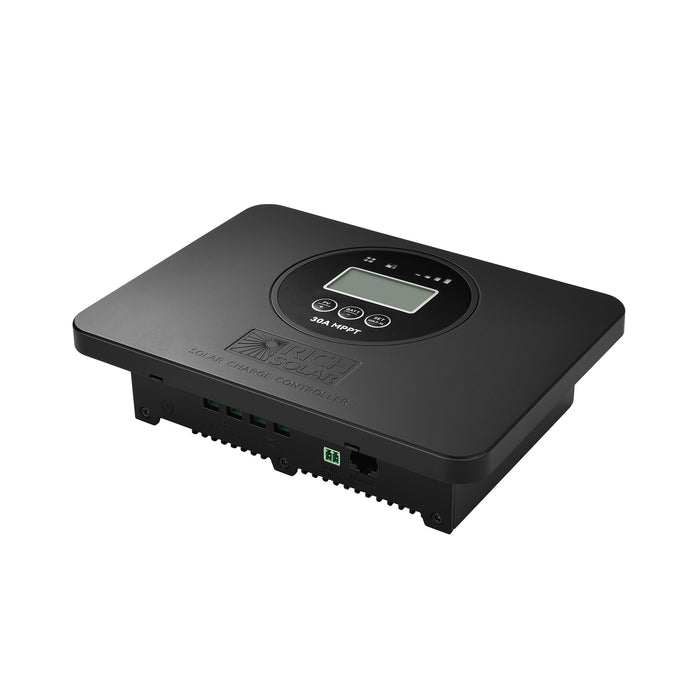

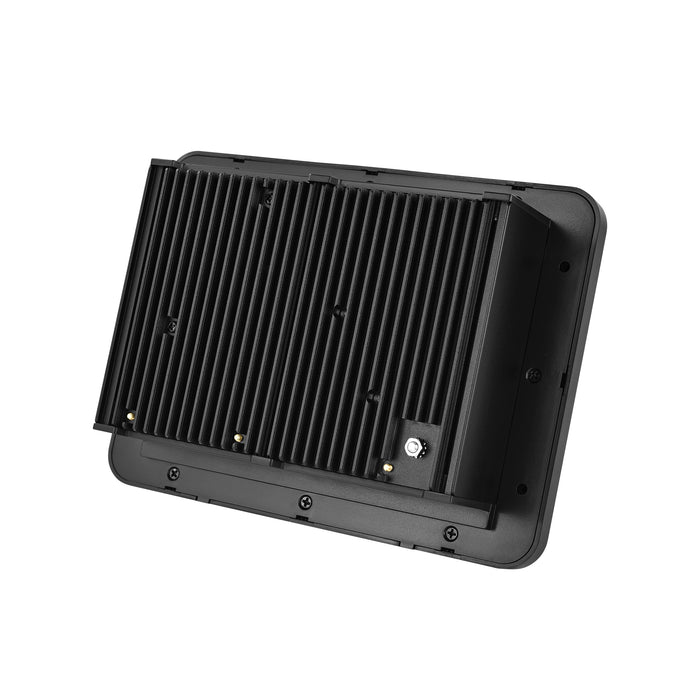

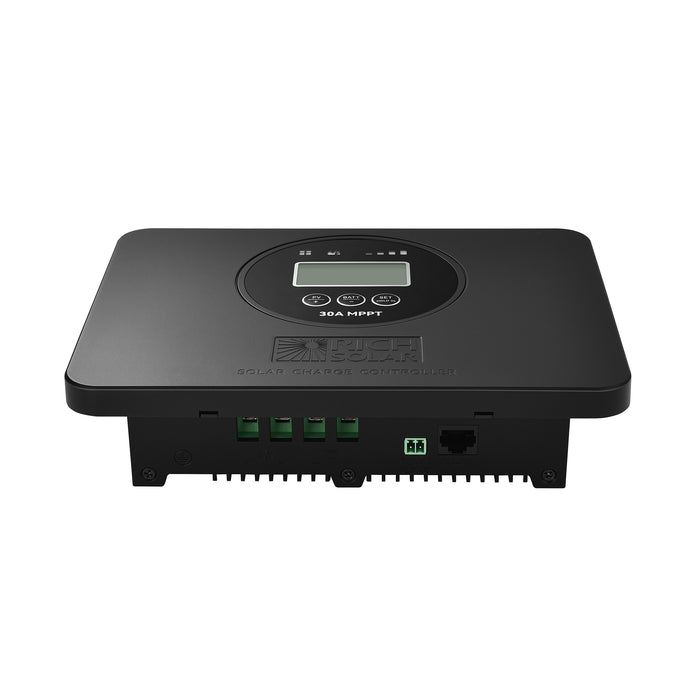

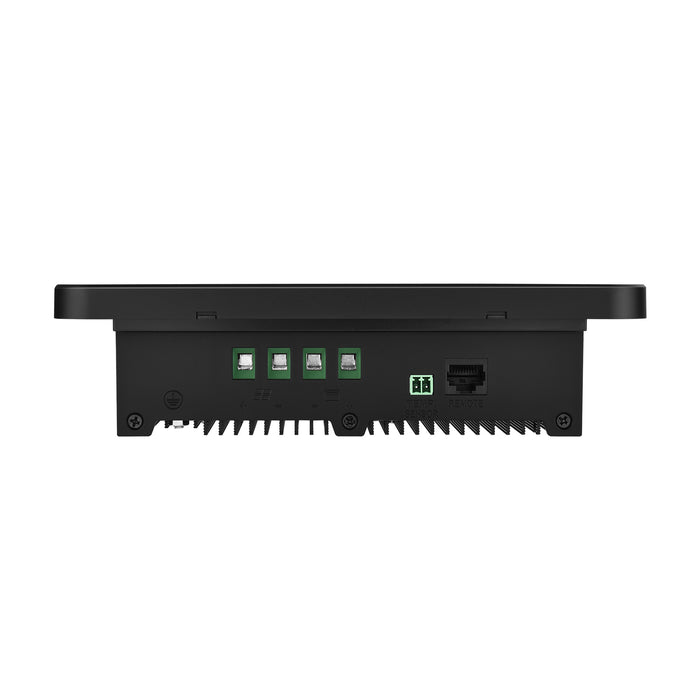

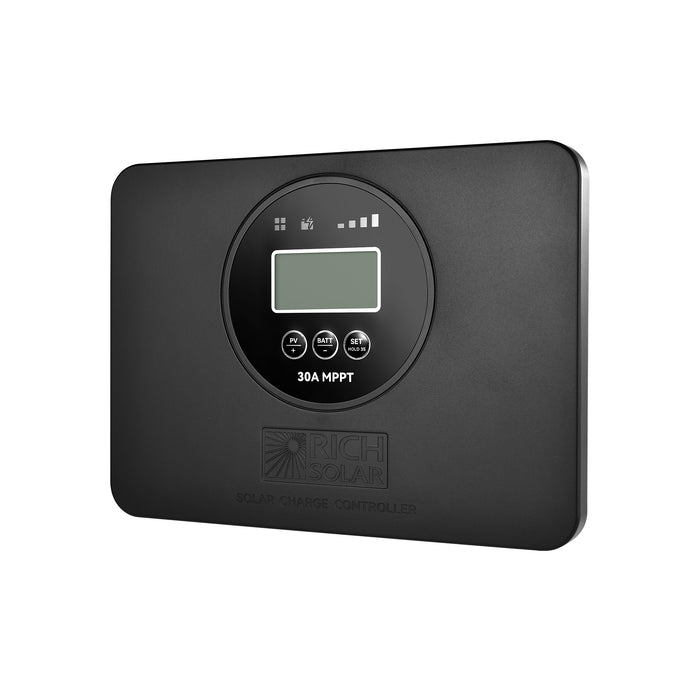

Rich Solar BRAVO PRO 30 front panel detail Rich Solar BRAVO PRO 30 terminal block detail Rich Solar BRAVO PRO 30 mounted installation view Rich Solar BRAVO PRO 30 LCD display close up Rich Solar BRAVO PRO 30 app interface paired with controller

Full Specifications

SKU RS-MPPT30FB
System Nominal Voltage 12V/24V Auto-Detect
Max Solar Input Current 30A
Max Charging Current 30A
Recommended Solar Input Power 500W (12V) / 1000W (24V)
Solar Input Voltage Range 8–100V
MPPT Voltage Tracking Range 15–72VDC
Standby Current 10mA
Charging Technology MPPT
MPPT Efficiency 99.5%
Conversion Efficiency 98%
IP Grade IP43
Operating Temperature -13°F to 122°F
Bluetooth Yes
Optional Accessories External BTS, External Digital Remote Display
Dimensions 8.3 × 6.1 × 2.2 in
Weight 1.8 lb
Certifications ETL, CE, FCC, RoHS

Best Uses

  • Mid-to-large 12V or 24V off-grid systems needing MPPT efficiency
  • RV, cabin, and van builds with higher-voltage panel string wiring
  • Systems wanting Bluetooth/app-based remote monitoring
  • Mixed or less common battery chemistries (LTO, LCO, customizable)
  • Installations with a protected, sheltered mounting location

Key Benefits

  • 30A MPPT with 99.5% tracking and 98% conversion efficiency
  • Auto 12V/24V detection simplifies installation
  • 8-100V wide solar input range for higher-voltage panel strings
  • Bluetooth + app monitoring alongside onboard LCD display
  • Broad battery chemistry support, including LTO, LCO, customizable
  • ETL, CE, FCC, RoHS certified
Compatibility note: Size your panel array to the recommended 500W (12V) or 1000W (24V) input power for optimal MPPT performance. This controller carries an IP43 rating, suited to a sheltered or semi-protected mounting location rather than direct, sustained outdoor exposure — choose a mounting spot accordingly.

Size the charging system

Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.

Compare another size

Compare Rich Solar BRAVO PRO 40 by output, dimensions and connection limits before choosing.

Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth

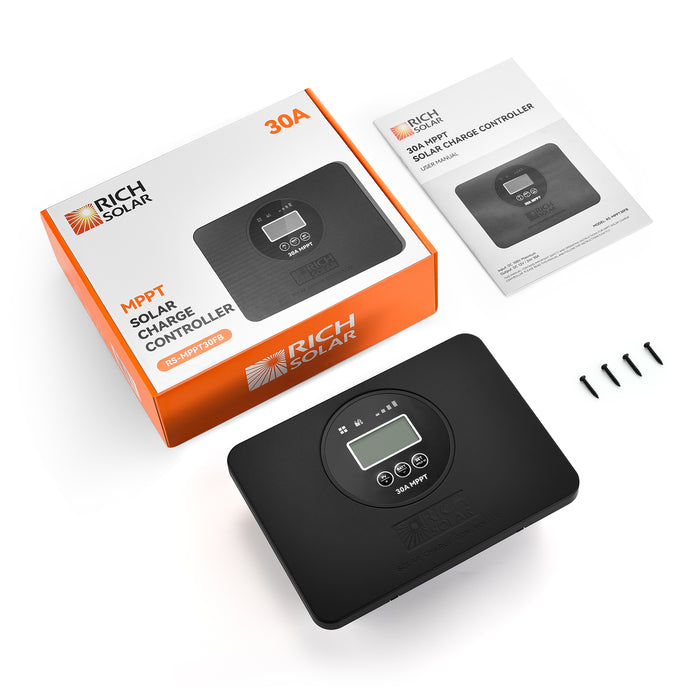

Package Includes
1x Rich Solar BRAVO PRO 30 | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth
Includes the selected item based on the current package option.
Specifications
Selected variant SKU RS-MPPT30FB
System Nominal Voltage 12V/24V Auto
Maximum Solar Input Current 30A
Maximum Charging Current 30A
Recommended Solar Input Power 500W(12V)/1000W(24V)
Solar Input Voltage Range 8-100V
Standby Current 10mA
Charging Technology MPPT
MPPT Voltage Tracking Range 15-72VDC
MPPT Efficiency 99.5%
Conversion Efficiency 98%
Battery Compatibility GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery
IP Grade IP43
Operating Temperature -13℉ ~ 122℉
Bluetooth Yes
Options External Battery Temperature Sensor; External Digital Remote Display
Dimensions 8.3 × 6.1 × 2.2 in
Weight 1.8 lb
Certifications ETL, CE, FCC, RoHS
100V Max PV Open Circuit Voltage Supports flexible solar panel configurations.
Built-In Bluetooth Monitoring View real-time charging status through the RICH SOLAR App.
Package Dimensions 10 × 8 × 4 in
Gross Weight 3 lb
Nominal System Voltage 12V/24V (Auto-Detection)
Max PV Open-Circuit Voltage 100VDC
MPPT Voltage Range 15–72VDC
Soft Start Voltage 5–10VDC
Bulk Charge Current 30A Max
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Product Document
Supporting documentation for this product.
View PDF
📄
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How should I qualify a panel string for the BRAVO PRO 30? The official limits list recommended PV power 500W(12V)/1000W(24V), published PV voltage limit or range 8-100V, MPPT tracking range 15-72VDC. Check the final series-parallel array against voltage, current, and power simultaneously, including open-circuit voltage in the lowest expected temperature. A panel layout can fit the wattage recommendation and still exceed the controller's voltage or current limit. Where does the MPPT charging approach of the BRAVO PRO 30 fit best? This is an MPPT controller, so it can track the array's operating point and convert available PV voltage into battery-charging power within its published limits. That does not make every high-voltage string compatible: the array must remain inside the controller's input and tracking ranges. Will the BRAVO PRO 30 work with my lithium or lead-acid battery bank? The published system-voltage information is 12V/24V Auto. RICH SOLAR lists: Wide Battery Compatibility - Works with GEL, AGM, WET, CALCIUM, LiFePO ₄ , LTO, and LCO. Confirm the selected profile, charge voltages, temperature behavior, BMS limits, and equalization rules against the exact battery manufacturer. A chemistry name by itself is not enough to approve the settings. How should I interpret the BRAVO PRO 30's charging-current rating? 30A is the published charging or controller-current figure, not a guaranteed all-day output. Actual battery current depends on usable panel power, sunlight, array voltage, battery voltage, charging stage, battery acceptance, temperature, wiring loss, and any loads consuming solar energy while charging. How is Bluetooth access provided for the BRAVO PRO 30? The official page lists built-in Bluetooth or direct app support for this exact model. Confirm the required application and supported settings, but a separate Bluetooth dongle should not be assumed necessary when the listed controller itself provides the radio. Is the BRAVO PRO 30 protected enough for an exposed installation at IP43? IP43 is the published enclosure or protection grade for this exact controller. Use it to judge exposure rather than assuming every “RV,” “marine,” or “waterproof” controller can be mounted anywhere. Protect connections, follow the specified mounting orientation, preserve cooling, and avoid conditions beyond the rating.
