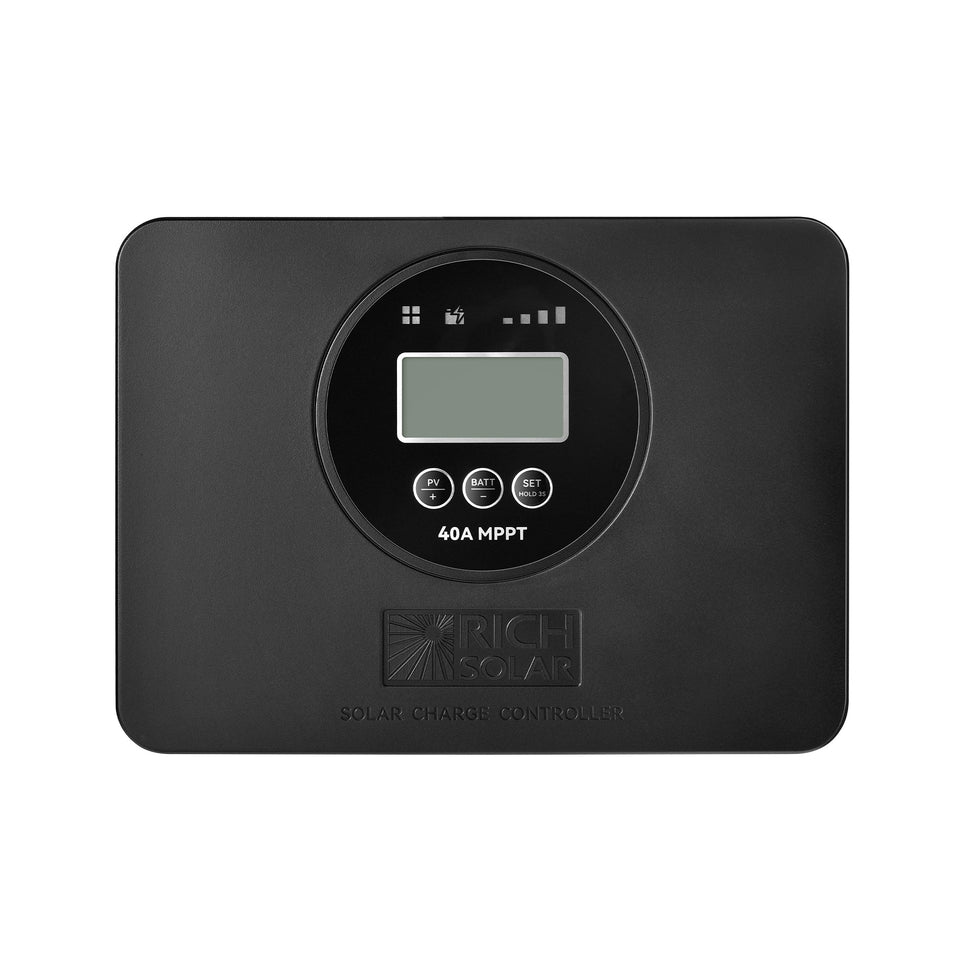

Rich Solar BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth
Frequently Bought Together
BRAVO PRO 40 — Premium 40A 12V/24V MPPT Solar Controller
The BRAVO PRO 40 is a 40-amp MPPT charge controller with automatic 12V/24V detection, a wide 8-100V solar input range, and 99.5% MPPT tracking efficiency for maximizing harvest from your array. Bluetooth and app support give you remote monitoring and parameter adjustment from a smartphone, while broad battery compatibility — GEL, AGM, WET, LiFePO4, LTO, LCO, and customizable profiles — makes it a flexible, premium upgrade pick for larger, more demanding 12V or 24V off-grid systems.
99.5% MPPT Tracking, 98% Conversion Efficiency
Advanced MPPT algorithms continuously track the panel array's maximum power point, capturing significantly more usable energy than a PWM controller would from the same array — particularly valuable in variable light conditions throughout the day.
Bluetooth + App Monitoring and Control
Pair with a smartphone app for remote system monitoring and parameter adjustment, complementing the onboard LCD display for at-a-glance status without needing to be physically at the controller.
Auto 12V/24V Detection, Broad Battery Support
Automatically detects whether your system is 12V or 24V, simplifying installation, and supports a wide range of battery chemistries including GEL, AGM, WET, LiFePO4, LTO, LCO, and fully customizable battery profiles.
Product Overview
The BRAVO PRO 40 is a 40-amp MPPT solar charge controller built for larger, more demanding 12V or 24V off-grid systems. MPPT (Maximum Power Point Tracking) charging continuously adjusts to extract the most available power from the connected array, rated here at 99.5% tracking efficiency and 98% overall conversion efficiency — a meaningful harvest improvement over standard PWM charging, especially with higher-voltage panel strings or in variable light conditions throughout the day.
The controller accepts a wide 8-100V solar input range with an MPPT voltage tracking range of 15-72VDC, and automatically detects whether the connected battery bank is 12V or 24V, with a recommended solar input power of 600W at 12V or 1200W at 24V. This wide input range and automatic voltage detection make installation straightforward across a range of system configurations without manual setup.
Battery compatibility is genuinely broad: GEL, AGM, WET, LiFePO4 (LFP), LTO, LCO, Calcium, and fully customizable battery profiles are all supported, making this a flexible controller across nearly any battery chemistry you're likely to run. An onboard LCD display shows real-time system status, while Bluetooth connectivity pairs with a smartphone app for remote monitoring and parameter adjustment from anywhere within range. Optional accessories include an external Battery Temperature Sensor and an external digital remote display for those wanting additional monitoring flexibility beyond the controller's built-in screen.
Maximizing Harvest From Your Array
- 99.5% MPPT Tracking Efficiency: The controller's algorithm closely follows the panel array's maximum power point as conditions change throughout the day.
- 98% Conversion Efficiency: Minimal power loss converting solar input to battery-charging output.
- 8-100V Solar Input Range: Wide enough to accommodate higher-voltage panel string configurations for larger, more efficient array wiring.
- 15-72VDC MPPT Voltage Tracking Range: Covers a broad span of array voltages within the overall input range.
- 40A Maximum Charging Current: Supports a substantial array, with a recommended 600W (12V) or 1200W (24V) panel input.
Monitor and Adjust From Your Phone or the Panel

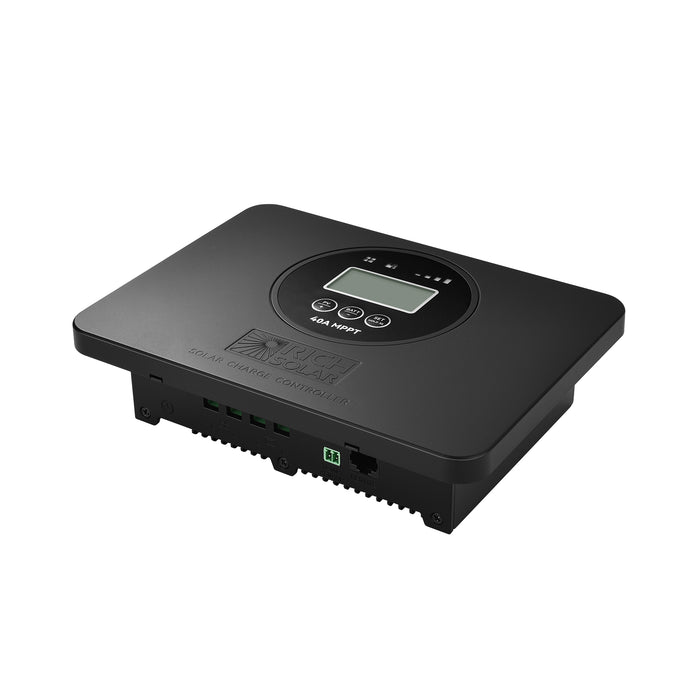

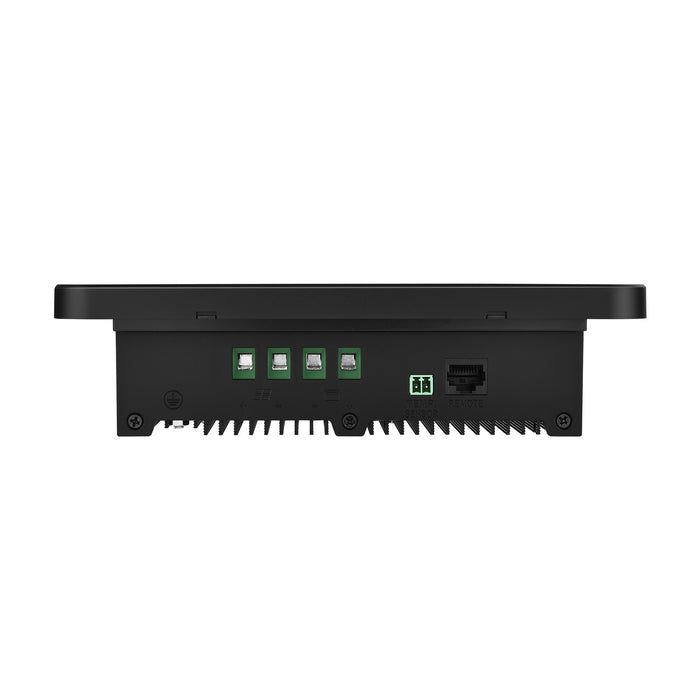

- Onboard LCD Display: Real-time system status visible directly on the controller without needing a paired device.
- Bluetooth + App Support: Remote monitoring and parameter adjustment from a smartphone, useful when the controller is mounted somewhere inconvenient to check regularly.
- Auto 12V/24V Detection: Simplifies installation by automatically identifying your system voltage rather than requiring manual configuration.
- Optional External Digital Remote Display: A separately available accessory for additional monitoring flexibility beyond the onboard LCD and app.
- Optional External Battery Temperature Sensor: A separately available accessory for direct battery temperature readings to improve charging accuracy.
Wide Battery Support, Multi-Layer Protection
- GEL / AGM / WET / LiFePO4 / LTO / LCO / Calcium / Customizable: Broad battery chemistry support, including lithium titanate and lithium cobalt oxide options alongside standard lead-acid and LiFePO4 chemistries.
- Multi-Level Safety Protection: Covers overvoltage, reverse polarity, short circuit, and overheating conditions.

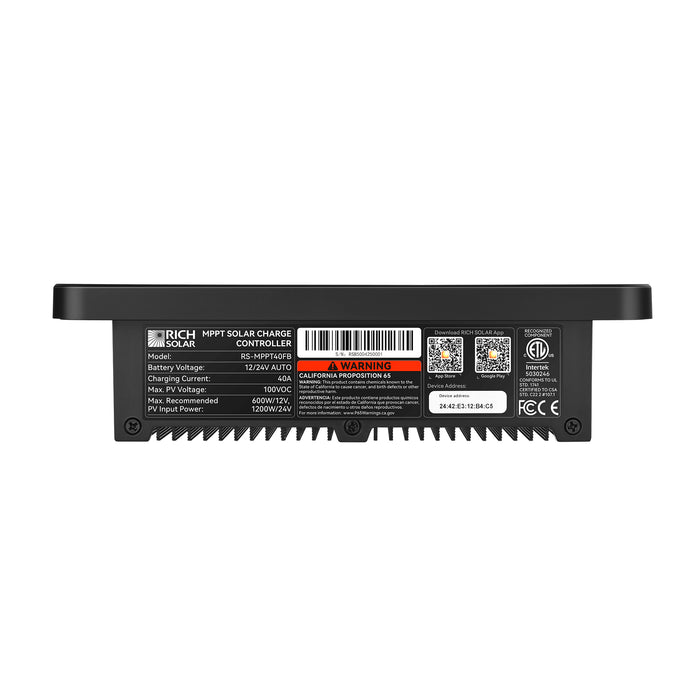

- ETL, CE, FCC, RoHS Certified: Independently certified across multiple safety and compliance standards.
- -13°F to 122°F Operating Range: Reliable performance across a wide range of installation climates.
Full Specifications
| SKU | RS-MPPT40FB |
| System Nominal Voltage | 12V/24V Auto-Detect |
| Max Solar Input Current | 40A |
| Max Charging Current | 40A |
| Recommended Solar Input Power | 600W (12V) / 1200W (24V) |
| Solar Input Voltage Range | 8–100V |
| MPPT Voltage Tracking Range | 15–72VDC |
| Standby Current | 10mA |
| Charging Technology | MPPT |
| MPPT Efficiency | 99.5% |
| Conversion Efficiency | 98% |
| IP Grade | IP43 |
| Operating Temperature | -13°F to 122°F |
| Bluetooth | Yes |
| Optional Accessories | External BTS, External Digital Remote Display |
| Dimensions | 8.3 × 6.1 × 2.2 in |
| Weight | 1.8 lb |
| Certifications | ETL, CE, FCC, RoHS |
Best Uses
- Larger 12V or 24V off-grid systems needing MPPT efficiency
- RV, cabin, and van builds with higher-voltage panel string wiring
- Systems wanting Bluetooth/app-based remote monitoring
- Mixed or less common battery chemistries (LTO, LCO, customizable)
- Installations with a protected, sheltered mounting location
Key Benefits
- 40A MPPT with 99.5% tracking and 98% conversion efficiency
- Auto 12V/24V detection simplifies installation
- 8-100V wide solar input range for higher-voltage panel strings
- Bluetooth + app monitoring alongside onboard LCD display
- Broad battery chemistry support, including LTO, LCO, customizable
- ETL, CE, FCC, RoHS certified
| Specifications | |
| Model SKU | RS-MPPT40FB |
|---|---|
| System Nominal Voltage | 12V/24V Auto |
| Maximum Solar Input Current | 40A |
| Maximum Charging Current | 40A |
| Recommended Solar Input Power | 600W(12V)/1200W(24V) |
| Solar Input Voltage Range | 8-100V |
| Standby Current | 10mA |
| Charging Technology | MPPT |
| MPPT Voltage Tracking Range | 15-72VDC |
| MPPT Efficiency | 99.5% |
| Conversion Efficiency | 98% |
| Battery Compatibility | GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery |
| IP Grade | IP43 |
| Operating Temperature | -13℉ ~ 122℉ |
| Bluetooth | Yes |
| Options | External Battery Temperature Sensor; External Digital Remote Display |
| Dimensions | 8.3 × 6.1 × 2.2 in |
| Weight | 1.8 lb |
| Certifications | ETL, CE, FCC, RoHS |
