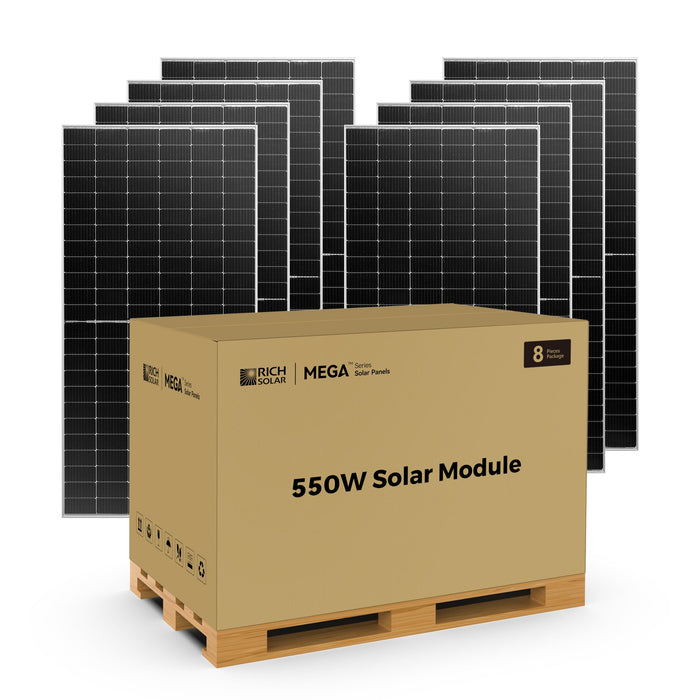

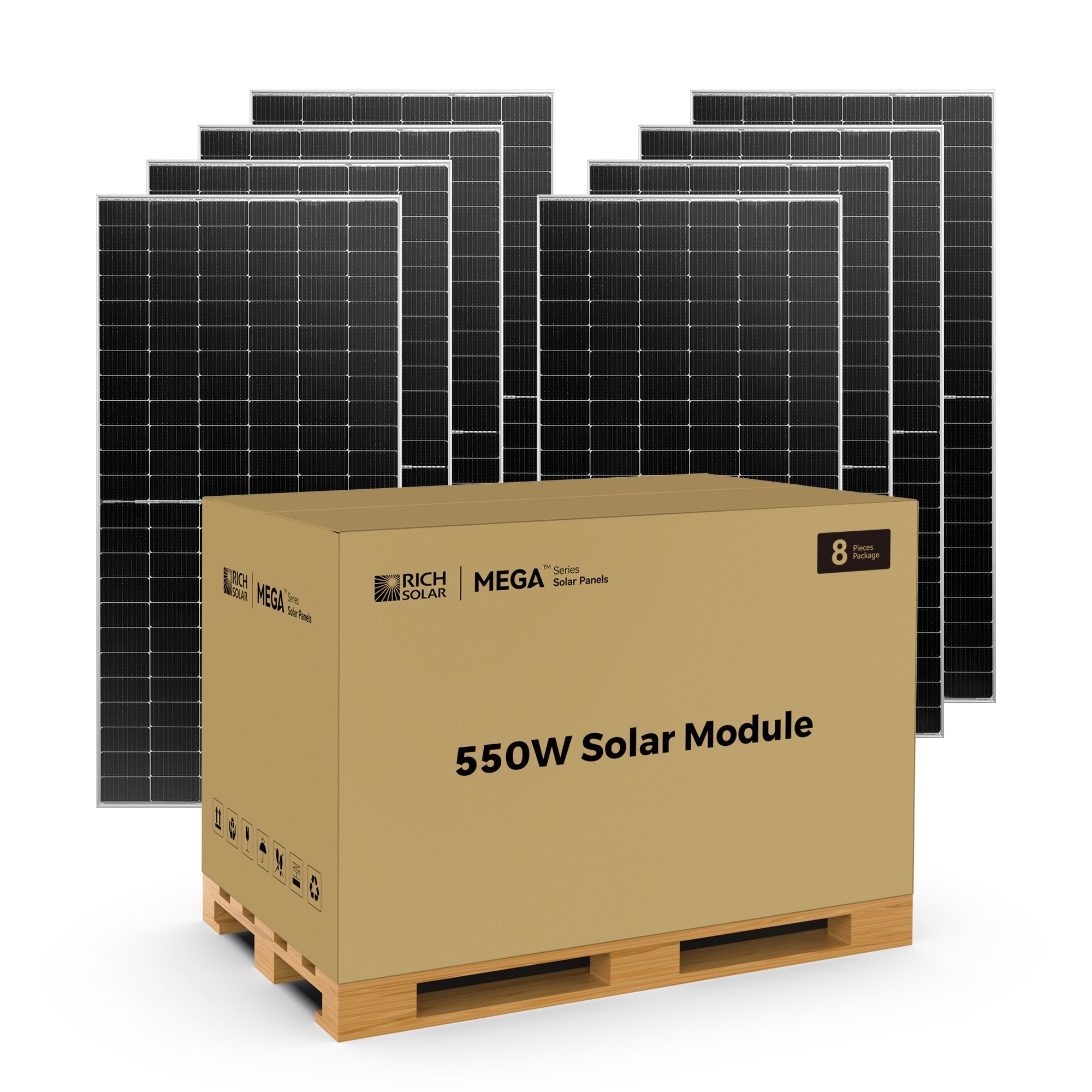

Rich Solar MEGA 550 | 550 Watt Bifacial Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 8 Solar Panels Rich Solar MEGA 550 | 550 Watt Bifacial Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty

How much mounting space and weight allowance does the MEGA 550 require? The published panel dimensions are 89.7 x 44.7 x 1.4 in, and the listed weight is 73.2 lb. Measure the complete mounting envelope - not only the module face - and leave room for clamps or brackets, cable routing, roof hardware, ventilation, and service access. On a mobile installation, confirm the structure and rack can handle both the panel weight and travel loads. How should I use the MEGA 550's Voc and Isc when sizing an MPPT controller? At maximum power, the MEGA 550 is listed at 42.0 V and 13.1 A; its open-circuit voltage is 49.8 V and short-circuit current is 14.0 A. Use Vmp and Imp to estimate normal array operation, but use the applicable Voc and Isc calculations when checking controller limits, series strings, parallel current, conductor size, and protection. Can the MEGA 550 be connected straight to a nominal-voltage battery bank? No solar module should be approved for direct battery charging from a nominal-voltage label alone. The MEGA 550's published operating values are 42.0 V at maximum power and 49.8 V open circuit. A compatible charge controller must accept the final array voltage and current and provide the charging profile required by the battery bank. Is 550W a constant output figure for the MEGA 550? 550W is the module's published nameplate power under standardized test conditions, not a constant field output. Cell temperature, sun angle, shade, cloud cover, dirt, wiring loss, controller efficiency, and battery state all affect measured production. Estimate the purchase from expected daily energy at the installation site, not by multiplying 550W by every daylight hour. What installation conditions let the MEGA 550's rear cells contribute meaningful energy? The rear side needs reflected light, so mounting height, row spacing, surface brightness, shading, and obstructions behind the panel all matter. RICH SOLAR states: "Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo." Treat that as condition-dependent upside rather than guaranteed energy; a dark roof mounted tight to the module will not behave like a bright, elevated ground array. What cable and connector details matter when installing the MEGA 550? RICH SOLAR lists the following factory connection details: MC4 connectors with 4 ft pre-attached cables for quick and easy installation. Panel Leads (Pair): 12 AWG, 4 ft each. Confirm polarity, lead length, conductor size, and the distance to the combiner or controller before ordering extensions. Factory leads do not automatically include every adapter, branch connector, roof entry, fuse, disconnect, or extension cable required by the final layout.
