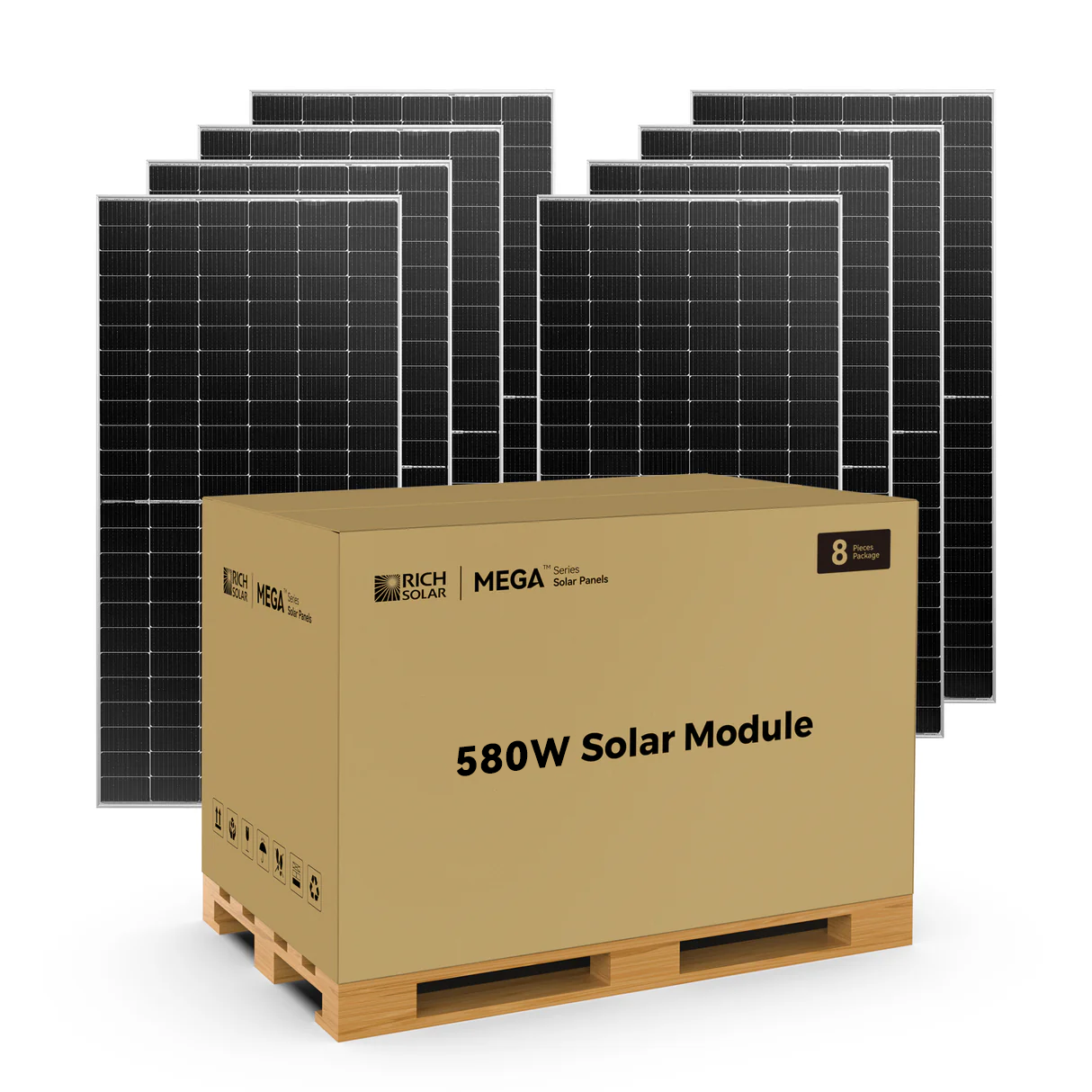

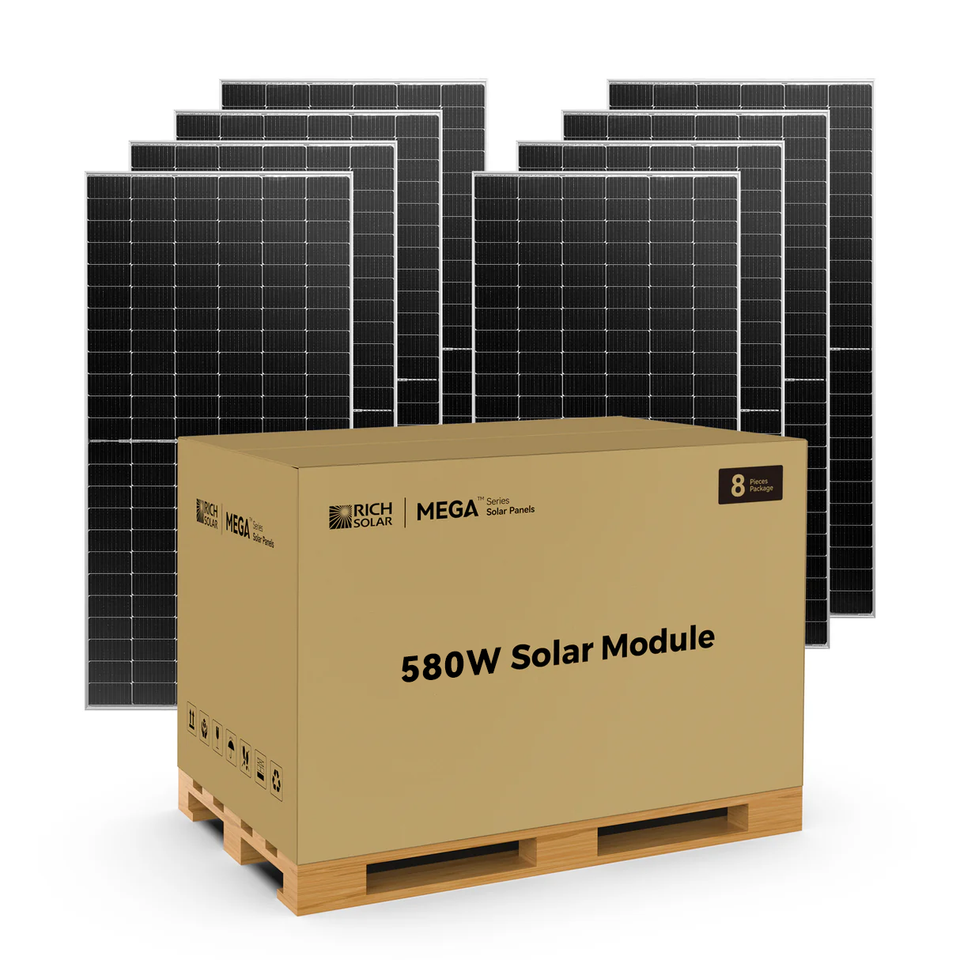

Rich Solar MEGA 580 BIFACIAL | 580 Watt Bifacial Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 8 Solar Panels Rich Solar MEGA 580 BIFACIAL | 580 Watt Bifacial Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty

What are the installed dimensions and panel weight of the MEGA 580 BIFACIAL? The published panel dimensions are 89.7 x 44.7 x 1.2 in, and the listed weight is 68.8 lb. Measure the complete mounting envelope - not only the module face - and leave room for clamps or brackets, cable routing, roof hardware, ventilation, and service access. On a mobile installation, confirm the structure and rack can handle both the panel weight and travel loads. Can my existing solar controller safely accept the MEGA 580 BIFACIAL? At maximum power, the MEGA 580 BIFACIAL is listed at 42.7 V and 13.6 A; its open-circuit voltage is 51.4 V and short-circuit current is 14.3 A. Use Vmp and Imp to estimate normal array operation, but use the applicable Voc and Isc calculations when checking controller limits, series strings, parallel current, conductor size, and protection. What does the nominal-voltage description actually mean on the MEGA 580 BIFACIAL? No solar module should be approved for direct battery charging from a nominal-voltage label alone. The MEGA 580 BIFACIAL's published operating values are 42.7 V at maximum power and 51.4 V open circuit. A compatible charge controller must accept the final array voltage and current and provide the charging profile required by the battery bank. What does the MEGA 580 BIFACIAL's 580 W nameplate rating mean in actual use? 580 W is the module's published nameplate power under standardized test conditions, not a constant field output. Cell temperature, sun angle, shade, cloud cover, dirt, wiring loss, controller efficiency, and battery state all affect measured production. Estimate the purchase from expected daily energy at the installation site, not by multiplying 580 W by every daylight hour. How can mounting height and ground reflectivity affect bifacial gain from the MEGA 580 BIFACIAL? The rear side needs reflected light, so mounting height, row spacing, surface brightness, shading, and obstructions behind the panel all matter. RICH SOLAR states: "Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo." Treat that as condition-dependent upside rather than guaranteed energy; a dark roof mounted tight to the module will not behave like a bright, elevated ground array. What leads and connectors are already attached to the MEGA 580 BIFACIAL? RICH SOLAR lists the following factory connection details: MC4 connectors with 4 ft pre-attached cables for quick and easy installation. Panel Leads (Pair): 12 AWG, 4 ft each. Confirm polarity, lead length, conductor size, and the distance to the combiner or controller before ordering extensions. Factory leads do not automatically include every adapter, branch connector, roof entry, fuse, disconnect, or extension cable required by the final layout. How do I protect a multi-panel array built with the MEGA 580 BIFACIAL? RICH SOLAR lists a maximum system voltage of 1500 VDC and a maximum series-fuse rating of 30 A for this module. Those are panel ratings, not permission to use the same string length or fuse in every installation. The controller or inverter input limits, conductor ampacity, parallel-string current, local code, and lowest expected temperature can require lower design limits.
