Renogy Adventurer Li 30A PWM Flush Mount Charge Controller w/ LCD Display
Adventurer Li 30A PWM Charge Controller

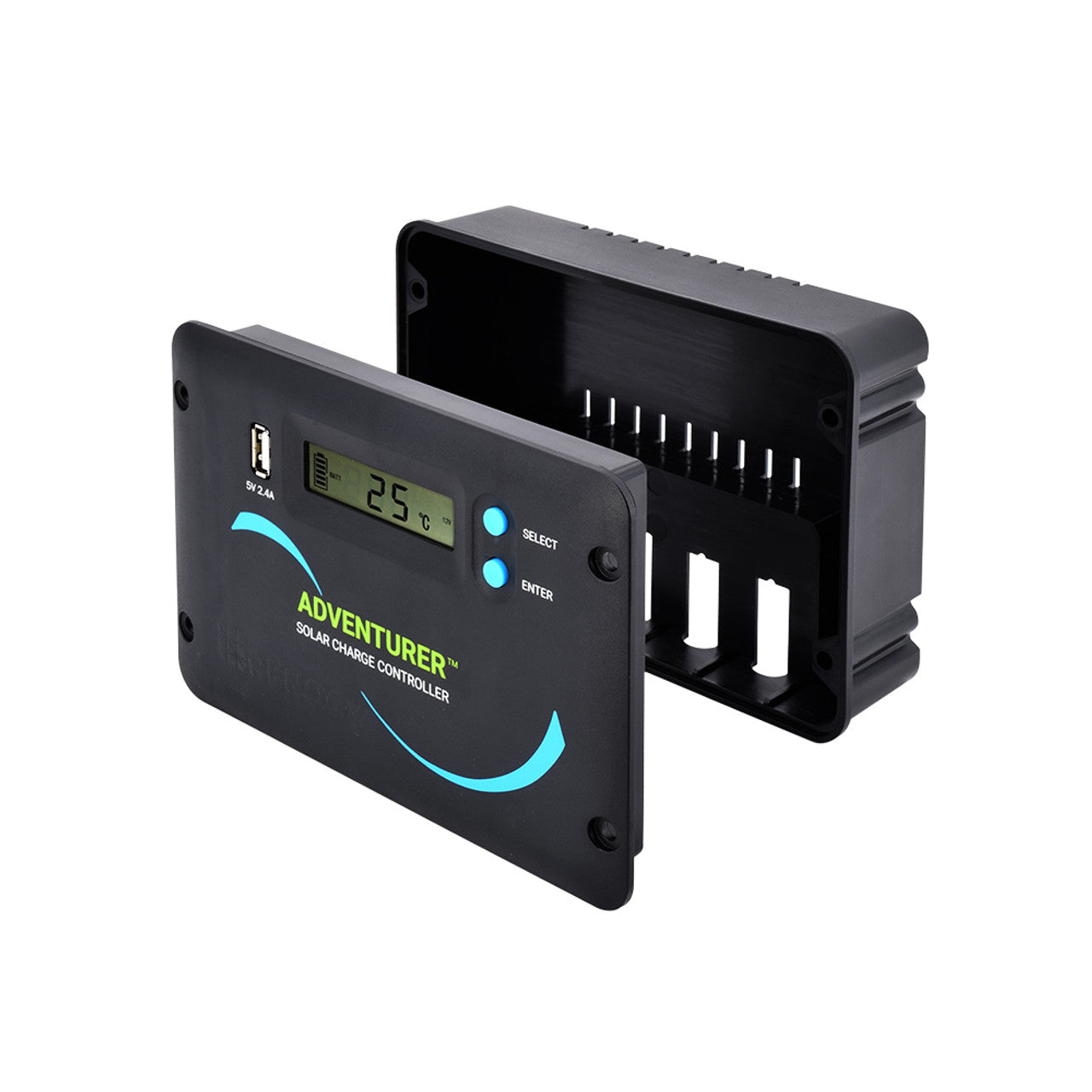

The Renogy Adventurer Li 30A PWM Flush Mount Charge Controller with LCD Display is designed for 12VDC or 24VDC solar-battery systems. It provides 30A of rated charging current in a flush-mount format and supports Sealed, Gel, Flooded, and Lithium batteries. The included Adventurer surface mount supports installation where a built-in controller is preferred, while the LCD display provides an on-device interface for system information.
PV Input and System Sizing
For system sizing, the controller accepts up to 50VDC of PV input. Maximum PV input power is listed as 400W for 12V systems and 800W for 24V systems. Match the array, battery voltage, conductors, and charge current to these limits before installation; do not use the higher 24V figure for a 12V system.
Battery Charging Profiles
Charging parameters vary by battery type. Renogy lists lithium, sealed, gel, and flooded battery support, with battery-specific boost settings and separate equalization values for sealed and flooded batteries; gel equalization is listed as none. The controller also uses temperature compensation and lists a 13.8V float voltage, so select the battery setting that matches the installed battery chemistry.
Mounting and Installation Fit
The flush-mount housing measures 6.56 x 4.50 x 1.90 inches and weighs 0.6 lb. Check the available opening, attachment surface, cable routing, and service clearance before ordering. Terminals accept conductors up to 8 AWG. The listed operating temperature range is -13°F to 131°F, and the enclosure is rated IP20, so installation should account for the product’s stated environmental limits.
USB Output and Optional Connectivity
A 5V, 2.4A maximum USB output is available for compatible low-power USB devices. Self-consumption is listed as 13mA or less. For optional connectivity, the RS232 interface supports the Renogy BT-1 Bluetooth Module and Renogy DC Home App according to the supplied product information. The package listing identifies the charge controller; verify any additional hardware needed for the specific installation.
| Renogy 30A PWM Flush Mount Charge Controller | |
| Model SKU | RNG-CTRL-ADV30-LI-G2-US |
|---|---|
| Specifications | |
| Nominal Voltage | 12VDC / 24VDC |
| Rated Charge Current | 30A |
| Max. PV Input Voltage | 50VDC |
| Max. PV Input Power | 12V: 400W; 24V: 800W |
| Equalization Voltage | Sealed: 14.6V; Gel: None; Flooded: 14.8V |
| Boost Voltage | Sealed: 14.4V; Gel: 14.2V; Flooded: 14.6V; Lithium: 14.2V |
| Float Voltage | 13.8V |
| Self-Consumption | ≤13mA |
| USB Output | 5V, 2.4A Max |
| Temperature Compensation Coefficient | -3mV / °C / 2V |
| Operating Temperature | -13°F to 131°F |
| Storage Temperature | -31°F to 176°F |
| Enclosure | IP20 |
| Dimensions | 6.56 x 4.50 x 1.90 in |
| Terminals | Up to 8 AWG |
| Weight | 0.6 lbs |
| Compatible Bluetooth | Renogy BT-1 Bluetooth Module |
| Certifications | |
| CE | Yes |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
