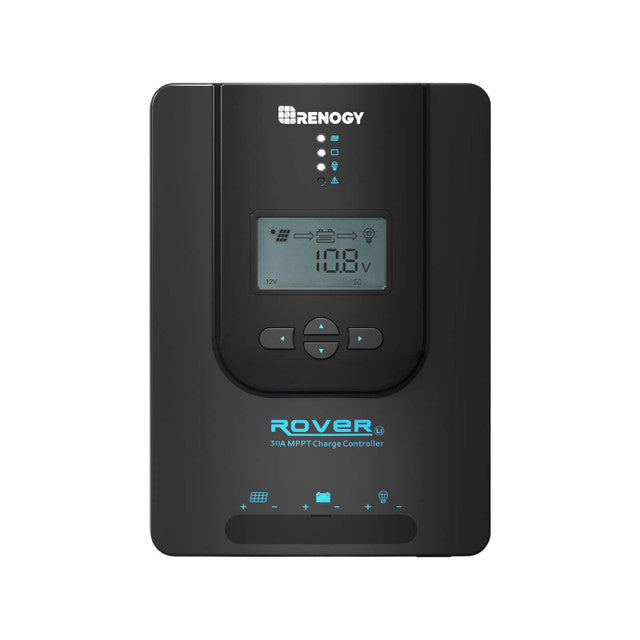

Renogy Rover Li 30A MPPT Solar Charge Controller
Rover Li MPPT Charging
Rover Li 30 Amp MPPT Solar Charge Controller
Support efficient battery charging for compatible off-grid systems with a Rover Li MPPT controller designed for protection, heat dissipation and lithium battery activation.
Upgrade Your Charging Controller
The Rover Li 30A is built to manage solar charging efficiently for compatible off-grid energy systems.
Comprehensive Internal and External Protection
Built-in system safeguards and protected construction support reliable controller operation.
Rapid Heat Dissipation
The heat-dissipation structure helps control temperature during charger operation.
Powering Your Adventures Faster
MPPT charging is designed to maximize available solar input for compatible battery charging.
Revive Lithium Batteries from Protection Mode
Lithium-battery activation support helps wake a compatible protected lithium battery using a small charging current.
ROVER Bluetooth Module Guide
Use the supported Bluetooth module for compatible remote-monitoring setup.
| RENOGY ROVER 30 AMP MPPT SOLAR CHARGE CONTROLLER | |
| Model SKU | RNG-CTRL-RVR30-G3-US |
|---|---|
| Electrical Parameters | |
| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium types) |
| Rated Charge Current | 30A |
| Max. PV Input Voltage | 100VDC, (Recommended 95V in low temperature) |
| Max. PV Input Power | 12V/400W, 24V/800W |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries |
| Environmental Data | |
| Protection Level | IP32 |
| Operating Temperature Range | -35°C to 45°C (-31°F to 113°F) |
| Storage Temperature Range | -35°C to 75°C (-31°F to 167°F) |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Temperature Compensation | -3mV/°C/2V |
| Mechanical Specifications | |
| Dimensions | 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in |
| Weight | 4.4 lbs / 2.0 kg |
| Max. Terminals Size | 8 AWG 10mm² |
| Certifications | |
| CE | YES |
| FCC Class B Part 15 Compliant | YES |
| Warranty | |
| Material and workmanship warranty | 3 Year |
