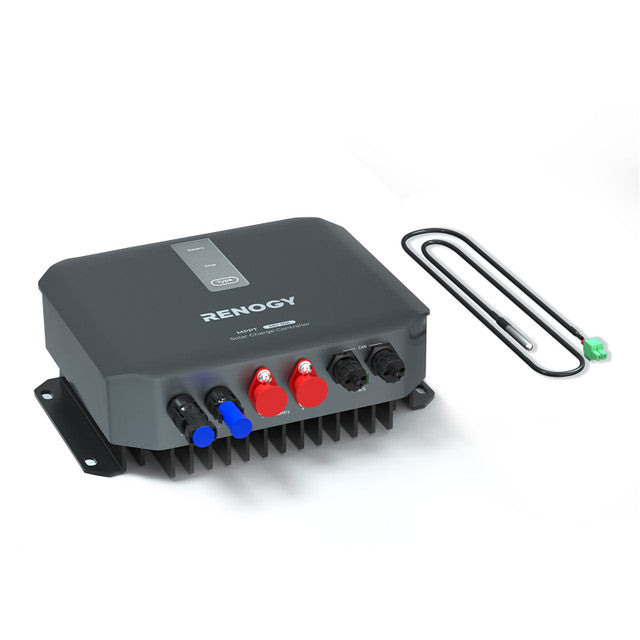

Renogy REGO 12/24/36/48V 30A MPPT Solar Charge Controller
REGO Smart MPPT Control
REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller
Collect solar energy efficiently across compatible system voltages with a compact REGO controller featuring MPPT charging and built-in Bluetooth monitoring support.
High Tracking Efficiency
Renogy states up to 99.99% tracking efficiency and 97% charging efficiency.
Built-In Bluetooth
Monitor supported charging information through a compatible Renogy app workflow.
Multiple System Voltages
Supports compatible 12V, 24V, 36V and 48V systems.
Smart MPPT Solar Charging
The REGO 30A controller is designed to manage solar charging efficiently while keeping system monitoring accessible.
Dual Monitoring, Simple yet Efficient
Built-in communication support helps users monitor system operation through compatible Renogy tools.
High-Power DIY System Potential
Use the controller within compatible off-grid builds designed around higher solar-input needs.
Seamless Installation
The source Description highlights a connection approach designed for easier compatible installation.
Stable Performance in Extreme Conditions
The controller is presented for stable operation through changing environmental conditions.
Comprehensive Protection for Your Energy System
Built-in safeguards are designed to protect compatible charging systems against demanding electrical conditions.
Versatile Voltage Compatibility
The live Description shows the controller supporting several compatible system-voltage applications.

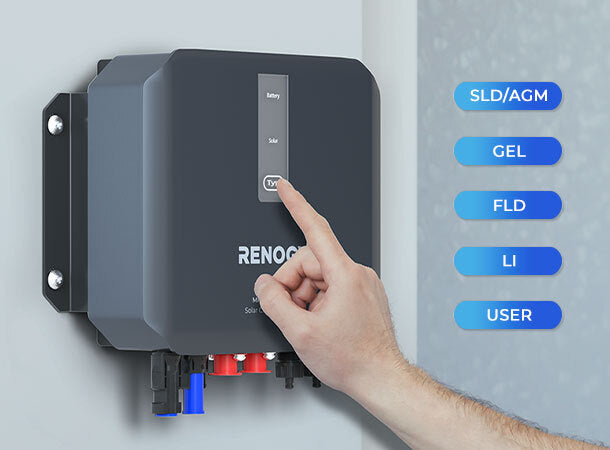

Effortless Battery Type Selection
Select compatible battery charging behaviour for the supported battery type used in the system.

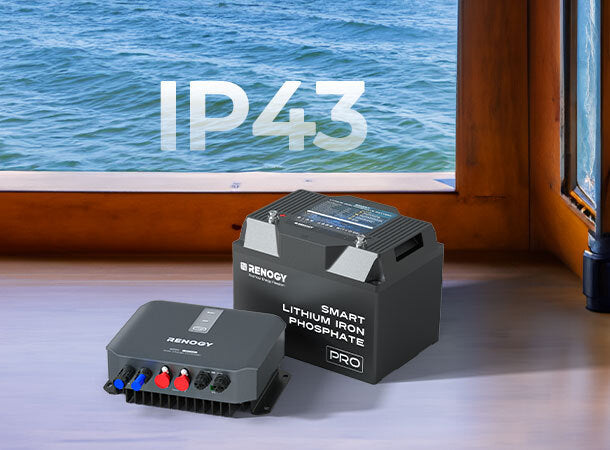

IP43 Protection for Humid Environments
The source Description identifies an IP43-rated product design for suitable installation conditions.
Over-the-Air Update Support
The Description includes over-the-air update support for compatible monitoring and firmware workflows.
| RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller | |
| Model SKU | RCC30REGO-G1-US |
|---|---|
| General Data | |
| Grounding | Common Negative |
| Communication | RS485; RENOGY CAN |
| Operating Temperature | -31°F to 149°F / -35°C to 65°C |
| Storage Temperature | -31°F to 176°F / -35°C to 80°C |
| Humidity | 0% to 95% RH |
| Cooling | Heat Sink |
| Enclosure Rating | IP43 |
| Dimensions (L x W x H) | 9.84 x 7.40 x 3.17 in / 250 x 188 x 80mm (Solar connector length not included); 9.84 x 8.58 x 3.17 in / 250 x 218 x 80mm (Solar connector length included) |
| Weight | 2.7kg / 5.95 lbs |
| Charger Data | |
| Rated Battery Input Voltage | Non-Lithium: 12VDC / 24VDC / 36VDC / 48VDC (Auto Recognition) |
| Battery Operating Voltage Range | 8V to 64V |
| Rated Charge Current | 30A |
| Maximum Solar Input Power | 440W (12V Battery); 880W (24V Battery); 1,314W (36V Battery); 1,700W (48V Battery) |
| Maximum Solar Input Voltage (Voc) | 150VDC |
| Power Consumption | <0.57W (12V Battery); <0.67W (24V Battery); <0.97W (36V Battery); <1.34W (48V Battery) |
| MPPT Tracking Efficiency | >99% |
| Conversion Efficiency | >97% |
| Temperature Compensation | -3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V, no compensation (Lithium) |
| Charger Algorithm | 3-Stage Lead Acid: Bulk, Boost, Float, Equalize*; 2-Stage Lithium: Bulk, Boost |
| Charger Preset | AGM / Gel / SLD / FLD / LI (four cell groups) and User Mode |
| Certifications | |
| FCC, RoHS, CE, SAA, RCM, UL 1741 | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5 Year |
