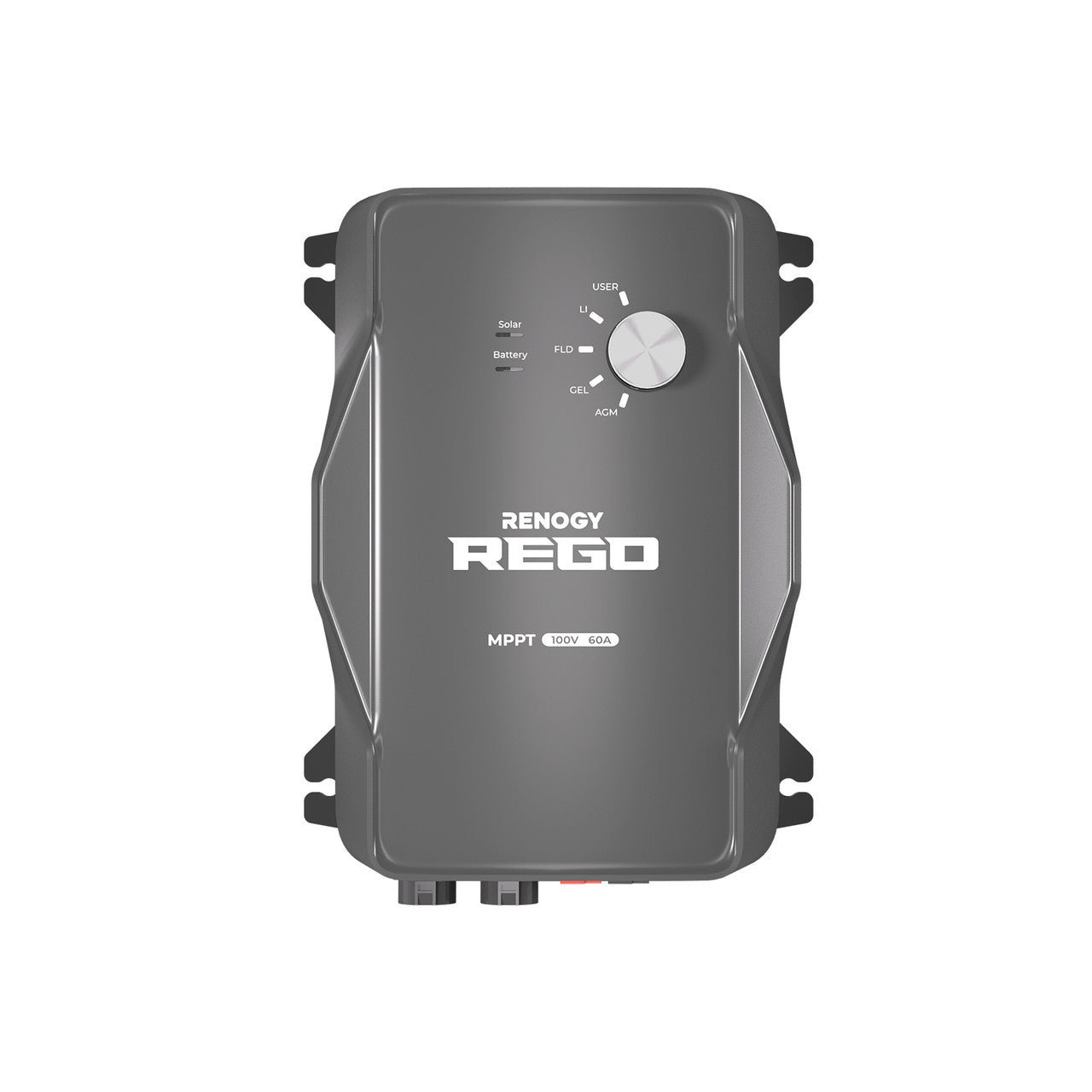

Renogy REGO 12V 60A MPPT Solar Charge Controller
REGO High-Output MPPT Charging
REGO 12V 60A MPPT Solar Charge Controller
Design a compact high-output solar charging system with a REGO controller featuring plug-and-play connections, system protection and compatible app monitoring.
Smart Monitoring
Add compatible Renogy ONE Core monitoring for real-time system awareness.
60% Faster Setup Claim
Renogy states its Anderson-terminal adapter approach reduces installation time by 60%.
99% MPPT Tracking
MPPT tracking is designed to improve available solar-energy harvest.
Multiple Battery Types
Supports compatible battery charging configurations.
Efficient, Protected Solar Charging
The REGO 60A controller is designed for easier installation and comprehensive solar-system protection with compact high-output performance.
Save Up to 60% Installation Time and Take Less Space
A custom Anderson-to-solar-adapter cable supports quicker connection to compatible panels. A non-REGO house battery requires the separate compatible ring-terminal cable identified by Renogy.
Manage Batteries and Protect the Whole System
Charging stages and an integrated battery-protection design help support efficient charging and compatible battery protection.
Built-In Bluetooth for Monitoring and Control
Monitor supported controller data and configure eligible charging information through the Renogy DC Home App.
Integrated Thermal Management
A die-cast aluminium heat-sink structure is designed to dissipate heat for stable, continuous charging.
Wide Operating Temperature Range
The controller is presented for reliable performance in changing climates with compatible temperature-compensation support.
Tested to High Standards
The source Description presents certification and testing marks as part of its quality and safety focus.
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
| REGO 12V 60A MPPT Solar Charge Controller | |
| Model SKU | RCC60REGO-G2-US |
|---|---|
| Electrical Parameters | |
| Nominal System Voltage | 12 V |
| Rated Charge Current | 60A |
| Max. PV Input Power | 800W |
| MPPT Voltage Range | 15 - 100 VDC /12V |
| Solar Input Voltage Range (VOC) | 100 V |
| Max Input Current (short-circuit, Isc) | 50A |
| Power Limiting Protection | Up to 800W/12V |
| Battery Operating Range | 10 -16V |
| Power Consumption | ≤0.5 W |
| Ground Type | Common Negative Lug |
| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Electronic Protections | Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection |
| Environmental Data | |
| Operating Temperature Range | -20 ℃ - 60℃ Storage |
| Temperature Range | -25 ℃ - 65℃ |
| Operating / Storage Humidity | 0%-90% RH |
| Temperature Compensation | '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium) |
| Mechanical Specifications | |
| Dimensions | 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm |
| Weight | 5.07 lbs/ 2.30kg |
| Terminals Size | Anderson PP75 |
| Optional Accessories | |
| Remote Monitor | Bluetooth Module BT-2 (RS485 / CAN bus signal) |
| Certifications | |
| CE and RoHS compliant | YES |
| FCC Class B Part 15 Compliant | YES |
| Warranty | |
| Material and workmanship warranty | 5 Year |
