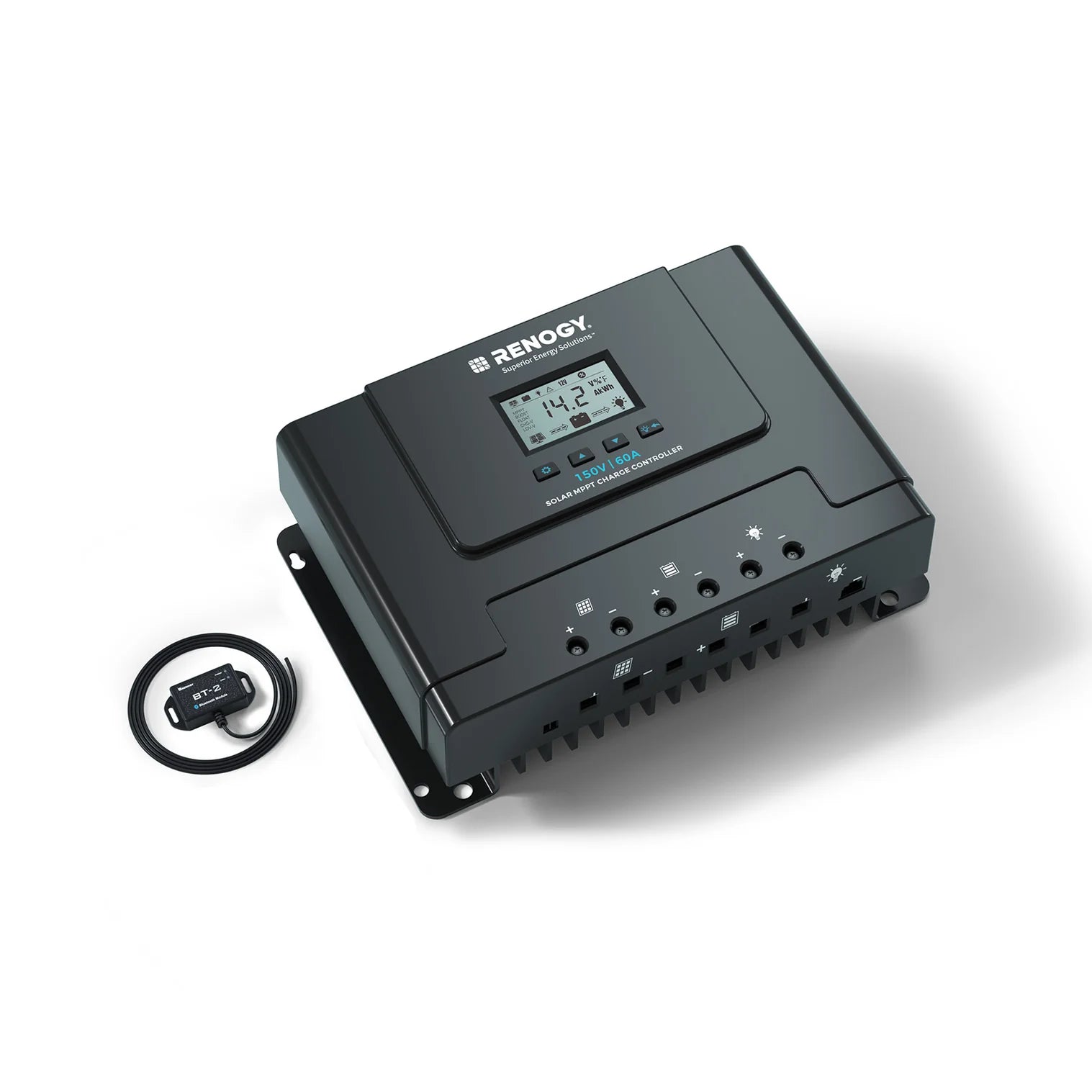

Renogy Rover Lite 12/24/36/48V 60A MPPT Solar Charge Controller w/ Bluetooth Module Renogy Rover Lite 12/24/36/48V 60A MPPT Solar Charge Controller w/ Bluetooth Module
SKU: RCC60RVRE-BT-US
- Weight 3.5 kg /7.71 lb
- Rated Charge Current 60A
Efficient MPPT Solar Charging
Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller
Control higher-voltage solar input for compatible battery systems with a 60A MPPT controller designed for efficient energy harvesting, low self-consumption and temperature-ready operation.
150V PV Input
Built to manage compatible higher-voltage solar input configurations.
High Tracking Efficiency
Renogy states 99% MPPT tracking efficiency and 97% conversion efficiency.
Lower Self-Consumption
Designed to consume less stored energy during operation.
Rover Lite High-Voltage Solar Control
The Description highlights robust 150V PV input, low-temperature protection, high-temperature operation and certification support.
Superior Heat Dissipation
Heat-resistant thermal silicone and an alloy heat sink are shown supporting controller heat management.
High-Efficiency MPPT Charging
Renogy lists 99% MPPT tracking efficiency and 97% conversion efficiency for this controller.
Reduced Self-Consumption
The Rover Lite is presented as using 85% less self-consumption than the comparison controller shown.
Store Up to Two Years of Data
A supported BT-2 module provides access to historical parameters, system settings, charging information and produced-energy data.
Simple Controls and Clear Information
The on-device display provides indicators for solar input, battery state, DC load and charging mode.
Stable Operation Across Temperatures
Review the full-load temperature range and lithium low-temperature protection settings before installing the controller in hot or freezing conditions.
Size the charging system
Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.
Compare a related option
Compare the same Rover Lite controller with and without the listed monitoring module.
Renogy Rover Lite 12/24/36/48V 60A MPPT Solar Charge Controller
| Renogy Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller | |
| Selected variant SKU | RCC60RVRE-BT-US |
|---|---|
| General Specifications | |
| Grounding | Common Negative |
| Communication | RS485 |
| Operating Temperature | -31°F to 113°F (-35°C to 65°C) |
| Storage Temperature | -40°F to 176°F (-40°C to 80°C) |
| Humidity | 0% to 95% RH |
| Cooling | Heat Sink |
| Enclosure Rating | IP32 |
| Dimensions | 12.01 × 8.07 × 3.90 in (305 × 205 × 99 mm) |
| Weight | 7.71 lb (3.5 kg) |
| Certifications | FCC Part 15 Class B, CE, RoHS |
| Charging Specifications | |
| System Voltage | 12V / 24V / 36V / 48V DC (Auto Recognition, Non-Lithium) |
| Battery Input Voltage Range | 9V to 64V DC |
| Rated Charge Current | 60A |
| Maximum Solar Input Voltage (Voc) | 150V DC |
| Maximum Solar Input Power (12V Battery) | 900W |
| Maximum Solar Input Power (24V Battery) | 1800W |
| Maximum Solar Input Power (36V Battery) | 2000W |
| Maximum Solar Input Power (48V Battery) | 3200W |
| Power Consumption (12V Battery) | <15mA |
| Power Consumption (24V Battery) | <11mA |
| Power Consumption (36V Battery) | <8mA |
| Power Consumption (48V Battery) | <7mA |
| MPPT Tracking Efficiency | >99% |
| Conversion Efficiency | >97% |
| Temperature Compensation (Non-Lithium) | -3mV/°C/2V |
| Temperature Compensation (Lithium) | 0mV/°C/2V (No Compensation) |
| Charging Profiles | |
| Lead Acid Charging Algorithm | 3-Stage (Bulk, Boost, Float) + Equalize |
| Lithium Charging Algorithm | 2-Stage (Bulk, Boost) |
| Battery Presets | AGM, Gel, Flooded, Lithium Iron Phosphate, User Custom |
| Warranty | |
| Warranty | 2-Year Material and Workmanship Warranty |
| Dimensions (LxWxH) | 305 x 205 x 99 mm / 12.01 x 8.07 x 3.90 inch |
| Maximum Solar Input Power | 900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery) |
| Temperature Compensation | -3mV / ℃ / 2V (Non-Lithium)0mV / ℃ / 2V; no compensation (Lithium) |
| Material and workmanship warranty | 2-year |
| Renogy BT-2 Bluetooth Module (RCM-BT2) | |
| Compatibility | |
| Compatible Charge Controllers | RCC60RVRE, RNG-CTRL-RVR20, RNG-CTRL-RVR30, RNG-CTRL-RVR40, RNG-CTRL-RVR60, RNG-CTRL-RVR100 |
|---|---|
| Compatible Inverters | R-INVT-PGH1-10111S, RIV4835CSH1S |
| Compatible Lithium Batteries | Not Supported |
| Compatible Battery Chargers | RBC30D1S, RBC50D1S, RBC20D1U, RBC40D1U |
| Compatible App | Renogy DC Home App (iOS & Android) |
| Communication Specifications | |
| Communication Protocol | RS485 |
| Port Type | RJ45 |
| Communication Range | Up to 82 ft (25 m) |
| Serial Baud Rate | Fixed 9600bps |
| Electrical Specifications | |
| Input Voltage | 5V or 12V |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Mechanical Specifications | |
| Cable Length | 16.4 ft (5.0 m) |
| Dimensions | 2.65 × 1.38 × 0.55 in (67.3 × 35 × 14 mm) |
| Weight | 4.58 oz (130 g) |
| Operating Temperature | -4°F to 185°F (-20°C to 85°C) |
| Protection Rating | IP54 |
| Certifications | |
| FCC Class B Part 15 Compliant | Yes |
| Warranty | |
| Warranty | 1-Year Material and Workmanship Warranty |
