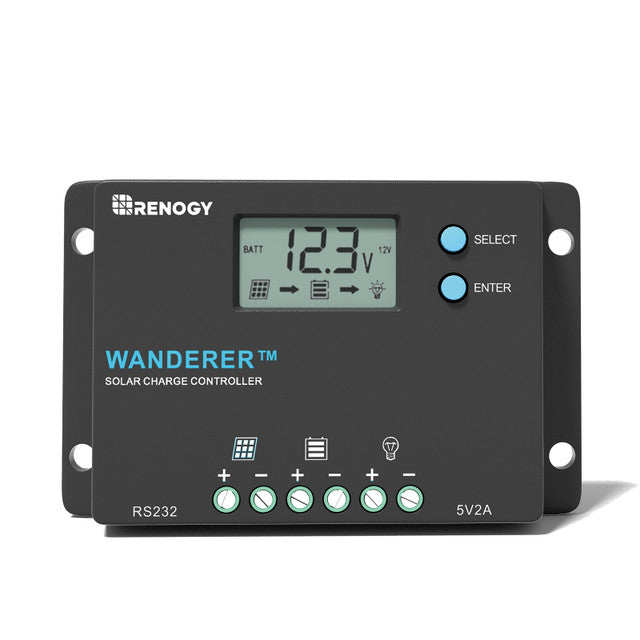

Renogy Wanderer 10A PWM Charge Controller
Compact PWM Charging Control
Wanderer 10A PWM Charge Controller
Manage a small compatible 12V or 24V solar charging system with a compact PWM controller built for flexible load control and optional remote monitoring.
Automatic Voltage Detection
Automatically detects compatible 12V or 24V system voltage.
Full System Protection
Built-in safeguards support a safer charging system.
Multiple Load Modes
Choose operating modes to match compatible off-grid load needs.
Low Self-Consumption
Designed to preserve more available stored energy.
Monitoring Your Energy System Anywhere
Integrate compatible BT-1 monitoring to review available solar-system information through supported Renogy interfaces.
Impeccable Functional Versatility
Five load modes and a lightweight design help the controller suit varied small off-grid charging applications.
Customize Your System Parameters
The LCD screen displays relevant system operation and error information for supported setup and use.
All-Round Battery Protection
The source Description identifies safeguards for overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current and temperature compensation.
Prolong the Life of Connected Devices
Stable power output is designed to support sensitive connected loads in suitable applications.
Empower Your Off-Grid Life
The source Description shows the controller supporting compatible travel, cabin, marine, farm and garden solar systems.
| WANDERER 10A PWM CHARGE CONTROLLER | |
| Model SKU | RNG-CTRL-WND10-G1-US |
|---|---|
| Nominal Voltage | 12V / 24V Auto Recognition for non-lithium batteries |
| Rated Charge Current | 10A |
| Max Gauge Size | Up to 12AWG |
| Max. PV Input Voltage | 50 VDC |
| Self-Consumption | <10mA |
| Working Temperature | -31°F - 113°F / -25°C - 45°C |
| Dimensions | 4.7 x 3.0 x 1.1 in / 119 x 75 x 27.5mm |
| Weight | 0.27 lbs / 122.47g |
| Storage Temperature | -3mV/°C/2V |
| Max PV Input | 130W / 12V - 260W / 24V |
| Certification | CE / ROHS |
