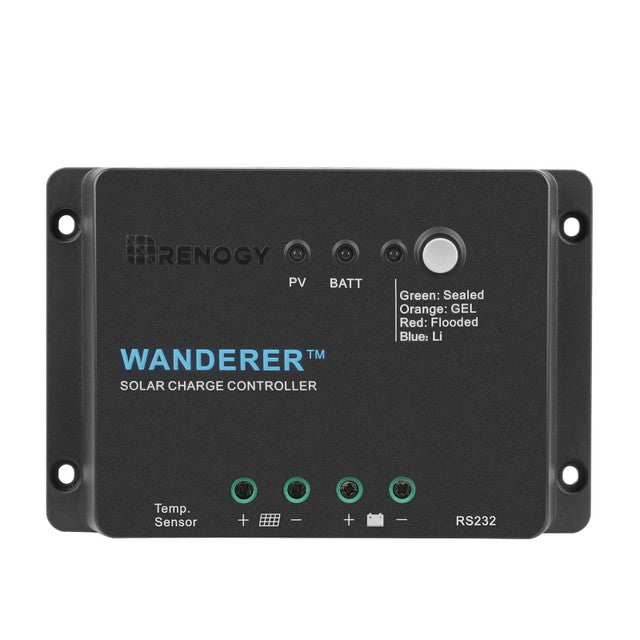

Renogy Wanderer Li 30A PWM Charge Controller
Lithium-Compatible PWM Charging
Wanderer Li 30A PWM Charge Controller
Build a compact 12V solar charging setup with a Wanderer Li controller optimized for compatible lithium batteries, smart PWM charging and remote monitoring support.
Optimized for 12V Batteries
Supports compatible 12V charging systems, including lithium battery configurations.
Smart Four-Stage PWM
PWM charging helps manage supported battery charging performance.
Extremely Low Self-Consumption
Designed to limit the controller's draw on stored energy.
RS232 Monitoring Support
Supports compatible monitoring accessories.
Monitoring Your Energy System Anywhere
Integrate a compatible BT-1 module to view eligible system information through supported Renogy interfaces.
Impeccable Functional Versatility
The Description presents five load modes in a compact controller designed for varied off-grid charging applications.
Dynamic Temperature Compensation
Measure supported battery temperature to help manage compatible charging performance and battery life.
All-Round Battery Protection
The source Description identifies protections against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current and temperature-related conditions.
Prolong Lifespan
Stable output is designed to support compatible sensitive electrical devices in small off-grid systems.
Empower Your Off-Grid Life
The verified application section shows travel, RV, cabin and marine use cases for compatible solar systems.
| RENOGY WANDERER LI 30A NEGATIVE PWM CHARGE CONTROLLER | |
| Model SKU | RNG-CTRL-WND30-Li-G1-US |
|---|---|
| Nominal Voltage | 12 VDC |
| Rated Charge Current | 30A |
| Max. PV Input Voltage | 25 VDC |
| Self-Consumption | <10mA |
| High Voltage Disconnect | 16V |
| Boost Duration | 120 min |
| Temperature Compensation | -3mV/°C/2V |
| Working Temperature | -20°F - 113°F |
| Storage Temperature | -31°F - 176°F |
| Max Gauge Size | Up to 8AWG |
| Weight | 0.65 lbs |
| Dimensions | 6.45 x 4.31 x 1.76 inches |
| Enclosure | IP20 |
| Compatible bluetooth | Renogy BT-1 Bluetooth module |
