You plugged the camper in yesterday. The outlets work, the microwave clock is on, and everything seems normal—until you check the battery and realize it’s still low.
That’s confusing for a good reason. We expect plugging in an RV to charge its battery. In a properly working house-battery system, it usually does. But the cord outside is only the beginning of the charging path.
If your RV battery isn’t charging when plugged in, check whether the converter or charger has power, whether its output can reach the battery, and whether the battery can accept that charge. A working outlet or an illuminated battery display doesn’t prove all three are happening.
I’d follow that path before ordering a replacement battery. It gives you a way to narrow down the problem, collect useful information, and avoid replacing a component that was working all along.
Start by identifying the battery that isn’t charging
This guide focuses on the RV’s house battery, which supplies the living-area DC system. In a motorhome, the chassis or engine-starting battery may use a different charging arrangement.
If the lights and living-area battery are fine but the engine won’t start, first check whether your model is designed to maintain the chassis battery from shore power. Don’t assume the house-battery charger serves both banks.
Next, take a photo of the house-battery label and the converter or inverter/charger model number. Note the battery chemistry, bank voltage, and any fault message. “A lithium battery and a 55-amp converter” is a start, but exact models let you find the right instructions.
Also write down when the problem began. After winter storage? Immediately after a battery replacement? Only during freezing weather? A recent change can point you toward the right check much faster than guessing.

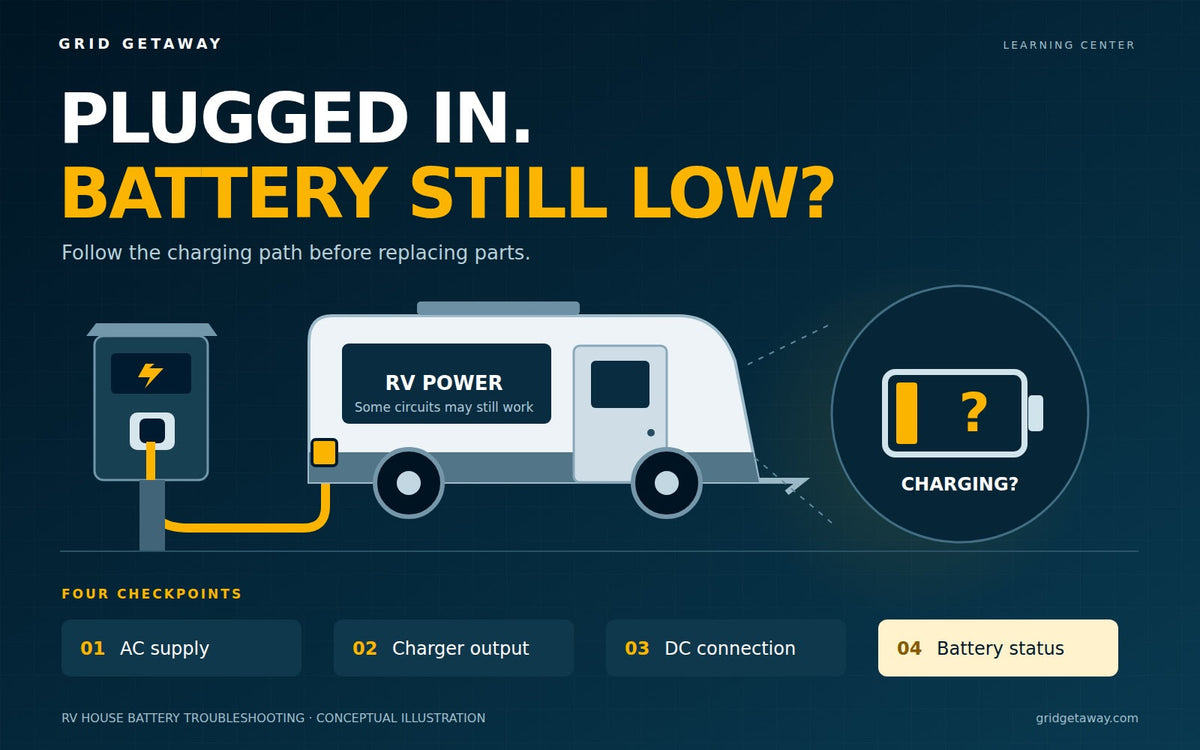

Understand the charging path before touching anything
In a common RV setup, shore power brings AC electricity into the RV. A converter/charger turns some of that into DC electricity for the house system and battery. Some RVs use an inverter/charger for this job instead.
A standalone inverter does the opposite conversion: battery DC into AC for appliances. It doesn’t charge the battery unless it also includes a charger.
The battery connection has its own wiring and protection. An interruption there can leave other parts of the RV working while the battery receives no charge.
Plugged in is only the first step.
-
Shore power reaches the RV.
The supply and RV input protection allow AC power through. -
The converter or charger operates.
It has an AC supply and the correct charging settings. -
The DC connection is complete.
Required fuses, disconnects, cables, and return connections are intact. -
The battery accepts net charging current.
Battery conditions permit charging, and enough output remains after other loads.
One important boundary: ordinary controls and accessible displays are different from exposed electrical connections. Leave work inside AC panels, converters, transfer switches, and hardwired chargers to a qualified RV technician. Shore power, solar, a generator, an inverter, and the battery can provide separate sources of energy.
If you notice smoke, a swollen or leaking battery, melted connections, strong unusual odors, or excessive heat, stop troubleshooting. Keep clear and arrange help. Don’t keep resetting protection or charging damaged equipment.
1. Confirm that you have a charging problem
Before blaming hardware, I’d check what “not charging” means in your case.
Is the battery percentage falling? Has it stayed at the same number for hours? Does everything shut off as soon as shore power is removed? Or are you looking at a charger that says “float” with very little current?
Those observations point in different directions.
| What you notice | Where to look next |
|---|---|
| No shore-power indication and AC appliances don’t work | Supply, cord, input protection, and RV AC power path. |
| AC appliances work, but the house battery keeps falling | Charger operation, the battery connection, and net charging current. |
| Battery current shows charging, but percentage looks wrong | Monitor configuration and whether all current passes through its sensor. |
| Charging stops only when the battery is cold | Battery temperature limits and protection status. |
| Battery charges, then runs down unusually quickly | Connected loads, actual battery capacity, and battery condition. |
A voltage-based wall display can change when a charger is connected without telling you how much energy is stored. A percentage display is an estimate too; it depends on the device and its configuration.
For a shunt-based monitor, incorrect capacity settings, missed current paths, or synchronization errors can produce misleading readings. Victron’s SmartShunt troubleshooting guidance explains these possibilities. Don’t manually set a monitor to 100% just to make the number look right; follow its synchronization procedure after establishing that the battery is actually full.
If you already have a battery app or monitor, record voltage, current, temperature, and alarms together. A screenshot of all four is much more useful than the percentage alone.
Where does charging stop?
NO → Investigate the supply, input protection, and charger circuit.
YES ↓ Check charger operation.
NO → Check its mode, settings, protection, and condition.
YES ↓ Follow the DC connection toward the battery.
NO → Investigate connections, protection, and voltage loss.
YES ↓ Check battery acceptance and net current.
Consider state of charge, BMS status, temperature, running loads, and monitor accuracy.
2. Check the ordinary shore-power and charger controls
Look at your RV’s shore-power indicator and, if fitted, its electrical management system. A cord can be physically connected while a protective device refuses the incoming supply.
Read the error message before resetting anything. If the pedestal or incoming power is flagged as unsafe, ask the campground or an electrician to address it. Bypassing protection to make the charger run isn’t a repair.
With no signs of damage, use only normal, accessible controls as described in your RV manual. That can include checking the labeled converter breaker. If the manual permits a reset, try it once after addressing any obvious overload. A breaker that trips again needs investigation.
Working AC appliances show that some AC power is available, but they don’t establish that the converter’s particular circuit has power. An inverter may also be supplying selected outlets, which can make the situation less obvious.
If you have an inverter/charger, check whether charging is enabled, whether it recognizes an AC input, and whether it reports a fault. A mode that runs the inverter is not necessarily a mode that charges the battery. Use the exact unit’s controls and instructions.
Finally, look for blocked ventilation around the charger without opening its enclosure. Equipment stored against vents can contribute to overheating. Fan noise alone is not a reliable pass-or-fail test; fan behavior varies with model, load, and temperature. For example, the Progressive Dynamics PD9300 manual includes supply, ventilation, overload, and protection checks in its troubleshooting section.
3. Check whether the battery is connected to the charging circuit
Now think back to your last trip or maintenance job. Was the battery disconnect changed for storage? Was the battery removed? Did someone install a monitor or replace a cable?
Confirm the disconnect’s intended operating position in your RV manual. Labels such as “use,” “store,” “on,” and “off” aren’t consistent across every installation, and some chargers connect on a different side of the disconnect. Follow the wiring arrangement for your RV.
From a safe viewing position, look for a visibly loose or detached cable, corrosion, damaged insulation, or discoloration. Include the negative return connection; charging needs a complete circuit.
Don’t tighten energized connections or remove a fuse simply because you found it. Before hands-on work, all relevant power sources must be isolated using the manufacturer’s procedure. Unplugging shore power alone doesn’t disconnect the battery or solar.
There may be more than one protection device in this path: a battery-side fuse or breaker, converter reverse-polarity protection, and other model-specific components. Their locations and functions need to be identified, not guessed from appearance.
The WFCO WF-9800-AD manual specifically includes reverse-polarity fuses and an open inline battery-circuit fuse among its troubleshooting checks. Its service procedure is for that series; it isn’t a universal instruction to disconnect every converter the same way.
If a fuse is blown, establish why before replacing it. Use the specified type and ratings. Never fit a larger fuse, bridge the holder, or repeatedly reset a breaker to push charging current through a fault.
4. Separate a charger fault from a wiring fault
This is where a technician’s measurements can save you a lot of guesswork. The useful comparison is the charger’s DC output and what is reaching the battery under known operating conditions.
I’d ask for those readings before approving a converter replacement. A healthy converter cannot charge through a broken connection, and a healthy battery cannot make up for missing charger output.
| Finding | What it suggests checking |
|---|---|
| No expected charger output | AC supply to that unit, operating mode, protection, temperature, and the charger itself. |
| Expected output at the charger, but substantially lower voltage at the battery | An open connection or excessive voltage loss in the DC path, accounting for charging current. |
| Suitable voltage reaches the battery, but little current enters | State of charge, battery protection, temperature, settings, and battery condition. |
| Current enters the battery, but it later runs down quickly | Loads, usable capacity, battery health, and monitor accuracy. |
Suppose, purely as an example, a technician measures 14.2V at a charger and 12.8V at the battery while trying to charge. That difference deserves investigation. It does not, by itself, identify one bad fuse or prove that the charger has failed.
Voltage can also look acceptable with almost no current flowing, then fall across a poor connection when current increases. That is why the operating conditions matter. A quick unloaded measurement may miss a problem that appears during charging.
There is no single voltage that proves every RV battery is charging correctly. Battery chemistry, charge stage, temperature settings, and equipment model all matter. Don’t treat “anything below 14V is broken” as a diagnostic rule.
If you already know how to use a multimeter safely and the battery terminals are accessible, an owner-manual-approved DC voltage reading may be useful. Use the voltage setting and the correct COM/V sockets. Never place a meter set to current across battery terminals. If any part of that is unfamiliar, have the technician take the reading.
Measurements inside the converter or an AC compartment belong with the technician. You can still make the appointment productive by bringing the model numbers, symptoms, and display screenshots.
5. If you have lithium, check what the battery is telling you
A lithium battery can refuse charging because its battery management system, or BMS, is protecting the cells. That doesn’t automatically mean the battery is defective.
Read the actual alarm where your model provides one. Temperature protection, a deeply discharged state, and other battery faults require different responses. Repeatedly disconnecting things can erase useful clues without resolving the cause.
Cold-weather protection
A battery may still power loads at a temperature where charging is prohibited. Low-temperature charging protection and self-heating are different features: protection can stop charging without providing any heat.
Use the battery’s measured temperature and exact charging limits. A warmer afternoon outside doesn’t prove that a cold battery compartment or the cells have warmed enough. Heated models also have their own operating conditions.
A low-battery shutdown
If the battery has entered protection after a deep discharge, use its approved recovery procedure and compatible charger. Don’t bypass the BMS, jump it from an unrelated battery, or select an aggressive repair mode to force charging.
Renogy’s Core lithium troubleshooting guidance is one example of a manufacturer separating protection conditions from charging faults. Follow the documentation for your own model.
A recent lithium conversion
If the problem started immediately after changing battery chemistry, compare the charger’s selected profile with the new battery’s requirements. Also check polarity, any connections disturbed during installation, and model-specific auto-detection instructions.
“Lithium compatible” on a box isn’t the same as confirming the installed settings. Our RV lithium replacement guide covers that compatibility review without turning this troubleshooting process into a complete upgrade project.
6. Work out whether charging is absent or simply slow
Imagine your converter is supplying 30A to the DC system while the RV’s operating loads consume 22A. Only about 8A remains to charge the battery.
If you need to replace 80Ah, a constant net 8A would take approximately ten hours:
80Ah ÷ 8A = 10 hours.
That is an idealized calculation, before tapering and other limitations. It explains why “I was plugged in all afternoon” doesn’t necessarily mean a depleted bank should be full.
Charger output isn’t all going into the battery.
Turn off unnecessary loads using their normal controls and see whether net charging improves. Keep required detectors, controls, and other safety equipment operating.
A charger’s advertised amp rating is its capability under specified conditions, not a promise that the battery receives that current continuously. Near the end of charging, reduced current may be normal. Current limits, quiet modes, charge profiles, and thermal conditions can also affect output.
For example, Victron’s 120V Blue Smart IP22 operating instructions describe charging stages and selectable current modes. The useful lesson is to read the active mode before interpreting a low current number as failure.
Likewise, a full battery may need little charging current. A charger maintaining an already charged bank is doing a different job from replenishing one you ran down overnight.
If solar is operating during your test, account for it. Positive battery current alone cannot prove the shore-power charger is responsible. Record each source’s displayed contribution where available; source-isolation tests should follow the system’s approved procedures.
7. Decide whether the repair is wiring, charging equipment, or the battery
By this point, you want a specific finding: “the charger has no AC supply,” “the battery connection is open,” “the battery reports cold-charge protection,” or “charging works, but the remaining current is too small for our schedule.”
Those findings lead to different repairs. “The battery stayed low” alone does not.
If the connection needs repair
Have the technician specify the required positive and negative cables, lug sizes, fuse type, and any damaged holders or disconnects. An overheated connection needs its cause addressed, not just a new cable attached to the same damaged hardware.
Browse battery and inverter cables and fuses and fuse blocks against that specification. Cable selection depends on current, total circuit length, installation conditions, and voltage drop. It cannot be chosen from battery amp-hours alone.
Victron’s DC wiring guidance explains why conductor sizing, connections, and appropriate fuse ratings belong in the same design review.
If charging equipment needs replacement
Match the battery voltage and chemistry, required charge settings, permitted charging current, available AC supply, mounting, ventilation, and RV integration.
Our AC battery chargers and inverter/chargers serve different installations. A standalone charger isn’t automatically a replacement for the converter section inside an existing RV power center.
Don’t buy a larger charger until the battery, supply circuit, cables, and protection have been checked for it.
If the battery itself needs testing
A battery can show an apparently reassuring voltage and still provide much less useful runtime than expected. Have it evaluated using a procedure appropriate to its chemistry and manufacturer.
If replacement is justified, our RV battery sizing guide can help you choose capacity around your actual trip. More capacity won’t repair the charging fault that left the old bank depleted.
Before your next trip, verify the repair
Ask for a functional check under normal use, not just a cleared warning light. With the battery below full and within its operating limits, the charger should operate correctly and supply appropriate charging current through the repaired path.
Have the technician confirm charging settings, connection condition, and any required monitor setup. Then observe the system long enough to establish that stored charge is increasing as expected.
Keep a short record of the repair and the settings. The next time you arrive at a campsite, you’ll have a useful reference instead of wondering whether the display has always behaved that way.
If your current display makes this difficult to follow, compare suitable battery monitors and shunts. Monitoring helps you see the result; it does not fix a charging circuit by itself.
Questions that usually come up next
Why do the lights work when the battery isn’t charging?
The converter may be supplying the living-area DC circuits while an interruption prevents charge from reaching the battery. Lights working on shore power show that those lights have a supply; they don’t establish battery condition or charging current.
Should the battery disconnect be on or off while plugged in?
Use your RV manual’s charging position. Some arrangements disconnect the battery from the charger; others leave a charging path connected. The label alone doesn’t tell you how your particular RV is wired.
Why does solar charge my battery, but shore power doesn’t?
That makes the shore-power charger and its connection worth investigating. Solar and shore charging may reach the battery through different paths. Solar working is useful evidence, but it doesn’t prove every battery condition or connection is fault-free.
What if it charges when plugged in but not while driving?
That is a different charging path. Use our RV DC-to-DC charging guide to understand the vehicle-side equipment and checks. Replacing the shore-power converter won’t automatically resolve an alternator-charging problem.
Can I keep camping while the charging problem is unresolved?
Don’t assume the RV is ready simply because some outlets work. A depleted or disconnected house battery can affect essential systems, and a trailer’s breakaway braking supply needs to be operational before towing. Have the fault and required safety functions checked before relying on the RV.
Get an answer before buying a replacement
The most useful starting point is a small set of facts: the RV model, battery model, charger model, exact symptom, recent changes, and any current or fault readings you can obtain safely.
With those details, you can move from “my battery won’t charge” to a specific part of the system that needs attention. You might need a battery, a charger, a connection repair, a settings correction, or simply a more realistic charging schedule.
I’d rather help you identify that first. The goal is to arrive at your next campsite knowing the battery is being replenished—not merely hoping that plugging in has taken care of it.
