Jackery HomePower 3600 Plus + 500Wx Solar Panel Jackery HomePower 3600 Plus + 500Wx Solar Panel
SKU: 60-360050-US00073
Jackery Home Backup System

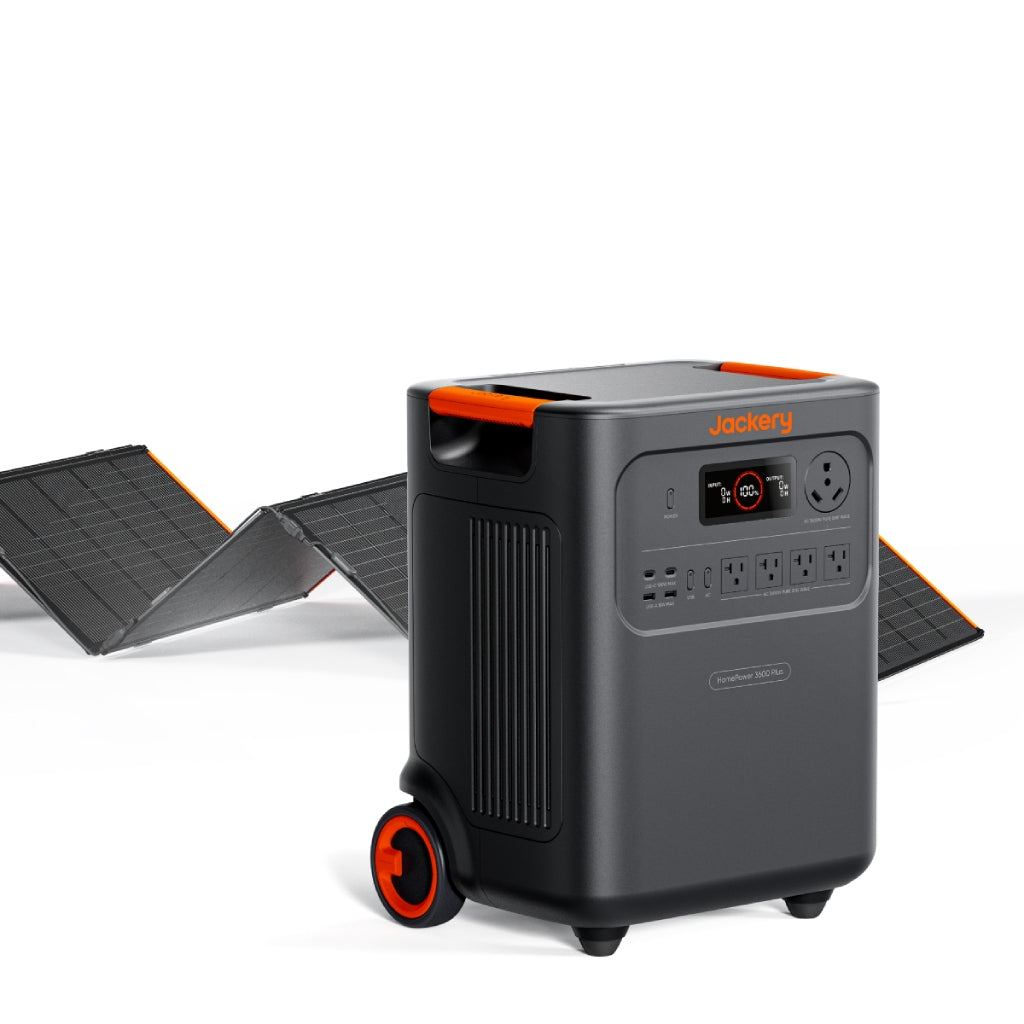

Jackery HomePower 3600Plus + 500Wx Solar Panel
This package supplies one 3,584Wh HomePower 3600 Plus and one SolarSaga 500 X set. Choose it for a folding solar charging source with the base station; it does not include an expansion battery.
Why customers choose it
This exact Jackery HomePower 3600 Plus + 500Wx Solar Panel configuration includes 1 × HomePower 3600 Plus, 1 × SolarSaga 500 X, 1 × AC Charge Cable. The listed station battery is rated 3584 Wh. Its published AC output is 120 V, 60 Hz, 3,600 W rated across five AC outlets. Check the box contents and input limits below before choosing a panel or expansion setup.
Best-fit use cases
What to check before buying
Before buying, confirm your backup goals, circuit requirements, transfer-switch plan, expansion battery needs, installation requirements, and compatible solar input.
Plan your power needs
Use our backup power sizing guide to estimate capacity and output for your loads. The solar generator charging guide explains why a solar charge estimate depends on more than panel wattage.
Compare a related option
Compare the station-only listing with this configuration to check what the selected package includes.
Compare HomePower 3600 Plus packages
This package includes one HomePower 3600 Plus and one SolarSaga 500X. Choose the battery-and-panel package below if you also need an expansion battery included in the purchase.
Station only
Start with the 3,584Wh station and AC charging cable.
Station + two 200W panels
Two SolarSaga 200W panels for 400W combined nameplate solar power.
Station + battery + 500X
Adds a Battery Pack 3600 as well as the solar panel.
Open each listing for its current price, availability and full box contents.
Practical details for Station + SolarSaga 500 X
This package supplies one 3,584Wh HomePower 3600 Plus and one SolarSaga 500 X set. Choose it for a folding solar charging source with the base station; it does not include an expansion battery.
What’s included
1 × HomePower 3600 Plus, 1 × AC charging cable and station user manual; 1 × SolarSaga 500 X six-module set, 5m charging cable, DC8020/Anderson adapter arrangement, stakes, storage bag and panel guide.
Check the output while wall charging
A single station supplies up to 3,600W from its battery, shared across the AC outlets. While connected to wall power in bypass mode, the manual limits AC output to 1,440W (120V, 12A). The TT-30 outlet is 120V; neither a transfer switch nor an expansion battery turns one station into a 240V source.
Keep small loads running
Energy Saving Mode is enabled by default and can switch outputs off after 12 hours below the manual’s 25W AC or 2W USB thresholds. Disable it when continuous low-load power is needed, and test the intended devices. The US JHP-3600A manual states transfer within 10ms; Jackery’s current US support page states within 20ms. Confirm the supplied revision and test the intended equipment. Neither means zero-interruption power. The manual limits AC bypass to 1,440W while wall charging.
Separate panel rating from charging rate
The included SolarSaga 500 X is rated 500W at STC; its 545W figure comes from a different bifacial test. The six-module set includes its solar cable, adapter arrangement, stakes and storage bag. Keep panel voltage within the station’s 16–60V range and allow for its 12A-per-port limit. A larger combined battery takes more energy to refill than the base station.
Manuals and package comparisons
Station manual · Solar panel guide
Compare all HomePower 3600 Plus packages or estimate your needs with the power planner.
| Model / SKU | 60-360050-US00073 |
|---|---|
| Station model | HomePower 3600 Plus / JHP-3600A |
| Station Battery Capacity | 3,584Wh; 80Ah at 44.8V DC |
| Battery Chemistry | LiFePO4 |
| Single-Station AC Output | 120V, 60Hz pure sine wave; 3,600W continuous total shared across all five outlets |
| Single-Station Surge Output | 7,200W brief surge peak |
| Standard AC Outlets | 4 × 120V AC; 20A / 2,400W maximum per outlet, subject to 3,600W total shared output |
| RV Outlet | 1 × NEMA TT-30, 120V / 30A / 3,600W maximum; shares the station total |
| AC Bypass Output | 120V, 60Hz, 12A / 1,440W maximum while wall charging; lower than battery-mode output |
| USB-C Outputs | 2 × 100W maximum; 5/9/12/15V at 3A or 20V at 5A; output only |
| USB-A Outputs | 2 × 18W maximum; 5–6V at 3A, 6–9V at 2A or 9–12V at 1.5A |
| AC Charging Input | 100–120V AC, 60Hz, 15A maximum; Jackery support lists 1,720W ±50W maximum |
| Solar Input | 2 × DC8020 ports in parallel; 16–60V and 12A per port, 24A / 1,000W combined maximum |
| Solar Panel Matching | Match panel model and number on both inputs; 1 or 2 panels use included cables, supported 4-panel arrangement needs 2 SolarSaga adapters |
| Vehicle Charging Input | 12–16V DC, 8A maximum total; 12V vehicle only; separate cable required |
| Simultaneous AC and Solar Charging | Supported for a single station; not AC charging during two-station parallel operation |
| Solar and Vehicle Charging Together | Not supported; the parallel DC inputs must have matching voltage |
| AC Recharge Time | Approximately 2.5 hours for the base station per Jackery support; extra batteries, loads and settings change recharge time |
| UPS Transfer Time | US JHP-3600A manual: within 10ms; current US support: within 20ms. Confirm supplied revision; not a zero-interruption UPS |
| Energy Saving Mode | Enabled by default; 12-hour low-load shutoff below the manual thresholds of 25W AC or 2W USB; can be disabled |
| Default Standby | 2 hours with no charging or discharging; configurable in Jackery app |
| Battery Expansion | Up to 5 × Battery Pack 3600 per station; 21,504Wh nominal total including the base station |
| Two-Station Operation | Requires 2 HomePower 3600 Plus units and Jackery Connector; up to 7,200W combined at 120/240V; solar charging only while paralleled |
| App Connectivity | Wi-Fi / Bluetooth; 2.4GHz Wi-Fi, not 5GHz |
| Battery Saving Mode | Capacity-limiting mode in the app; unavailable when expansion batteries are connected per station manual |
| Quiet Charging Mode | Reduces charging power and speed to reduce noise |
| Station Dimensions | 15.2 × 12.2 × 19.3 in / 38.5 × 30.9 × 49.1cm |
| Station Weight | Approximately 77.16 lb / 35kg; excludes panels, batteries and accessories |
| Portability | Built-in wheels and retractable handle |
| Cycle Life | 6,000 cycles to at least 70% capacity |
| Charging Temperature | −4–113°F / −20–45°C |
| Discharging Temperature | −4–113°F / −20–45°C |
| Station Weather Protection | Not waterproof or dustproof; keep dry and maintain ventilation |
| Station Warranty | 3-year standard warranty; 2-year extension subject to Jackery registration and eligibility terms |
| Included Solar Set | 1 × SolarSaga 500 X / JS500A; six interconnected folding modules |
| 500 X STC Rated Power | 500W ±5%; standard test conditions |
| 500 X STC Electrical Ratings | 41.7V Vmp, 12A Imp, 48.5V Voc; ±5% |
| 500 X BNPI Test Values | 545W ±5%, 42.5V Vmp, 12.84A Imp, 49.2V Voc; bifacial test conditions, not guaranteed real-world output |
| 500 X Cell Efficiency | 25% per manufacturer; not a guaranteed system charging efficiency |
| 500 X Folded Dimensions | 39.2 × 20.7 × 3.8 in / 996 × 526 × 97mm |
| 500 X Unfolded Dimensions | 98.1 × 39.2 × 11.6 in / 2,493 × 996 × 294mm |
| 500 X Panel Weight | 23.1 lb ±1.1 lb / 10.5kg ±0.5kg; set only |
| 500 X Cable | 5m / 16.4ft charging cable; Anderson connection and supplied adapter arrangement |
| 500 X Weather Protection | IP68; −40–85°C; the station and battery pack must remain dry |
| Included Components | 1 × HomePower 3600 Plus, 1 × AC charging cable and station user manual; 1 × SolarSaga 500 X six-module set, 5m charging cable, DC8020/Anderson adapter arrangement, stakes, storage bag and panel guide |
| Package Configuration | Station + SolarSaga 500 X |
| Selected variant SKU | 60-360050-US00073 |
